Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGW2E122MELB50CAP ALUM 1200UF 20% 250V SNAP TH |
297 |
|
Datasheet |
LGW | Bulk | Active | 1200 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.45 A @ 120 Hz | 5.175 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LGG2G391MELB35CAP ALUM 390UF 20% 400V SNAP TH |
101 |
|
Datasheet |
LGG | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
PES227MKP4110QE4CAP ALUM 1100UF 63V SMD |
1,207 |
|
Datasheet |
PES227 | Tray | Active | 1100 µF | -10%, +30% | 63 V | 76mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 5.215 A @ 100 Hz | 15.496 A @ 100 kHz | - | - | 1.693" L x 0.709" W (43.00mm x 18.00mm) | 0.697" (17.70mm) | 1.994" L x 0.610" W (50.65mm x 15.50mm) | Surface Mount | |
|
381LQ561M400A042CAP ALUM 560UF 20% 400V SNAP TH |
966 |
|
Datasheet |
381LQ | Bulk | Active | 560 µF | ±20% | 400 V | 326mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.66 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALF70C471DF450CAP ALUM 470UF 20% 450V PRESS |
855 |
|
Datasheet |
ALF70 | Bulk | Active | 470 µF | ±20% | 450 V | 299mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.54 A @ 100 Hz | 6.07 A @ 10 kHz | 167 mOhms | 0.886" (22.50mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole, Press-Fit | |
|
ELXS3B1VSN821MR50SCAP ALUM 820UF 20% 315V SNAP TH |
289 |
|
Datasheet |
LXS | Bulk | Active | 820 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.51 A @ 120 Hz | 3.5893 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|

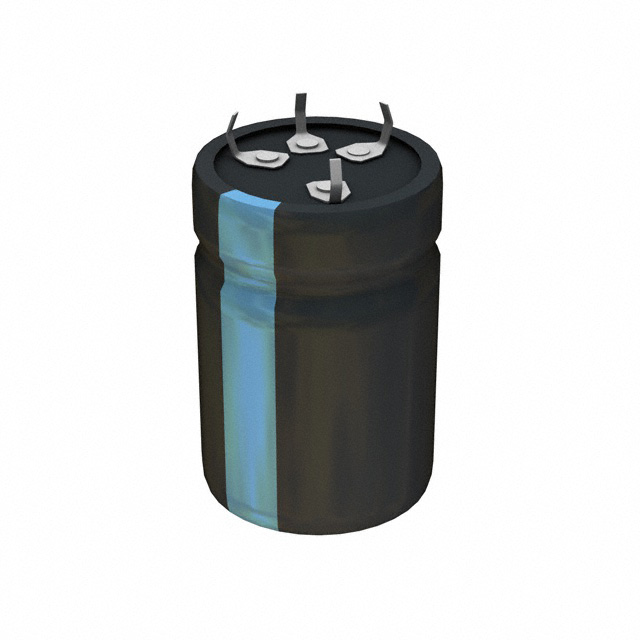

382LX561M400A052CAP ALUM 560UF 20% 400V SNAP TH |
1,094 |
|
Datasheet |
382LX | Bulk | Active | 560 µF | ±20% | 400 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | - | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
B43544F2108M000CAP ALUM 1000UF 20% 250V SNAP TH |
488 |
|
Datasheet |
B43544 | Tray | Active | 1000 µF | ±20% | 250 V | 70mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.11 A @ 100 Hz | - | 100 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

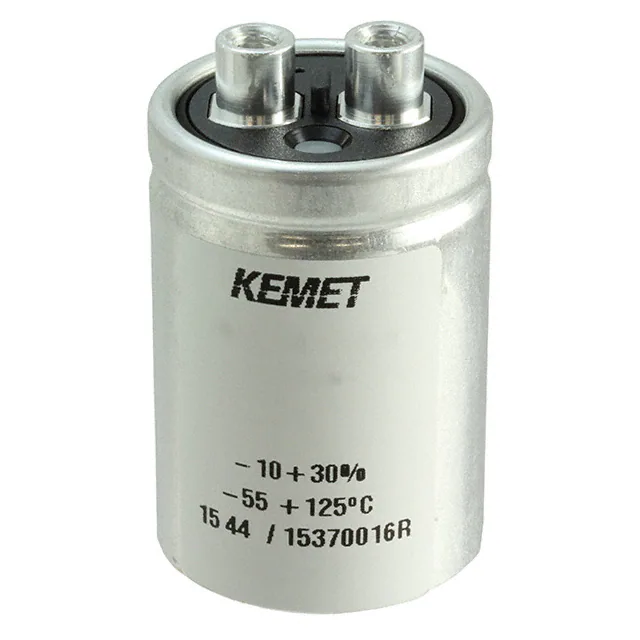

PEH205GA5180QU0CAP ALUM 18000UF 16V SCREW CHAS |
136 |
|
Datasheet |
PEH205 | Bulk | Active | 18000 µF | -10%, +30% | 16 V | 23mOhm @ 100Hz | 4000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | General Purpose | 6.2 A @ 100 Hz | - | 16 mOhms | 0.512" (13.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Chassis Mount | |
|
MAL215836103E3CAP ALUM 10000UF 20% 25V SNAP TH |
996 |
|
Datasheet |
158 PUL-SI | Bulk | Active | 10000 µF | ±20% | 25 V | 64mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.65 A @ 100 Hz | - | 55 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LKX2G331MESA50CAP ALUM 330UF 20% 400V SNAP TH |
200 |
|
Datasheet |
LKX | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 1.44 A @ 120 Hz | 2.0592 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL215759101E3CAP ALUM 100UF 20% 500V SNAP TH |
447 |
|
Datasheet |
157 PUM-SI | Bulk | Active | 100 µF | ±20% | 500 V | 1.67Ohm @ 100Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | Audio | - | - | 1.39 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70A331DC450CAP ALUM 330UF 20% 450V SNAP TH |
626 |
|
Datasheet |
ALC70 | Bulk | Active | 330 µF | ±20% | 450 V | 426.8mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.97 A @ 100 Hz | 4.64 A @ 10 kHz | 241 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

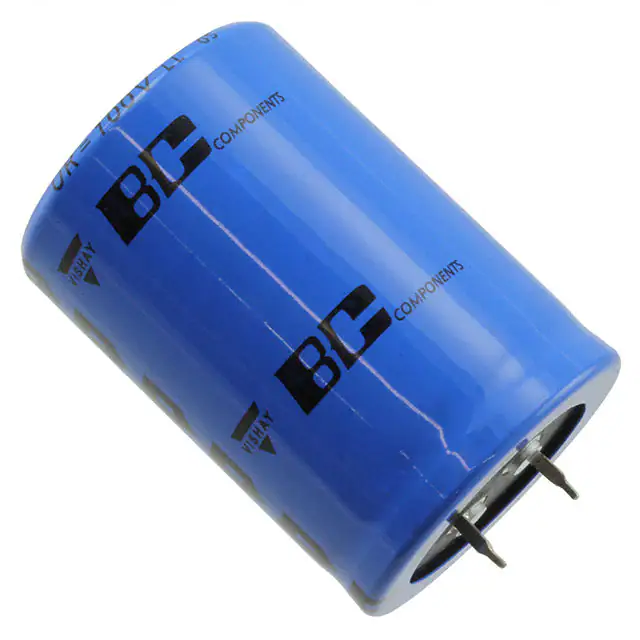

MAL205858332E3CAP ALUM 3300UF 20% 63V SNAP TH |
577 |
|
Datasheet |
058 PLL-SI | Bulk | Active | 3300 µF | ±20% | 63 V | 70mOhm @ 100Hz | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.07 A @ 100 Hz | - | 50 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
B43505C5157M000CAP ALUM 150UF 20% 450V SNAP TH |
103 |
|
Datasheet |
B43505 | Bulk | Not For New Designs | 150 µF | ±20% | 450 V | 910mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 990 mA @ 100 Hz | - | 1.07 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

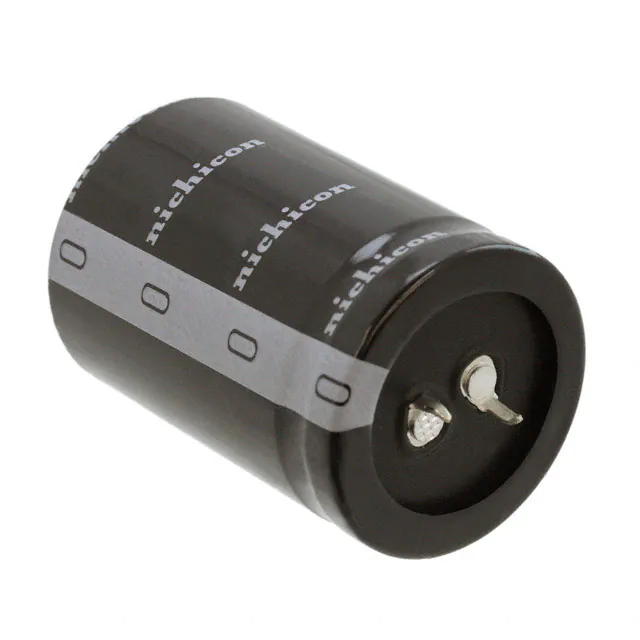

LLS1H183MELCCAP ALUM 18000UF 20% 50V SNAP TH |
972 |
|
Datasheet |
LLS | Bulk | Active | 18000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.14 A @ 120 Hz | 8.211 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGW2G561MELC45CAP ALUM 560UF 20% 400V SNAP TH |
134 |
|
Datasheet |
LGW | Bulk | Active | 560 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.18 A @ 120 Hz | 4.5474 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
B43505C9157M000CAP ALUM 150UF 20% 400V SNAP TH |
499 |
|
Datasheet |
B43505 | Bulk | Not For New Designs | 150 µF | ±20% | 400 V | 590mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 940 mA @ 100 Hz | - | 730 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGN2V821MELC45CAP ALUM 820UF 20% 350V SNAP TH |
275 |
|
Datasheet |
LGN | Bulk | Active | 820 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.717 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGG2W471MELC40CAP ALUM 470UF 20% 450V SNAP TH |
109 |
|
Datasheet |
LGG | Bulk | Active | 470 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
