Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGG2E122MELC35CAP ALUM 1200UF 20% 250V SNAP TH |
199 |
|
Datasheet |
LGG | Bulk | Active | 1200 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 3.3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
ALC70A102DD250CAP ALUM 1000UF 20% 250V SNAP TH |
0 |
|
Datasheet |
ALC70 | Bulk | Active | 1000 µF | ±20% | 250 V | 187.7mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.09 A @ 100 Hz | 6.12 A @ 10 kHz | 111 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALH82A151DC550CAP ALUM 150UF 20% 550V SNAP TH |
361 |
|
Datasheet |
ALH82 | Tray | Active | 150 µF | ±20% | 550 V | 872mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.64 A @ 100 Hz | 4.3 A @ 10 kHz | 600 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGN2G471MELB45CAP ALUM 470UF 20% 400V SNAP TH |
155 |
|
Datasheet |
LGN | Bulk | Active | 470 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.4024 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
SLPX561M400H7P3CAP ALUM 560UF 20% 400V SNAP TH |
2,742 |
|
Datasheet |
SLPX | Bulk | Active | 560 µF | ±20% | 400 V | 355mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.85 A @ 120 Hz | 4.19 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
ALC10C471EE400CAP ALUM 470UF 20% 400V SNAP TH |
1,018 |
|
Datasheet |
ALC10 | Box | Active | 470 µF | ±20% | 400 V | 258mOhm @ 100Hz | 18000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3 A @ 100 Hz | 5.49 A @ 10 kHz | 168 mOhms | 0.886" (22.50mm) | 1.575" Dia (40.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
450MXK390MEFCSN22X60CAP ALUM 390UF 20% 450V SNAP TH |
180 |
|
Datasheet |
MXK | Bulk | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 120 Hz | 2.898 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.441" (62.00mm) | - | Through Hole | |
|
EKMR251VSN182MA45SCAP ALUM 1800UF 20% 250V SNAP TH |
398 |
|
Datasheet |
KMR | Bulk | Active | 1800 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.72 A @ 120 Hz | 4.08 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
B43644F2108M000CAP ALUM 1000UF 20% 250V SNAP TH |
160 |
|
Datasheet |
B43644 | Bulk | Active | 1000 µF | ±20% | 250 V | 90mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.56 A @ 100 Hz | - | 140 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALA8DA361DC450CAP ALUM 360UF 20% 450V SNAP TH |
323 |
|
Datasheet |
ALA8D | Bulk | Active | 360 µF | ±20% | 450 V | 386mOhm @ 100Hz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.12 A @ 100 Hz | 4.12 A @ 10 kHz | 481.2 mOhms | - | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43545B5397M000CAP ALUM 390UF 20% 450V SNAP TH |
125 |
|
Datasheet |
B43545 | Tray | Active | 390 µF | ±20% | 450 V | 230mOhm @ 100Hz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.39 A @ 100 Hz | - | 360 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
160MXG2200MEFCSN30X45CAP ALUM 2200UF 20% 160V SNAP TH |
168 |
|
Datasheet |
MXG | Bulk | Active | 2200 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 4.35 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LQSW6331MELB35CAP ALUM 330UF 20% 420V SNAP TH |
113 |
|
Datasheet |
LQS | Bulk | Active | 330 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.0306 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL205658222E3CAP ALUM 2200UF 20% 63V SNAP TH |
828 |
|
Datasheet |
056 PSM-SI | Bulk | Active | 2200 µF | ±20% | 63 V | 79mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 2.32 A @ 100 Hz | - | 59 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGW2G391MELB45CAP ALUM 390UF 20% 400V SNAP TH |
212 |
|
Datasheet |
LGW | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.52 A @ 120 Hz | 3.6036 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|

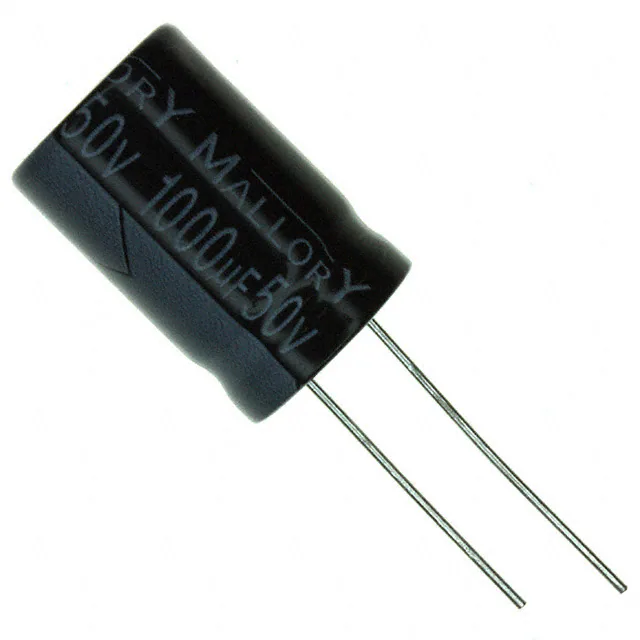

SK102M050STCAP ALUM 1000UF 20% 50V RADIAL |
410 |
|
Datasheet |
SK | Bulk | Active | 1000 µF | ±20% | 50 V | 130mOhm | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGL2G271MELA30CAP ALUM 270UF 20% 400V SNAP TH |
336 |
|
Datasheet |
LGL | Bulk | Active | 270 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.3013 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALA7DA561DD400CAP ALUM 560UF 20% 400V SNAP TH |
934 |
|
Datasheet |
ALA7D | Bulk | Active | 560 µF | ±20% | 400 V | 318.6mOhm @ 100Hz | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | AEC-Q200 | Automotive | 1.95 A @ 100 Hz | 4.48 A @ 10 kHz | 247 mOhms | - | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
678D108M040ER4DCAP ALUM 1000UF 20% 40V RADIAL |
204 |
|
Datasheet |
678D | Bulk | Active | 1000 µF | ±20% | 40 V | 80mOhm @ 20Hz | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.232 A @ 120 Hz | 1.76 A @ 100 kHz | 35 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
400MXK680MEFCSN35X35CAP ALUM 680UF 20% 400V SNAP TH |
557 |
|
Datasheet |
MXK | Tray | Active | 680 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.8 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
