Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

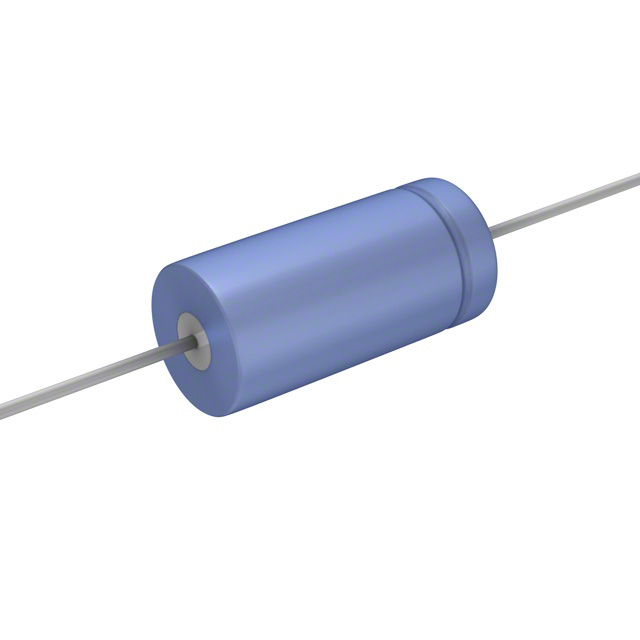

WBR25-25ACAP ALUM 25UF 25V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 25 µF | -10%, +150% | 25 V | 19Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 31 mA @ 120 Hz | 35.65 mA @ 100 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|

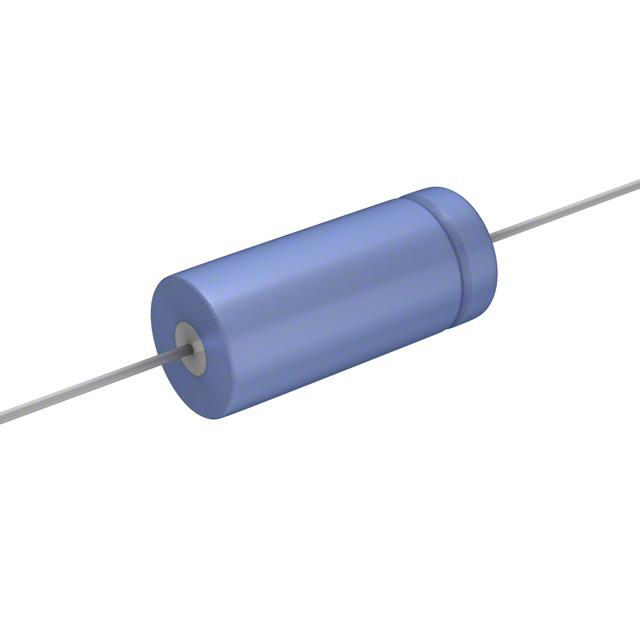

WBR25-50ACAP ALUM 25UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 25 µF | -10%, +150% | 50 V | 15.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 40.25 mA @ 100 kHz | - | - | 0.340" Dia x 0.760" L (8.64mm x 19.30mm) | - | - | Through Hole | |
|

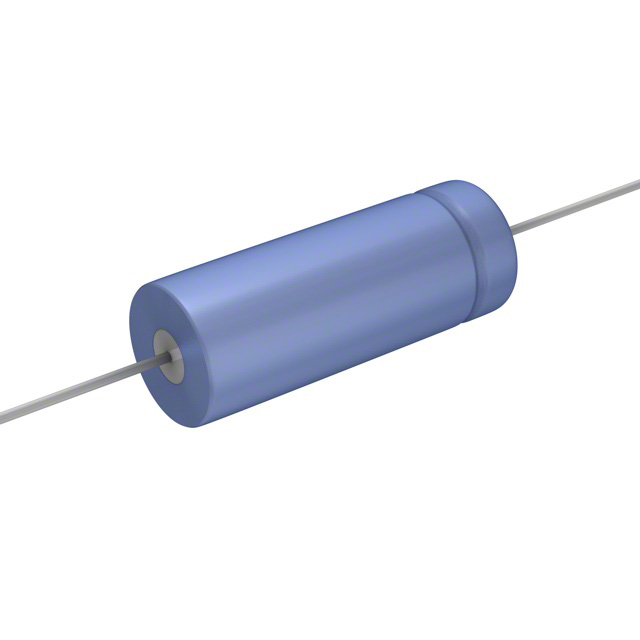

WBR250-16ACAP ALUM 250UF 16V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 250 µF | -10%, +150% | 16 V | 2.1Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 118 mA @ 120 Hz | 135.7 mA @ 100 kHz | - | - | 0.340" Dia x 0.880" L (8.64mm x 22.35mm) | - | - | Through Hole | |
|

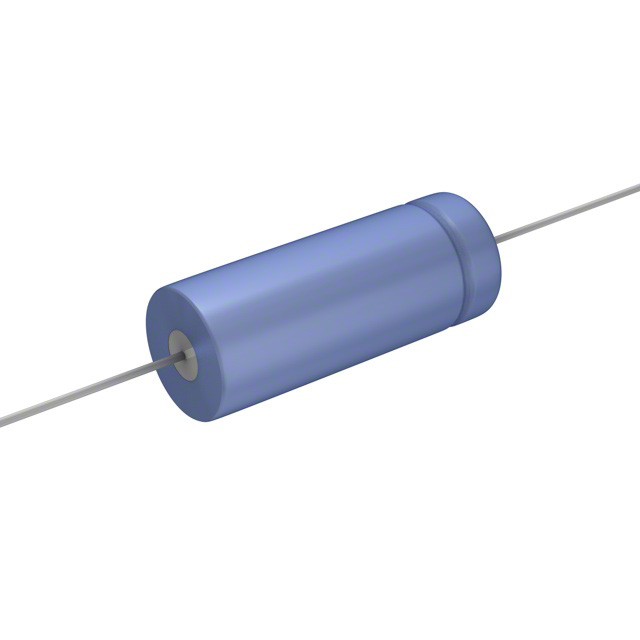

WBR250-25ACAP ALUM 250UF 25V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 250 µF | -10%, +150% | 25 V | 1.8Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 178.25 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|

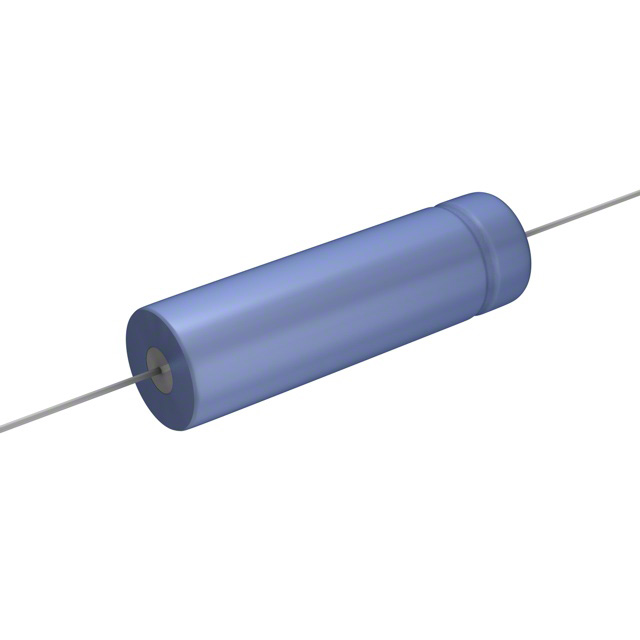

WBR275-75ACAP ALUM 275UF 75V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 275 µF | -10%, +100% | 75 V | 1.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 336 mA @ 100 kHz | - | - | 0.520" Dia x 1.570" L (13.21mm x 39.88mm) | - | - | Through Hole | |
|

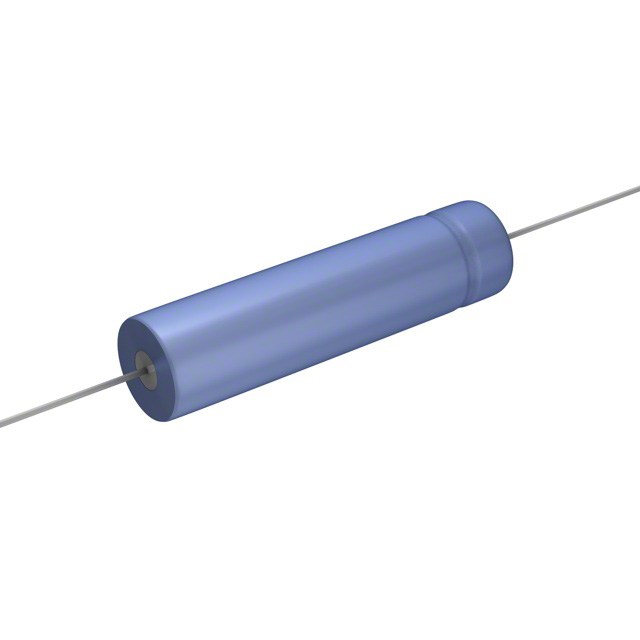

WBR30-150ACAP ALUM 30UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 30 µF | -10%, +100% | 150 V | 10.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 102 mA @ 100 kHz | - | - | 0.400" Dia x 1.570" L (10.16mm x 39.88mm) | - | - | Through Hole | |
|
|
WBR30-250ACAP ALUM 30UF 250V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 30 µF | -10%, +100% | 250 V | 8.4Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 136.5 mA @ 100 kHz | - | - | 0.520" Dia x 1.570" L (13.21mm x 39.88mm) | - | - | Through Hole | |
|

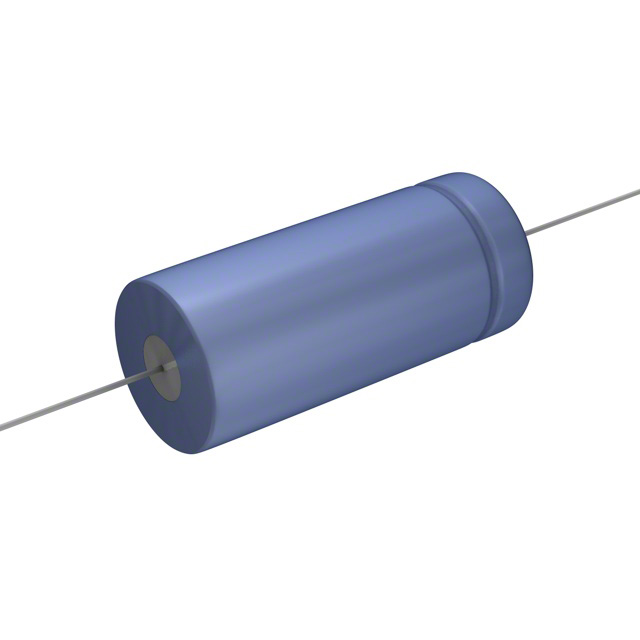

WBR30-450ACAP ALUM 30UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 30 µF | -10%, +50% | 450 V | 6.7Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 169 mA @ 100 kHz | - | - | 0.740" Dia x 1.690" L (18.80mm x 42.93mm) | - | - | Through Hole | |
|

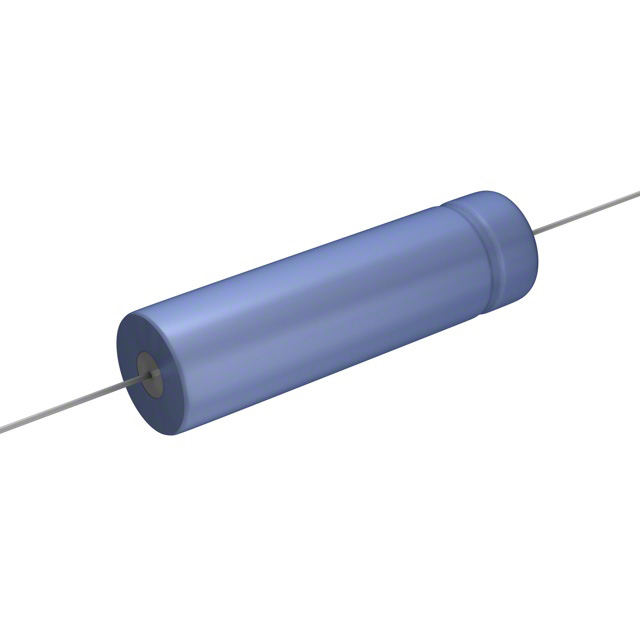

WBR3000-16ACAP ALUM 3000UF 16V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 3000 µF | -10%, +150% | 16 V | 180mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 820 mA @ 120 Hz | 943 mA @ 100 kHz | - | - | 0.520" Dia x 1.830" L (13.21mm x 46.48mm) | - | - | Through Hole | |
|
|
WBR3000-35ACAP ALUM 3000UF 35V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 3000 µF | -10%, +150% | 35 V | 150mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.323 A @ 100 kHz | - | - | 0.740" Dia x 1.690" L (18.80mm x 42.93mm) | - | - | Through Hole | |
|
|
WBR4-150ACAP ALUM 4UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 4 µF | -10%, +100% | 150 V | 78Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 21.6 mA @ 100 kHz | - | - | 0.340" Dia x 0.880" L (8.64mm x 22.35mm) | - | - | Through Hole | |
|
|
WBR4-250ACAP ALUM 4UF 250V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 4 µF | -10%, +100% | 250 V | 64Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 45.5 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|
|
WBR4-350ACAP ALUM 4UF 350V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 4 µF | -10%, +100% | 350 V | 51Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 36 mA @ 120 Hz | 46.8 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|
|
WBR4-450ACAP ALUM 4UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 4 µF | -10%, +50% | 450 V | 51Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 49.4 mA @ 100 kHz | - | - | 0.470" Dia x 1.570" L (11.94mm x 39.88mm) | - | - | Through Hole | |
|

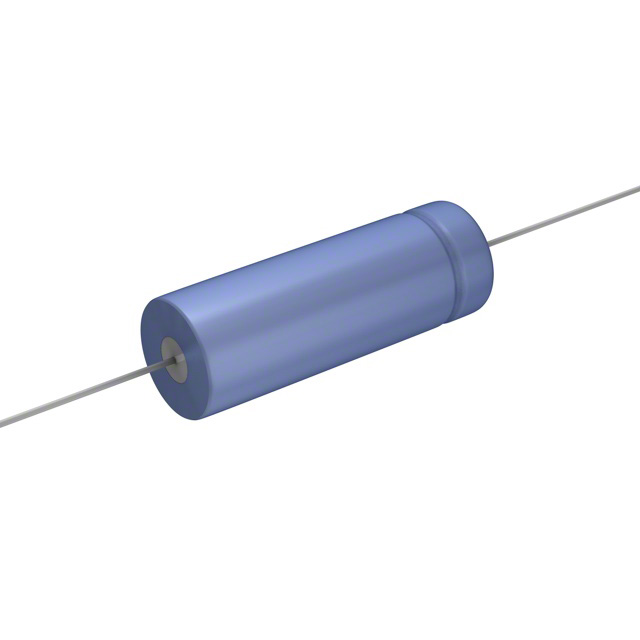

WBR40-150ACAP ALUM 40UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 40 µF | -10%, +100% | 150 V | 7.8Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 96 mA @ 120 Hz | 115.2 mA @ 100 kHz | - | - | 0.470" Dia x 1.320" L (11.94mm x 33.53mm) | - | - | Through Hole | |
|
|
WBR40-250ACAP ALUM 40UF 250V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 40 µF | -10%, +100% | 250 V | 6.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 125 mA @ 120 Hz | 162.5 mA @ 100 kHz | - | - | 0.520" Dia x 1.830" L (13.21mm x 46.48mm) | - | - | Through Hole | |
|

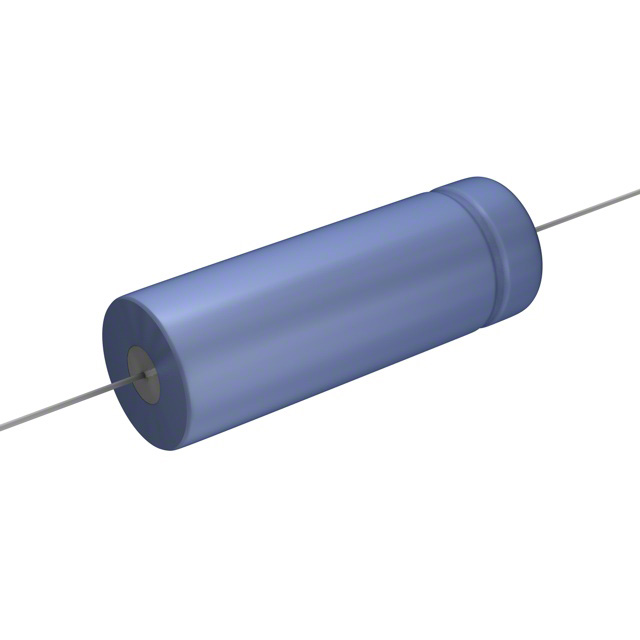

WBR4000-16ACAP ALUM 4000UF 16V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 4000 µF | -10%, +150% | 16 V | 130mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.15 A @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
|
WBR5-150ACAP ALUM 5UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 5 µF | -10%, +100% | 150 V | 62Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 24 mA @ 100 kHz | - | - | 0.340" Dia x 0.880" L (8.64mm x 22.35mm) | - | - | Through Hole | |
|
|
WBR5-450ACAP ALUM 5UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 5 µF | -10%, +50% | 450 V | 40Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 42 mA @ 120 Hz | 54.6 mA @ 100 kHz | - | - | 0.470" Dia x 1.570" L (11.94mm x 39.88mm) | - | - | Through Hole | |
|
|
WBR5-50ACAP ALUM 5UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 5 µF | -10%, +150% | 50 V | 77Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 14 mA @ 120 Hz | 16.1 mA @ 100 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole |
