Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WBR50-250ACAP ALUM 50UF 250V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 50 µF | -10%, +100% | 250 V | 5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 182 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
WBR50-25ACAP ALUM 50UF 25V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 50 µF | -10%, +150% | 25 V | 9.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 44 mA @ 120 Hz | 50.6 mA @ 100 kHz | - | - | 0.340" Dia x 0.760" L (8.64mm x 19.30mm) | - | - | Through Hole | |
|

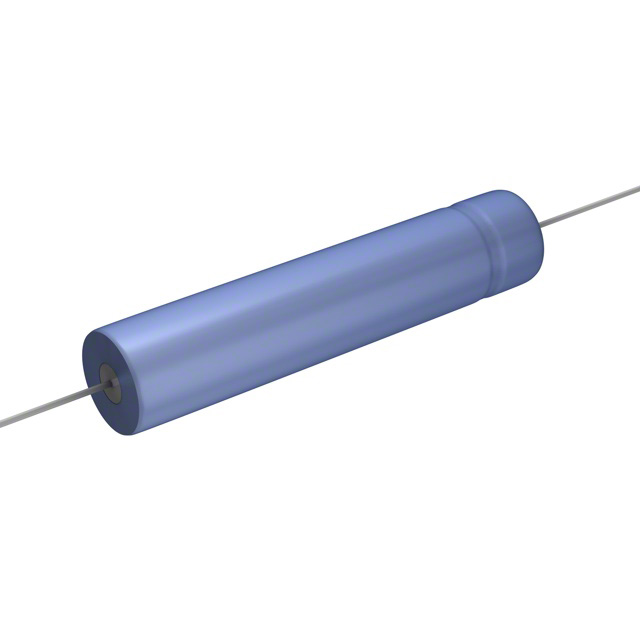

WBR50-50ACAP ALUM 50UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 50 µF | -10%, +150% | 50 V | 7.7Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 69 mA @ 100 kHz | - | - | 0.400" Dia x 1.880" L (10.16mm x 47.75mm) | - | - | Through Hole | |
|
WBR500-16ACAP ALUM 500UF 16V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 500 µF | -10%, +150% | 16 V | 1.1Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 310.5 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|

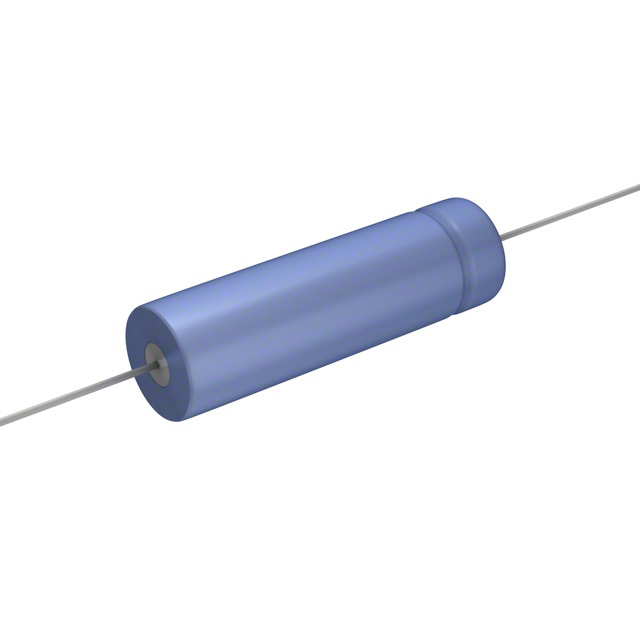

WBR500-25ACAP ALUM 500UF 25V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 500 µF | -10%, +150% | 25 V | 950mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 322 mA @ 100 kHz | - | - | 0.400" Dia x 1.320" L (10.16mm x 33.53mm) | - | - | Through Hole | |
|

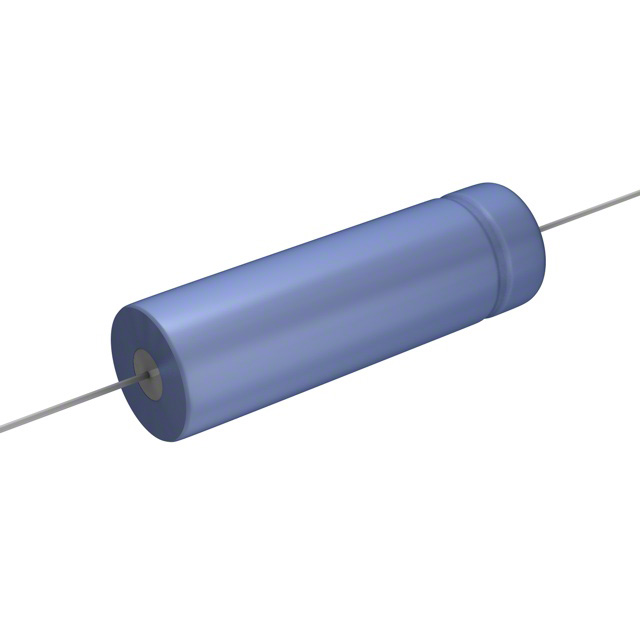

WBR500-35ACAP ALUM 500UF 35V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 500 µF | -10%, +150% | 35 V | 870mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 285 mA @ 120 Hz | 327.75 mA @ 100 kHz | - | - | 0.520" Dia x 1.673" L (13.21mm x 42.49mm) | - | - | Through Hole | |
|
|
WBR500-75ACAP ALUM 500UF 75V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 500 µF | -10%, +100% | 75 V | 720mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 480 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
|
WBR5000-16ACAP ALUM 5000UF 16V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 5000 µF | -10%, +150% | 16 V | 110mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 1.38 A @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|

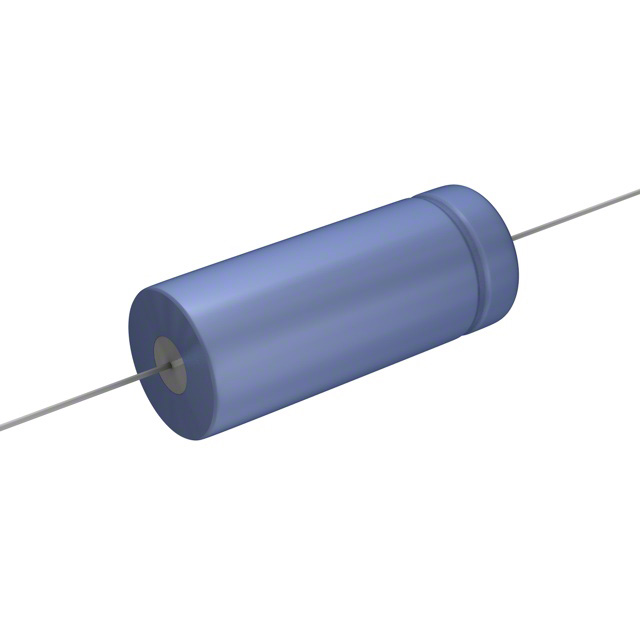

WBR60-150ACAP ALUM 60UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 60 µF | -10%, +100% | 150 V | 5.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 156 mA @ 100 kHz | - | - | 0.650" Dia x 1.570" L (16.51mm x 39.88mm) | - | - | Through Hole | |
|
|
WBR60-250ACAP ALUM 60UF 250V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 60 µF | -10%, +100% | 250 V | 4.2Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 234 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|

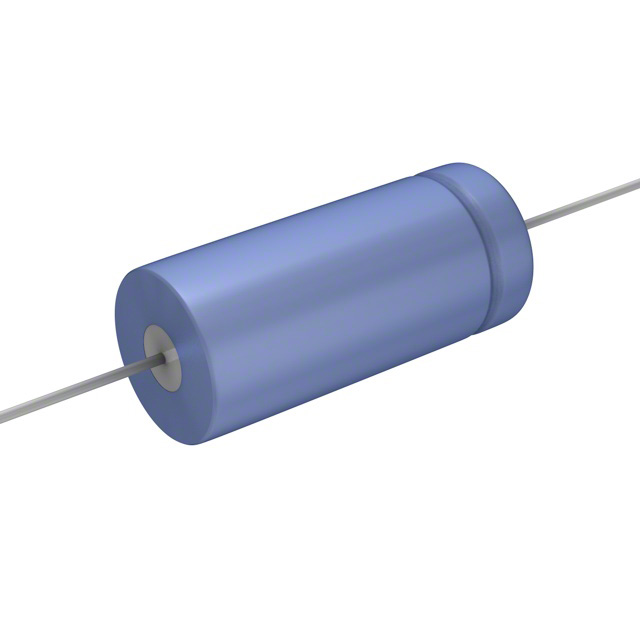

WBR8-150ACAP ALUM 8UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 8 µF | -10%, +100% | 150 V | 39Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 36 mA @ 100 kHz | - | - | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) | - | - | Through Hole | |
|
|
WBR8-250ACAP ALUM 8UF 250V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 8 µF | -10%, +100% | 250 V | 32Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 72.8 mA @ 100 kHz | - | - | 0.400" Dia x 1.320" L (10.16mm x 33.53mm) | - | - | Through Hole | |
|
WBR8-350ACAP ALUM 8UF 350V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 8 µF | -10%, +100% | 350 V | 26Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 65 mA @ 100 kHz | - | - | 0.470" Dia x 1.320" L (11.94mm x 33.53mm) | - | - | Through Hole | |
|
WBR8-450ACAP ALUM 8UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 8 µF | -10%, +50% | 450 V | 26Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 53 mA @ 120 Hz | 68.9 mA @ 100 kHz | - | - | 0.470" Dia x 1.570" L (11.94mm x 39.88mm) | - | - | Through Hole | |
|
|
WBR80-150ACAP ALUM 80UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 80 µF | -10%, +100% | 150 V | 3.9Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 186 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
AFC105M35B12B-FCAP ALUM 1UF 20% 35V SMD |
0 |
|
Datasheet |
AFC | Bulk | Discontinued at Digi-Key | 1 µF | ±20% | 35 V | 199Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AFC105M50B12B-FCAP ALUM 1UF 20% 50V SMD |
0 |
|
Datasheet |
AFC | Bulk | Discontinued at Digi-Key | 1 µF | ±20% | 50 V | 199Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 22.5 mA @ 120 Hz | 30 mA @ 100 kHz | 5 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AFC106M16B12B-FCAP ALUM 10UF 20% 16V SMD |
0 |
|
Datasheet |
AFC | Bulk | Discontinued at Digi-Key | 10 µF | ±20% | 16 V | 26.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 45 mA @ 120 Hz | 60 mA @ 100 kHz | 3 Ohms | - | 0.157" Dia (4.00mm) | 0.213" (5.40mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
|
|
AFC106M35C12B-FCAP ALUM 10UF 20% 35V SMD |
0 |
|
Datasheet |
AFC | Bulk | Discontinued at Digi-Key | 10 µF | ±20% | 35 V | 19.9Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 71.25 mA @ 120 Hz | 95 mA @ 100 kHz | 1.8 Ohms | - | 0.197" Dia (5.00mm) | 0.213" (5.40mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
|
AFC106M50D16B-FCAP ALUM 10UF 20% 50V SMD |
0 |
|
Datasheet |
AFC | Bulk | Discontinued at Digi-Key | 10 µF | ±20% | 50 V | 19.9Ohm @ 120Hz | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 52.5 mA @ 120 Hz | 70 mA @ 100 kHz | 2 Ohms | - | 0.248" Dia (6.30mm) | 0.213" (5.40mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
