Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

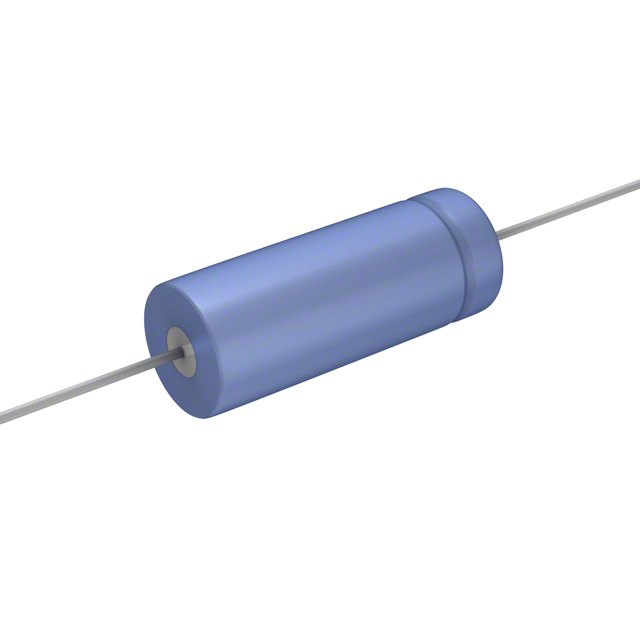

NLW100-12CAP ALUM 100UF 12V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 100 µF | -10%, +75% | 12 V | 3.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 172.5 mA @ 10 kHz | - | - | 0.320" Dia x 0.810" L (8.13mm x 20.57mm) | - | - | Through Hole | |
|
NLW100-16CAP ALUM 100UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 100 µF | -10%, +75% | 16 V | 3.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 172.5 mA @ 10 kHz | - | - | 0.340" Dia x 0.810" L (8.64mm x 20.57mm) | - | - | Through Hole | |
|
NLW100-25CAP ALUM 100UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 100 µF | -10%, +75% | 25 V | 2.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 195 mA @ 120 Hz | 224.25 mA @ 10 kHz | - | - | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) | - | - | Through Hole | |
|
NLW12-150CAP ALUM 12UF 150V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 12 µF | -10%, +75% | 150 V | 17Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 120 mA @ 10 kHz | - | - | 0.400" Dia x 1.060" L (10.16mm x 26.92mm) | - | - | Through Hole | |
|
NLW125-50CAP ALUM 125UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 125 µF | -10%, +75% | 50 V | 1.6Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 356.5 mA @ 10 kHz | - | - | 0.400" Dia x 1.570" L (10.16mm x 39.88mm) | - | - | Through Hole | |
|
NLW15-100CAP ALUM 15UF 100V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 15 µF | -10%, +75% | 100 V | 13.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 104 mA @ 120 Hz | 124.8 mA @ 10 kHz | - | - | 0.400" Dia x 0.940" L (10.16mm x 23.88mm) | - | - | Through Hole | |
|
NLW15-12CAP ALUM 15UF 12V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 15 µF | -10%, +75% | 12 V | 17.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 64.4 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW15-16CAP ALUM 15UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 15 µF | -10%, +75% | 16 V | 17.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 64.4 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW15-25CAP ALUM 15UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 15 µF | -10%, +75% | 25 V | 17.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 56 mA @ 120 Hz | 64.4 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
NLW15-50CAP ALUM 15UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 15 µF | -10%, +75% | 50 V | 13.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 68 mA @ 120 Hz | 78.2 mA @ 10 kHz | - | - | 0.320" Dia x 0.690" L (8.13mm x 17.53mm) | - | - | Through Hole | |
|
|
NLW150-16CAP ALUM 150UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 150 µF | -10%, +75% | 16 V | 2.2Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 225 mA @ 120 Hz | 258.75 mA @ 10 kHz | - | - | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) | - | - | Through Hole | |
|
|
NLW150-25CAP ALUM 150UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 150 µF | -10%, +75% | 25 V | 1.8Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 299 mA @ 10 kHz | - | - | 0.400" Dia x 1.060" L (10.16mm x 26.92mm) | - | - | Through Hole | |
|
|
NLW2-100CAP ALUM 2UF 100V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 2 µF | -10%, +75% | 100 V | 100Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 24 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW2-150CAP ALUM 2UF 150V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 2 µF | -10%, +75% | 150 V | 100Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 28 mA @ 120 Hz | 33.6 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW2-50CAP ALUM 2UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 2 µF | -10%, +75% | 50 V | 100Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 26 mA @ 120 Hz | 29.9 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW20-16CAP ALUM 20UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 20 µF | -10%, +75% | 16 V | 16.6Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 62 mA @ 120 Hz | 71.3 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW20-25CAP ALUM 20UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 20 µF | -10%, +75% | 25 V | 13.3Ohm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
NLW20-50CAP ALUM 20UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 20 µF | -10%, +75% | 50 V | 10Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 76 mA @ 120 Hz | 87.4 mA @ 10 kHz | - | - | 0.320" Dia x 0.760" L (8.13mm x 19.30mm) | - | - | Through Hole | |
|
|
NLW200-12CAP ALUM 200UF 12V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 200 µF | -10%, +75% | 12 V | 1.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 310.5 mA @ 10 kHz | - | - | 0.400" Dia x 0.940" L (10.16mm x 23.88mm) | - | - | Through Hole | |
|
|
NLW200-16CAP ALUM 200UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 200 µF | -10%, +75% | 16 V | 1.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 270 mA @ 120 Hz | 310.5 mA @ 10 kHz | - | - | 0.400" Dia x 0.940" L (10.16mm x 23.88mm) | - | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
