Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

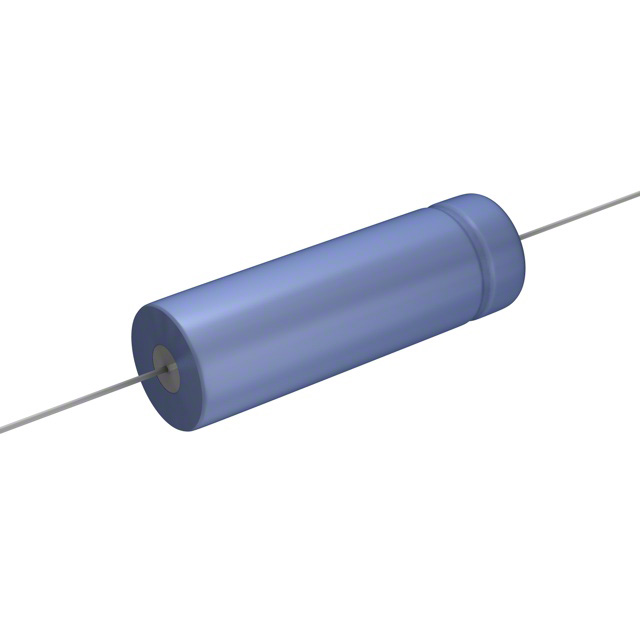

WBR1000-35ACAP ALUM 1000UF 35V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 1000 µF | -10%, +150% | 35 V | 440mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 450 mA @ 120 Hz | 517.5 mA @ 100 kHz | - | - | 0.540" Dia x 1.670" L (13.72mm x 42.42mm) | - | - | Through Hole | |
|
WBR1000-50ACAP ALUM 1000UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 1000 µF | -10%, +150% | 50 V | 390mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 530 mA @ 120 Hz | 609.5 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
|
WBR12-450ACAP ALUM 12UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 12 µF | -10%, +50% | 450 V | 17Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 62 mA @ 120 Hz | 80.6 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
WBR125-180ACAP ALUM 125UF 180V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 125 µF | -10%, +100% | 180 V | 2.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 360 mA @ 100 kHz | - | - | 0.740" Dia x 1.690" L (18.80mm x 42.93mm) | - | - | Through Hole | |
|
WBR150-35ACAP ALUM 150UF 35V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 150 µF | -10%, +150% | 35 V | 2.95Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 114 mA @ 120 Hz | 131.1 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|
|
WBR150-50ACAP ALUM 150UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 150 µF | -10%, +150% | 50 V | 2.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 160 mA @ 120 Hz | 184 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|
WBR150-75ACAP ALUM 150UF 75V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 150 µF | -10%, +100% | 75 V | 2.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 216 mA @ 100 kHz | - | - | 0.470" Dia x 1.320" L (11.94mm x 33.53mm) | - | - | Through Hole | |
|
|
WBR1500-50ACAP ALUM 1500UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 1500 µF | -10%, +150% | 50 V | 250mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 740 mA @ 120 Hz | 851 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
|
WBR16-150ACAP ALUM 16UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 16 µF | -10%, +100% | 150 V | 19.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 54 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|
WBR16-250ACAP ALUM 16UF 250V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 16 µF | -10%, +100% | 250 V | 16Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 84.5 mA @ 100 kHz | - | - | 0.470" Dia x 1.570" L (11.94mm x 39.88mm) | - | - | Through Hole | |
|
|
WBR16-450ACAP ALUM 16UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 16 µF | -10%, +50% | 450 V | 12.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 84 mA @ 120 Hz | 109.2 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
|
WBR2-450ACAP ALUM 2UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 2 µF | -10%, +50% | 450 V | 102Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 39 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|
WBR2-50ACAP ALUM 2UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 2 µF | -10%, +150% | 50 V | 195Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 12 mA @ 120 Hz | 13.8 mA @ 100 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
WBR20-150ACAP ALUM 20UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 20 µF | -10%, +100% | 150 V | 15.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 60 mA @ 100 kHz | - | - | 0.400" Dia x 1.320" L (10.16mm x 33.53mm) | - | - | Through Hole | |
|
|
WBR20-250ACAP ALUM 20UF 250V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 20 µF | -10%, +100% | 250 V | 12.5Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 75 mA @ 120 Hz | 97.5 mA @ 100 kHz | - | - | 0.470" Dia x 1.570" L (11.94mm x 39.88mm) | - | - | Through Hole | |
|
|
WBR20-350ACAP ALUM 20UF 350V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 20 µF | -10%, +100% | 350 V | 10Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 90 mA @ 120 Hz | 117 mA @ 100 kHz | - | - | 0.520" Dia x 1.570" L (13.21mm x 39.88mm) | - | - | Through Hole | |
|
|
WBR20-450ACAP ALUM 20UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 20 µF | -10%, +50% | 450 V | 10Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 105 mA @ 120 Hz | 136.5 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
|
WBR2000-16ACAP ALUM 2000UF 16V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 2000 µF | -10%, +150% | 16 V | 270mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 660 mA @ 120 Hz | 759 mA @ 100 kHz | - | - | 0.470" Dia x 1.570" L (11.94mm x 39.88mm) | - | - | Through Hole | |
|
|
WBR2000-25ACAP ALUM 2000UF 25V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 2000 µF | -10%, +150% | 25 V | 230mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 720 mA @ 120 Hz | 828 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
|
WBR2000-35ACAP ALUM 2000UF 35V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 2000 µF | -10%, +150% | 35 V | 220mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.047 A @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Frequently Asked Questions
Q1: What products are included in Aluminum Electrolytic Capacitors?
This category includes related Aluminum Electrolytic Capacitors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Aluminum Electrolytic Capacitors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Aluminum Electrolytic Capacitors and other electronic components.
