Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLW5-50CAP ALUM 5UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 5 µF | -10%, +75% | 50 V | 40Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 138 mA @ 120 Hz | 158.7 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|

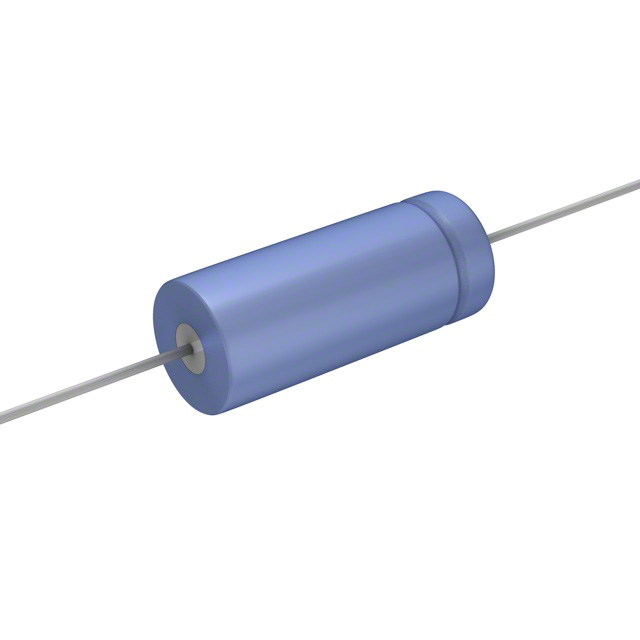

NLW50-16CAP ALUM 50UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 50 µF | -10%, +75% | 16 V | 6.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 108 mA @ 120 Hz | 124.2 mA @ 10 kHz | - | - | 0.320" Dia x 0.760" L (8.13mm x 19.30mm) | - | - | Through Hole | |
|

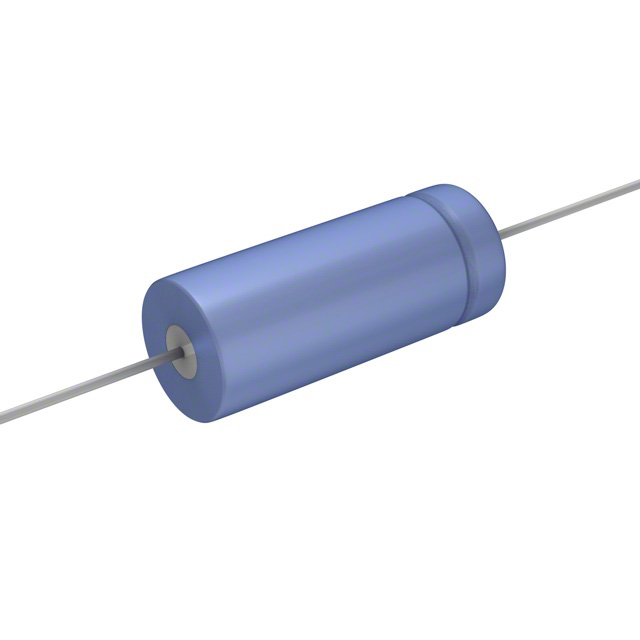

NLW50-25CAP ALUM 50UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 50 µF | -10%, +75% | 25 V | 5.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 115 mA @ 120 Hz | 132.25 mA @ 10 kHz | - | - | 0.340" Dia x 0.810" L (8.64mm x 20.57mm) | - | - | Through Hole | |
|
NLW50-50CAP ALUM 50UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 50 µF | -10%, +75% | 50 V | 4Ohm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | - | - | - | 0.400" Dia x 0.940" L (10.16mm x 23.88mm) | - | - | Through Hole | |
|
|
NLW6-50CAP ALUM 6UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 6 µF | -10%, +75% | 50 V | 33Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 39 mA @ 120 Hz | 44.85 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW75-16CAP ALUM 75UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 75 µF | -10%, +75% | 16 V | 4.5Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 136 mA @ 120 Hz | 156.4 mA @ 10 kHz | - | - | 0.340" Dia x 0.810" L (8.64mm x 20.57mm) | - | - | Through Hole | |
|
NLW75-50CAP ALUM 75UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 75 µF | -10%, +75% | 50 V | 2.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 230 mA @ 10 kHz | - | - | 0.400" Dia x 1.060" L (10.16mm x 26.92mm) | - | - | Through Hole | |
|
|
NLW8-50CAP ALUM 8UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 8 µF | -10%, +75% | 50 V | 25Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 46 mA @ 120 Hz | 52.9 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
WBR1-450ACAP ALUM 1UF 450V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 1 µF | -10%, +50% | 450 V | 205Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 23 mA @ 120 Hz | 29.9 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|
WBR1-50ACAP ALUM 1UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 1 µF | -10%, +150% | 50 V | 390Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 10 mA @ 120 Hz | 11.5 mA @ 100 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
WBR10-150ACAP ALUM 10UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 10 µF | -10%, +100% | 150 V | 31Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 34 mA @ 120 Hz | 40.8 mA @ 100 kHz | - | - | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) | - | - | Through Hole | |
|
|
WBR10-25ACAP ALUM 10UF 25V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 10 µF | -10%, +150% | 25 V | 48Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 20.7 mA @ 100 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
WBR10-50ACAP ALUM 10UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 10 µF | -10%, +150% | 50 V | 39Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 20 mA @ 120 Hz | 23 mA @ 100 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
WBR100-150ACAP ALUM 100UF 150V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 100 µF | -10%, +100% | 150 V | 3.1Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 190 mA @ 120 Hz | 228 mA @ 100 kHz | - | - | 0.650" Dia x 1.830" L (16.51mm x 46.48mm) | - | - | Through Hole | |
|
WBR100-16ACAP ALUM 100UF 16V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 100 µF | -10%, +150% | 16 V | 5.3Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 65.55 mA @ 100 kHz | - | - | 0.340" Dia x 0.760" L (8.64mm x 19.30mm) | - | - | Through Hole | |
|
|
WBR100-25ACAP ALUM 100UF 25V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 100 µF | -10%, +150% | 25 V | 4.8Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 74 mA @ 120 Hz | 85.1 mA @ 100 kHz | - | - | 0.340" Dia x 0.760" L (8.64mm x 19.30mm) | - | - | Through Hole | |
|
|
WBR100-35ACAP ALUM 100UF 35V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 100 µF | -10%, +150% | 35 V | 4.4Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 86 mA @ 120 Hz | 98.9 mA @ 100 kHz | - | - | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) | - | - | Through Hole | |
|
|
WBR100-50ACAP ALUM 100UF 50V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 100 µF | -10%, +150% | 50 V | 3.9Ohm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 161 mA @ 100 kHz | - | - | 0.400" Dia x 1.000" L (10.16mm x 25.40mm) | - | - | Through Hole | |
|
WBR1000-16ACAP ALUM 1000UF 16V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 1000 µF | -10%, +150% | 16 V | 530mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 483 mA @ 100 kHz | - | - | 0.400" Dia x 1.320" L (10.16mm x 33.53mm) | - | - | Through Hole | |
|
WBR1000-25ACAP ALUM 1000UF 25V AXIAL TH |
0 |
|
Datasheet |
WBR | Bulk | Obsolete | 1000 µF | -10%, +150% | 25 V | 480mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 450 mA @ 120 Hz | 517.5 mA @ 100 kHz | - | - | 0.470" Dia x 1.570" L (11.94mm x 39.88mm) | - | - | Through Hole |
