Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

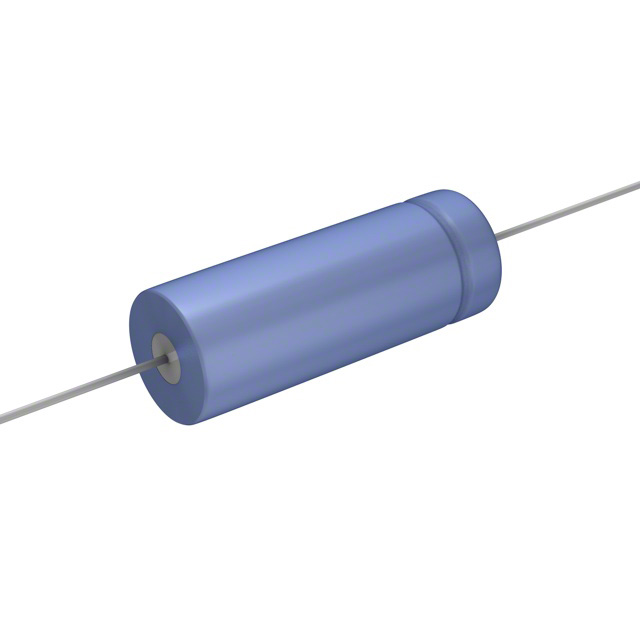

NLW200-25CAP ALUM 200UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 200 µF | -10%, +75% | 25 V | 1.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 320 mA @ 120 Hz | 368 mA @ 10 kHz | - | - | 0.400" Dia x 1.060" L (10.16mm x 26.92mm) | - | - | Through Hole | |
|

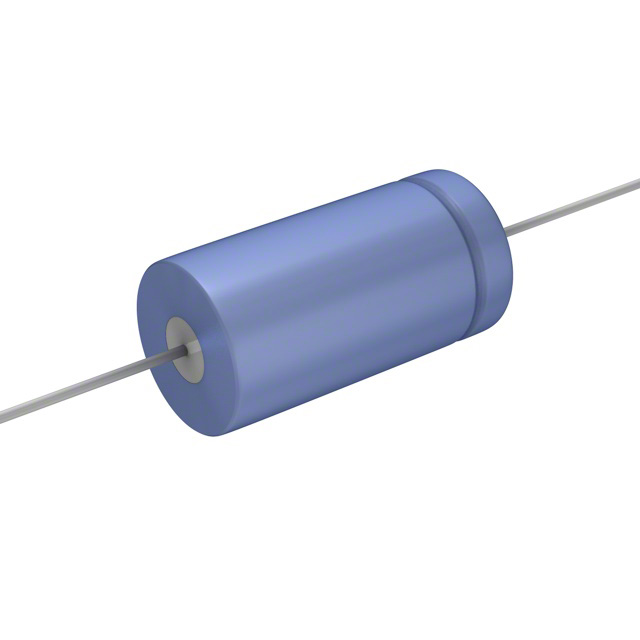

NLW200-6CAP ALUM 200UF 6.3V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 200 µF | -10%, +75% | 6.3 V | 2Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 287.5 mA @ 10 kHz | - | - | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) | - | - | Through Hole | |
|
|
NLW25-100CAP ALUM 25UF 100V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 25 µF | -10%, +75% | 100 V | 8Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 133 mA @ 120 Hz | 159.6 mA @ 10 kHz | - | - | 0.400" Dia x 1.060" L (10.16mm x 26.92mm) | - | - | Through Hole | |
|

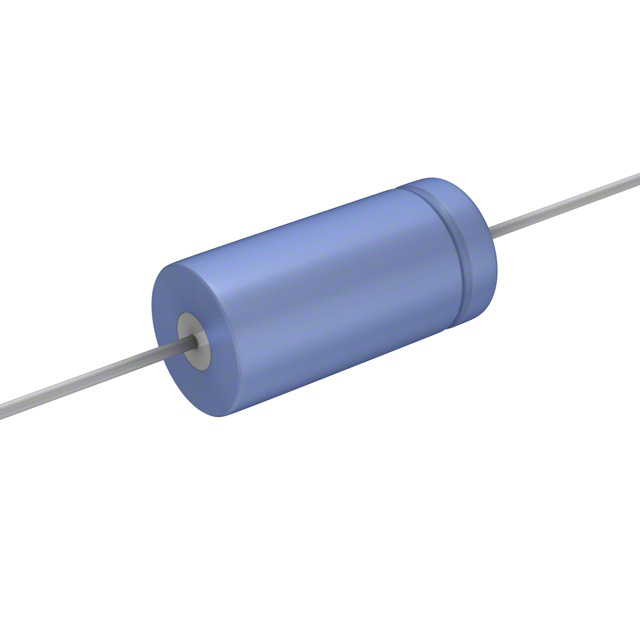

NLW25-16CAP ALUM 25UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 25 µF | -10%, +75% | 16 V | 13.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 72 mA @ 120 Hz | 82.8 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|

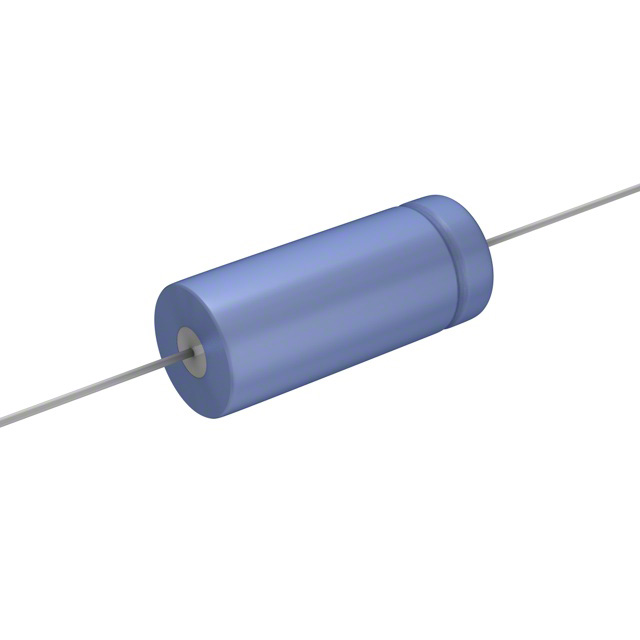

NLW250-12CAP ALUM 250UF 12V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 250 µF | -10%, +75% | 12 V | 1.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 333.5 mA @ 10 kHz | - | - | 0.400" Dia x 0.940" L (10.16mm x 23.88mm) | - | - | Through Hole | |
|
|
NLW250-16CAP ALUM 250UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 250 µF | -10%, +75% | 16 V | 1.3Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 310 mA @ 120 Hz | 356.5 mA @ 10 kHz | - | - | 0.400" Dia x 1.060" L (10.16mm x 26.92mm) | - | - | Through Hole | |
|
NLW250-25CAP ALUM 250UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 250 µF | -10%, +75% | 25 V | 1.06Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 400 mA @ 120 Hz | 460 mA @ 10 kHz | - | - | 0.400" Dia x 1.570" L (10.16mm x 39.88mm) | - | - | Through Hole | |
|
NLW3-150CAP ALUM 3UF 150V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 3 µF | -10%, +75% | 150 V | 67Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 38 mA @ 120 Hz | 45.6 mA @ 10 kHz | - | - | 0.320" Dia x 0.760" L (8.13mm x 19.30mm) | - | - | Through Hole | |
|
|
NLW3-25CAP ALUM 3UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 3 µF | -10%, +75% | 25 V | 67Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 34.5 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW3-50CAP ALUM 3UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 3 µF | -10%, +75% | 50 V | 67Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 30 mA @ 120 Hz | 34.5 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW30-16CAP ALUM 30UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 30 µF | -10%, +75% | 16 V | 11.1Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 78 mA @ 120 Hz | 89.7 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|

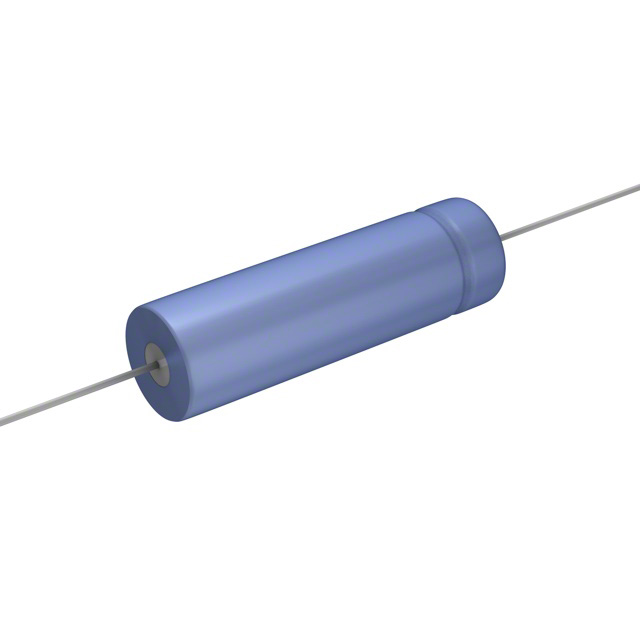

NLW300-16CAP ALUM 300UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 300 µF | -10%, +75% | 16 V | 1.1Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 370 mA @ 120 Hz | 425.5 mA @ 10 kHz | - | - | 0.400" Dia x 1.320" L (10.16mm x 33.53mm) | - | - | Through Hole | |
|
|
NLW300-25CAP ALUM 300UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 300 µF | -10%, +75% | 25 V | 830mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 483 mA @ 10 kHz | - | - | 0.400" Dia x 1.570" L (10.16mm x 39.88mm) | - | - | Through Hole | |
|

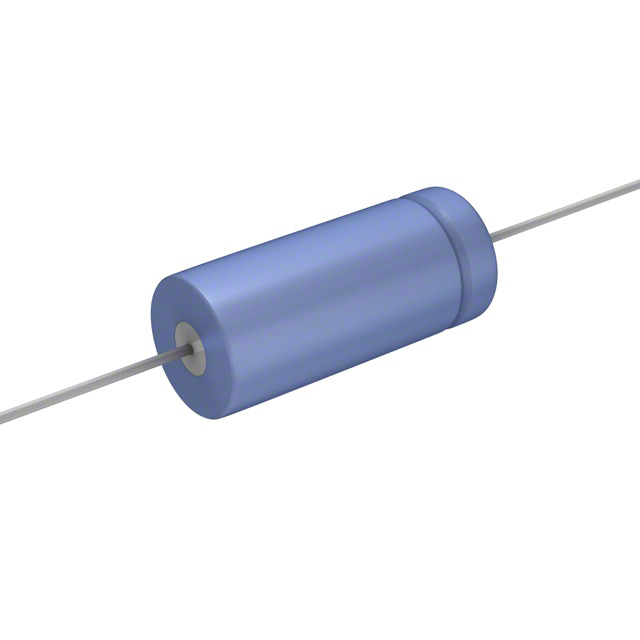

NLW35-25CAP ALUM 35UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 35 µF | -10%, +75% | 25 V | 7.6Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 94 mA @ 120 Hz | 108.1 mA @ 10 kHz | - | - | 0.340" Dia x 0.760" L (8.64mm x 19.30mm) | - | - | Through Hole | |
|
|
NLW35-50CAP ALUM 35UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 35 µF | -10%, +75% | 50 V | 5.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 130 mA @ 120 Hz | 149.5 mA @ 10 kHz | - | - | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) | - | - | Through Hole | |
|
|
NLW4-50CAP ALUM 4UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 4 µF | -10%, +75% | 50 V | 50Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 34 mA @ 120 Hz | 39.1 mA @ 10 kHz | - | - | 0.280" Dia x 0.570" L (7.11mm x 14.49mm) | - | - | Through Hole | |
|
|
NLW40-25CAP ALUM 40UF 25V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 40 µF | -10%, +75% | 25 V | 6.7Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 98 mA @ 120 Hz | 112.7 mA @ 10 kHz | - | - | 0.340" Dia x 0.760" L (8.64mm x 19.30mm) | - | - | Through Hole | |
|
|
NLW40-50CAP ALUM 40UF 50V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 40 µF | -10%, +75% | 50 V | 5Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 138 mA @ 120 Hz | 158.7 mA @ 10 kHz | - | - | 0.400" Dia x 0.880" L (10.16mm x 22.35mm) | - | - | Through Hole | |
|
|
NLW400-16CAP ALUM 400UF 16V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 400 µF | -10%, +75% | 16 V | 830mOhm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 470 mA @ 120 Hz | 540.5 mA @ 10 kHz | - | - | 0.400" Dia x 1.570" L (10.16mm x 39.88mm) | - | - | Through Hole | |
|

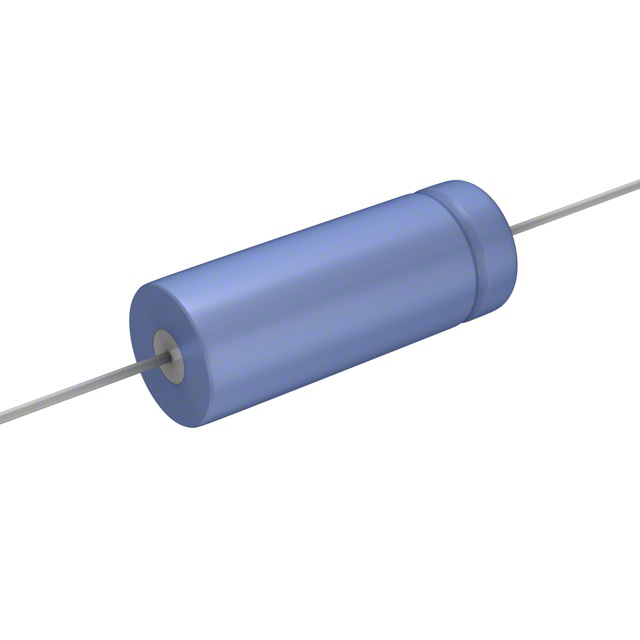

NLW5-150CAP ALUM 5UF 150V AXIAL TH |
0 |
|
Datasheet |
NLW | Bulk | Obsolete | 5 µF | -10%, +75% | 150 V | 40Ohm @ 120Hz | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 49 mA @ 120 Hz | 58.8 mA @ 10 kHz | - | - | 0.340" Dia x 0.880" L (8.64mm x 22.35mm) | - | - | Through Hole |
