Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGG2G331MELB30CAP ALUM 330UF 20% 400V SNAP TH |
170 |
|
Datasheet |
LGG | Bulk | Active | 330 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.15 A @ 120 Hz | 1.6445 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
EKMQ161VSN272MA40SCAP ALUM 2700UF 20% 160V SNAP TH |
1,254 |
|
Datasheet |
KMQ | Bulk | Active | 2700 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 3.1 A @ 120 Hz | 4.65 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
MAL211818471E3CAP ALUM 470UF 20% 63V AXIAL TH |
782 |
|
Datasheet |
118 AHT | Bulk | Active | 470 µF | ±20% | 63 V | 440mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 1.261 A @ 10 kHz | 390 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
450MXG220MEFCSN30X30CAP ALUM 220UF 20% 450V SNAP TH |
139 |
|
Datasheet |
MXG | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.5525 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
UCY2W121MHD6CAP ALUM 120UF 20% 450V RADIAL |
169 |
|
Datasheet |
UCY | Bulk | Active | 120 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 945 mA @ 120 Hz | 1.89 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.870" (47.50mm) | - | Through Hole | |
|
SLP333M025H9P3CAP ALUM 33000UF 20% 25V SNAP TH |
1,446 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 33000 µF | ±20% | 25 V | 18mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | 5.55 A @ 120 Hz | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
AFK337M2AR44VT-FCAP ALUM 330UF 20% 100V SMD |
519 |
|
Datasheet |
AFK_V | Tape & Reel (TR) | Active | 330 µF | ±20% | 100 V | 150mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, Bypass, Decoupling | 687.8 mA @ 120 Hz | - | 150 mOhms | - | 0.709" Dia (18.00mm) | 0.827" (21.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|

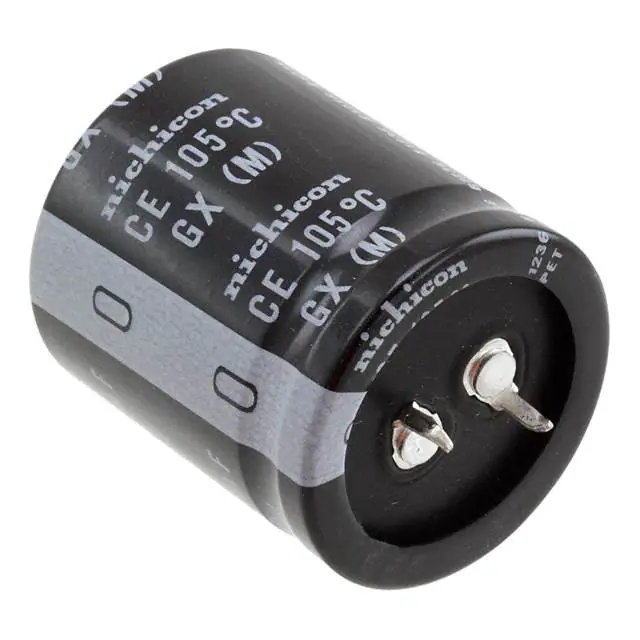

LGX2G331MELB35CAP ALUM 330UF 20% 400V SNAP TH |
166 |
|
Datasheet |
LGX | Bulk | Active | 330 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.43 A @ 120 Hz | 2.0449 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGU1K392MELACAP ALUM 3900UF 20% 80V SNAP TH |
543 |
|
Datasheet |
LGU | Bulk | Active | 3900 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.92 A @ 120 Hz | 3.358 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
EKMQ351VSN471MA30SCAP ALUM 470UF 20% 350V SNAP TH |
209 |
|
Datasheet |
KMQ | Bulk | Active | 470 µF | ±20% | 350 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.4 A @ 120 Hz | 2.002 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL211815222E3CAP ALUM 2200UF 20% 16V AXIAL TH |
774 |
|
Datasheet |
118 AHT | Bulk | Active | 2200 µF | ±20% | 16 V | 205mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | Polar | - | Automotive | - | 1.212 A @ 10 kHz | 180 mOhms | - | 0.591" Dia x 1.181" L (15.00mm x 30.00mm) | - | - | Through Hole | |
|

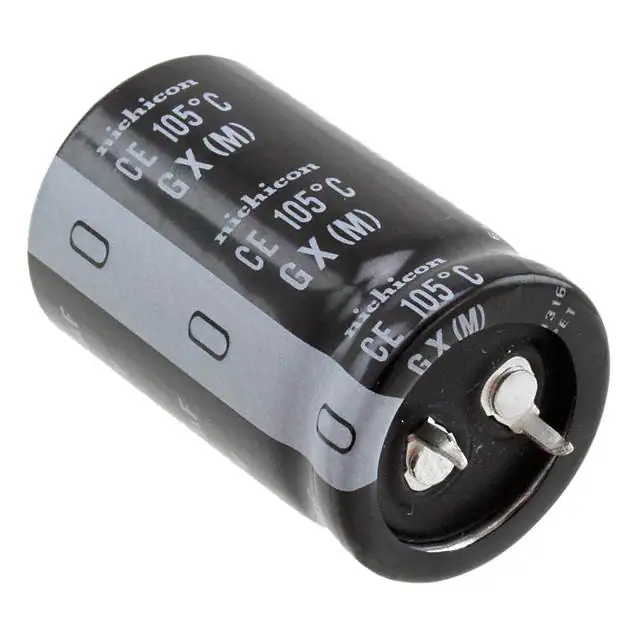

LGX2D821MELA40CAP ALUM 820UF 20% 200V SNAP TH |
190 |
|
Datasheet |
LGX | Bulk | Active | 820 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.09 A @ 120 Hz | 3.135 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
500D227M100FK2ACAP ALUM 220UF 20% 100V AXIAL TH |
264 |
|
Datasheet |
500D | Bulk | Active | 220 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | - | - | General Purpose | - | - | - | - | 0.492" Dia x 1.752" L (12.50mm x 44.50mm) | - | - | Through Hole | |
|
LLS2A332MELCCAP ALUM 3300UF 20% 100V SNAP TH |
173 |
|
Datasheet |
LLS | Bulk | Active | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.07 A @ 120 Hz | 4.6805 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL226050102E3CAP ALUM 1000UF 20% 35V RADIAL |
379 |
|
Datasheet |
260 RLA-V | Box | Active | 1000 µF | ±20% | 35 V | - | 2000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 780 mA @ 100 Hz | 1.2 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
LGU1K392MELBCAP ALUM 3900UF 20% 80V SNAP TH |
267 |
|
Datasheet |
LGU | Bulk | Active | 3900 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.12 A @ 120 Hz | 3.588 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
672D107H020CG5CCAP ALUM 100UF 20V RADIAL TH |
265 |
|
Datasheet |
672D | Bulk | Active | 100 µF | - | 20 V | - | - | -55°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.906" (23.00mm) | - | Through Hole | |
|
LLS1E273MELBCAP ALUM 27000UF 20% 25V SNAP TH |
199 |
|
Datasheet |
LLS | Bulk | Active | 27000 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.02 A @ 120 Hz | 6.923 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LX151M450K022CAP ALUM 150UF 20% 450V SNAP TH |
1,187 |
|
Datasheet |
381LX | Bulk | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 800 mA @ 120 Hz | 1.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

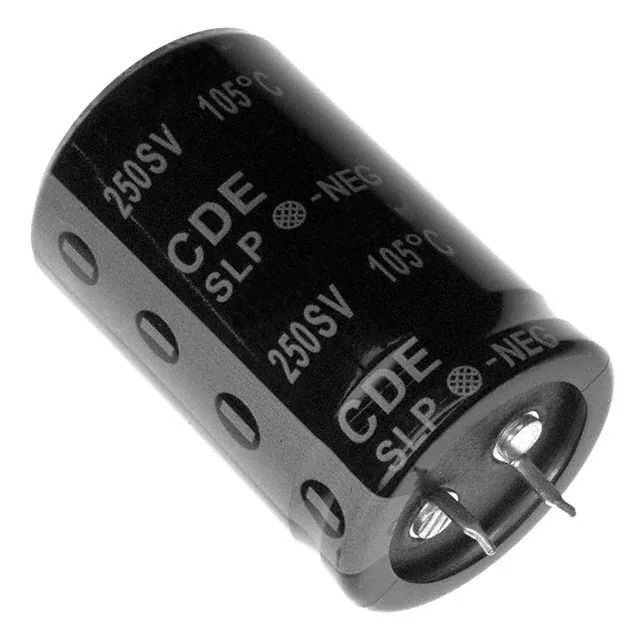

SLP122M200E4P3CAP ALUM 1200UF 20% 200V SNAP TH |
3,062 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1200 µF | ±20% | 200 V | 166mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole |
