Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGW2E821MELB35CAP ALUM 820UF 20% 250V SNAP TH |
192 |
|
Datasheet |
LGW | Bulk | Active | 820 µF | ±20% | 250 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LGR2D821MELB40CAP ALUM 820UF 20% 200V SNAP TH |
173 |
|
Datasheet |
LGR | Bulk | Active | 820 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
PEG130KL4390QE4CAP ALUM 3900UF 40V AXIAL TH |
918 |
|
Datasheet |
PEG130 | Bulk | Active | 3900 µF | -10%, +30% | 40 V | 33mOhm @ 100Hz | 45000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.18 A @ 100 Hz | 12.3 A @ 5 kHz | - | - | 0.787" Dia x 1.811" L (20.00mm x 46.00mm) | - | - | Through Hole | |
|
LGW2W221MELA45CAP ALUM 220UF 20% 450V SNAP TH |
841 |
|
Datasheet |
LGW | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
420MXK180MEFCSN25X25CAP ALUM 180UF 20% 420V SNAP TH |
730 |
|
Datasheet |
MXK | Tray | Active | 180 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.624 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LKX2D471MESZ35CAP ALUM 470UF 20% 200V SNAP TH |
237 |
|
Datasheet |
LKX | Bulk | Active | 470 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | Audio | 1.48 A @ 120 Hz | 2.22 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43548B6157M060CAP ALUM 150UF 20% 500V SNAP TH |
1,653 |
|
Datasheet |
B43548 | Bulk | Active | 150 µF | ±20% | 500 V | 460mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.41 A @ 100 Hz | - | 650 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
381LX183M016H032CAP ALUM 18000UF 20% 16V SNAP TH |
1,066 |
|
Datasheet |
381LX | Bulk | Active | 18000 µF | ±20% | 16 V | 41mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.5 A @ 120 Hz | 4.03 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

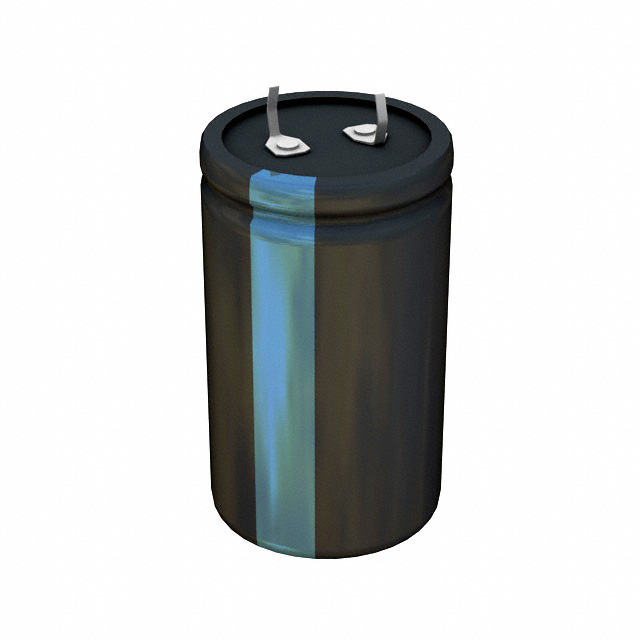

380LX473M016K052CAP ALUM 47000UF 20% 16V SNAP TH |
983 |
|
Datasheet |
380LX | Bulk | Active | 47000 µF | ±20% | 16 V | 20mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.5 A @ 120 Hz | 8.6 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
400LXW180MEFR16X45CAP ALUM 180UF 20% 400V RADIAL |
459 |
|
Datasheet |
LXW | Bulk | Active | 180 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 2.28 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
450MXK150MEFCSN25X25CAP ALUM 150UF 20% 450V SNAP TH |
386 |
|
Datasheet |
MXK | Tray | Active | 150 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.512 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ESMM451VSN331MQ50SCAP ALUM 330UF 20% 450V SNAP TH |
264 |
|
Datasheet |
SMM | Bulk | Active | 330 µF | ±20% | 450 V | 1.005Ohm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 3.0316 A @ 100 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL225050332E3CAP ALUM 3300UF 20% 35V RADIAL |
205 |
|
Datasheet |
250 RMI-V | Box | Active | 3300 µF | ±20% | 35 V | - | 10000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio, Automotive | 2.28 A @ 100 Hz | 3 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
MAL214651182E3CAP ALUM 1800UF 20% 50V RADIAL |
517 |
|
Datasheet |
146 RTI | Bulk | Active | 1800 µF | ±20% | 50 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.7 A @ 100 kHz | 26 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
|
MAL214658102E3CAP ALUM 1000UF 20% 63V RADIAL |
182 |
|
Datasheet |
146 RTI | Bulk | Active | 1000 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 2.4 A @ 100 kHz | 32 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
LGG2W221MELZ45CAP ALUM 220UF 20% 450V SNAP TH |
185 |
|
Datasheet |
LGG | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 870 mA @ 120 Hz | 1.2441 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ELHS451VSN181MQ30SCAP ALUM 180UF 20% 450V SNAP TH |
161 |
|
Datasheet |
LHS | Bulk | Active | 180 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | 1.5015 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.280" (32.50mm) | - | Through Hole | |
|
|
LGG2D102MELZ45CAP ALUM 1000UF 20% 200V SNAP TH |
188 |
|
Datasheet |
LGG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 3.06 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGR2E821MELC40CAP ALUM 820UF 20% 250V SNAP TH |
188 |
|
Datasheet |
LGR | Bulk | Active | 820 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 3 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LR271M450A032CAP ALUM 270UF 20% 450V SNAP TH |
797 |
|
Datasheet |
381LR | Bulk | Active | 270 µF | ±20% | 450 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 2.45 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
