Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL205752221E3CAP ALUM 220UF 20% 200V SNAP TH |
780 |
|
Datasheet |
057 PSM-SI | Bulk | Active | 220 µF | ±20% | 200 V | 650mOhm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 1 A @ 100 Hz | - | 435 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU2W181MELACAP ALUM 180UF 20% 450V SNAP TH |
546 |
|
Datasheet |
LGU | Bulk | Active | 180 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
LGX2W151MELA30CAP ALUM 150UF 20% 450V SNAP TH |
1,777 |
|
Datasheet |
LGX | Bulk | Active | 150 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.2584 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
MAL205756479E3CAP ALUM 47UF 20% 400V SNAP TH |
639 |
|
Datasheet |
057 PSM-SI | Bulk | Active | 47 µF | ±20% | 400 V | 3Ohm @ 100Hz | 12000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | Audio | 500 mA @ 100 Hz | - | 1.4 Ohms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|

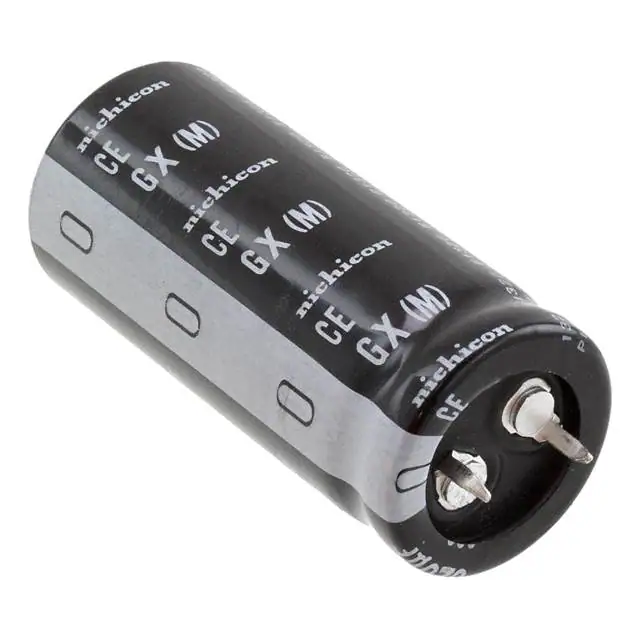

LGX2H121MELZ50CAP ALUM 120UF 20% 500V SNAP TH |
219 |
|
Datasheet |
LGX | Bulk | Active | 120 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 930 mA @ 120 Hz | 1.3299 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
450LXW150MEFR18X40CAP ALUM 150UF 20% 450V RADIAL |
198 |
|
Datasheet |
LXW | Bulk | Active | 150 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.96 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ESMR451VSN391MR35SCAP ALUM 390UF 20% 450V SNAP TH |
508 |
|
Datasheet |
SMR | Bulk | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.32 A @ 120 Hz | 3.3176 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
ESMR451VSN391MQ50SCAP ALUM 390UF 20% 450V SNAP TH |
216 |
|
Datasheet |
SMR | Bulk | Active | 390 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.37 A @ 120 Hz | 3.3891 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 2.067" (52.50mm) | - | Through Hole | |
|
LGR2G221MELB40CAP ALUM 220UF 20% 400V SNAP TH |
176 |
|
Datasheet |
LGR | Bulk | Active | 220 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.43 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
ALC80A103BB025CAP ALUM 10000UF 20% 25V SNAP TH |
1,007 |
|
Datasheet |
ALC80 | Bulk | Active | 10000 µF | ±20% | 25 V | 119.9mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.66 A @ 100 Hz | 4.54 A @ 10 kHz | 335 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ALC80A102BB100CAP ALUM 1000UF 20% 100V SNAP TH |
794 |
|
Datasheet |
ALC80 | Bulk | Active | 1000 µF | ±20% | 100 V | 289mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.36 A @ 100 Hz | 3.4 A @ 10 kHz | 237 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
TVA1413-E3CAP ALUM 40UF 150V AXIAL TH |
511 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 40 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.438" Dia x 1.500" L (11.12mm x 38.10mm) | - | - | Through Hole | |
|
LLS2A332MELBCAP ALUM 3300UF 20% 100V SNAP TH |
300 |
|
Datasheet |
LLS | Bulk | Active | 3300 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.18 A @ 120 Hz | 4.807 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
381LQ681M250K022CAP ALUM 680UF 20% 250V SNAP TH |
5,675 |
|
Datasheet |
381LQ | Bulk | Active | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGU1V153MELBCAP ALUM 15000UF 20% 35V SNAP TH |
200 |
|
Datasheet |
LGU | Bulk | Active | 15000 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.74 A @ 120 Hz | 4.301 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

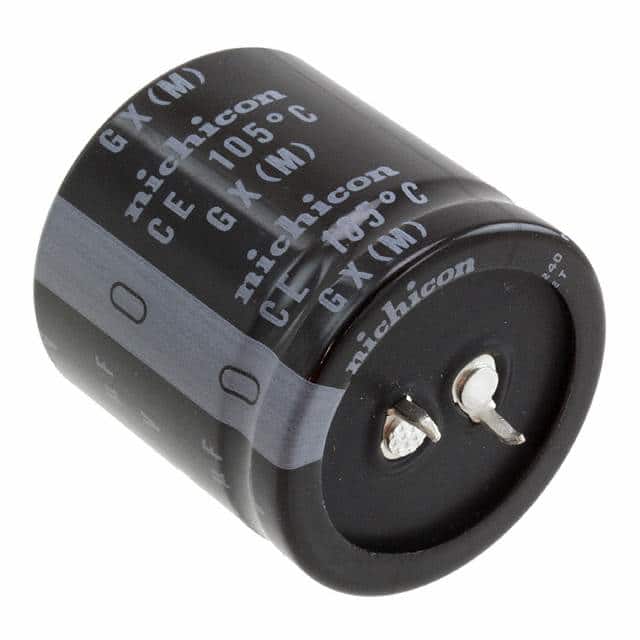

LGX2E102MELC35CAP ALUM 1000UF 20% 250V SNAP TH |
157 |
|
Datasheet |
LGX | Bulk | Active | 1000 µF | ±20% | 250 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.38 A @ 120 Hz | 3.57 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

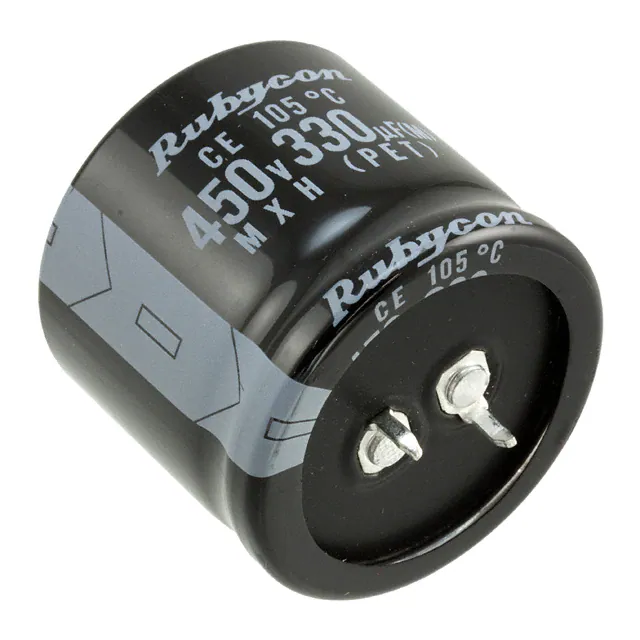

450MXH330MEFCSN35X30CAP ALUM 330UF 20% 450V SNAP TH |
776 |
|
Datasheet |
MXH | Bulk | Active | 330 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.54 A @ 120 Hz | 2.156 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
860040881013CAP ALUM 680UF 20% 100V RADIAL |
371 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 680 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.29 A @ 120 Hz | 1.72 A @ 100 kHz | 42 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
MAL212018471E3CAP ALUM 470UF 20% 63V AXIAL TH |
321 |
|
Datasheet |
120 ATC | Bulk | Active | 470 µF | ±20% | 63 V | 81mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 2.86 A @ 10 kHz | 74 mOhms | - | 0.709" Dia x 1.181" L (18.00mm x 30.00mm) | - | - | Through Hole | |
|
LGW2G331MELA50CAP ALUM 330UF 20% 400V SNAP TH |
237 |
|
Datasheet |
LGW | Bulk | Active | 330 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.12 A @ 120 Hz | 3.0316 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.969" (50.00mm) | - | Through Hole |
