Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELG108M200AT2AACAP ALUM 1000UF 20% 200V SNAP TH |
186 |
|
Datasheet |
ELG | Box | Active | 1000 µF | ±20% | 200 V | 90mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGUW6221MELZCAP ALUM 220UF 20% 420V SNAP TH |
750 |
|
Datasheet |
LGU | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LGR2D122MELB50CAP ALUM 1200UF 20% 200V SNAP TH |
174 |
|
Datasheet |
LGR | Bulk | Active | 1200 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 120 Hz | 3.45 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
MAL212029101E3CAP ALUM 100UF 20% 100V AXIAL TH |
787 |
|
Datasheet |
120 ATC | Tape & Reel (TR) | Active | 100 µF | ±20% | 100 V | 389mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | - | AEC-Q200 | Automotive | - | 1.14 A @ 10 kHz | 381 mOhms | - | 0.492" Dia x 1.181" L (12.50mm x 30.00mm) | - | - | Through Hole | |
|
SLPX333M025E9P3CAP ALUM 33000UF 20% 25V SNAP TH |
272 |
|
Datasheet |
SLPX | Bulk | Active | 33000 µF | ±20% | 25 V | 18mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.29 A @ 120 Hz | 6.61 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
EKMQ401VSN391MR40SCAP ALUM 390UF 20% 400V SNAP TH |
116 |
|
Datasheet |
KMQ | Bulk | Active | 390 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EKMZ451VSN271MQ35SCAP ALUM 270UF 20% 450V SNAP TH |
111 |
|
Datasheet |
KMZ | Box | Active | 270 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 120 Hz | 1.916 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.476" (37.50mm) | - | Through Hole | |
|
B43647B5337M057CAP ALUM 330UF 20% 450V SNAP TH |
204 |
|
Datasheet |
B43647 | Bulk | Active | 330 µF | ±20% | 450 V | 340mOhm @ 100Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.47 A @ 100 Hz | - | 520 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX273M025A032CAP ALUM 27000UF 20% 25V SNAP TH |
1,606 |
|
Datasheet |
380LX | Bulk | Active | 27000 µF | ±20% | 25 V | 23mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.2 A @ 120 Hz | 7.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

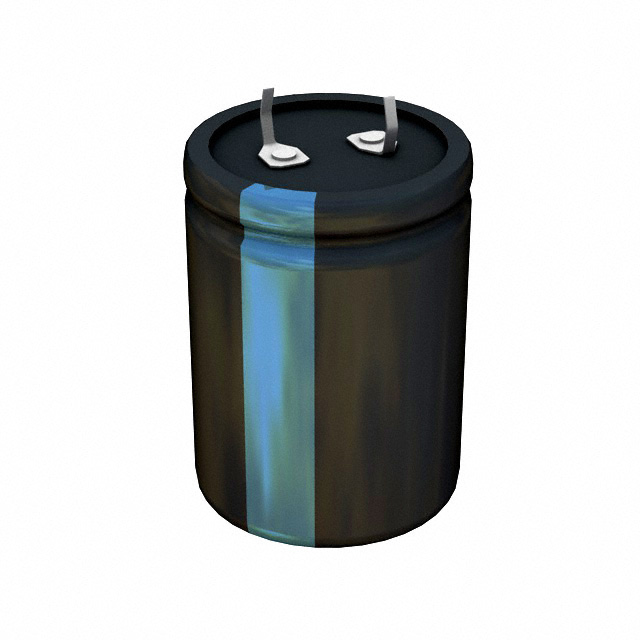

380LQ152M200K042CAP ALUM 1500UF 20% 200V SNAP TH |
622 |
|
Datasheet |
380LQ | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
TE1211-E3CAP ALUM 100UF 25V AXIAL TH |
394 |
|
Datasheet |
TE | Bulk | Active | 100 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 0.945" L (9.00mm x 24.00mm) | - | - | Through Hole | |
|
LGG2G221MELZ35CAP ALUM 220UF 20% 400V SNAP TH |
248 |
|
Datasheet |
LGG | Bulk | Active | 220 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.2155 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCPW6181MHDCAP ALUM 180UF 20% 420V RADIAL |
194 |
|
Datasheet |
UCP | Bulk | Active | 180 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.04 A @ 120 Hz | 1.56 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.890" (48.00mm) | - | Through Hole | |
|
LGU1J562MELCCAP ALUM 5600UF 20% 63V SNAP TH |
227 |
|
Datasheet |
LGU | Bulk | Active | 5600 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.24 A @ 120 Hz | 3.726 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGU2G271MELBCAP ALUM 270UF 20% 400V SNAP TH |
301 |
|
Datasheet |
LGU | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
ESMQ201VSN152MQ50SCAP ALUM 1500UF 20% 200V SNAP TH |
218 |
|
Datasheet |
SMQ | Bulk | Active | 1500 µF | ±20% | 200 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.87 A @ 120 Hz | 5.805 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.969" (50.00mm) | - | Through Hole | |
|
LLS1H123MELBCAP ALUM 12000UF 20% 50V SNAP TH |
191 |
|
Datasheet |
LLS | Bulk | Active | 12000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.72 A @ 120 Hz | 6.578 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGG2E681MELB30CAP ALUM 680UF 20% 250V SNAP TH |
158 |
|
Datasheet |
LGG | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
ESMQ401VSN471MQ50SCAP ALUM 470UF 20% 400V SNAP TH |
112 |
|
Datasheet |
SMQ | Bulk | Active | 470 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.39 A @ 120 Hz | 3.418 A @ 50 kHz | - | 0.394" (10.00mm) | 1.000" Dia (25.40mm) | 1.969" (50.00mm) | - | Through Hole | |
|
50USG12000MEFCSN30X45CAP ALUM 12000UF 20% 50V SNAP TH |
148 |
|
Datasheet |
USG | Bulk | Active | 12000 µF | ±20% | 50 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.6 A @ 120 Hz | 6.44 A @ 100 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
