Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
381LR221M400A012CAP ALUM 220UF 20% 400V SNAP TH |
2,328 |
|
Datasheet |
381LR | Bulk | Active | 220 µF | ±20% | 400 V | 603mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.42 A @ 120 Hz | 2.03 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
ELH108M250AS5AACAP ALUM 1000UF 20% 250V SNAP TH |
992 |
|
Datasheet |
ELH | Bulk | Active | 1000 µF | ±20% | 250 V | 93mOhm @ 20kHz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 3.3 A @ 120 Hz | 4.95 A @ 10 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
ALP20A222BB063CAP ALUM 2200UF 63V SOLDER LUG |
820 |
|
Datasheet |
ALP20 | Box | Active | 2200 µF | -10%, +30% | 63 V | - | 15000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.591" (15.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
400MXK220MEFCSN22X35CAP ALUM 220UF 20% 400V SNAP TH |
1,502 |
|
Datasheet |
MXK | Tray | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.37 A @ 120 Hz | 1.918 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
SLPX152M200H7P3CAP ALUM 1500UF 20% 200V SNAP TH |
118 |
|
Datasheet |
SLPX | Bulk | Active | 1500 µF | ±20% | 200 V | 133mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.06 A @ 120 Hz | 5.97 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.575" (40.00mm) | - | Through Hole | |
|
|
SLPX183M050H9P3CAP ALUM 18000UF 20% 50V SNAP TH |
2,642 |
|
Datasheet |
SLPX | Bulk | Active | 18000 µF | ±20% | 50 V | 26mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 7.14 A @ 120 Hz | 8.93 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
|
ELH687M400AT3AACAP ALUM 680UF 20% 400V SNAP TH |
987 |
|
Datasheet |
ELH | Bulk | Active | 680 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.625 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
450USK220MEFCSN25X30CAP ALUM 220UF 20% 450V SNAP TH |
125 |
|
Datasheet |
USK | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.85 A @ 120 Hz | 2.59 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
B43541B9157M000CAP ALUM 150UF 20% 400V SNAP TH |
2,626 |
|
Datasheet |
B43541 | Bulk | Active | 150 µF | ±20% | 400 V | 530mOhm @ 100Hz | 8000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 100 Hz | - | 730 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
TE1309CAP ALUM 100UF 50V AXIAL TH |
408 |
|
Datasheet |
TE | Bulk | Active | 100 µF | -10%, +75% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.496" L (9.00mm x 38.00mm) | - | - | Through Hole | |
|
TE1213CAP ALUM 200UF 25V AXIAL TH |
366 |
|
Datasheet |
TE | Bulk | Active | 200 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.496" L (9.00mm x 38.00mm) | - | - | Through Hole | |
|
MAL214650332E3CAP ALUM 3300UF 20% 35V RADIAL |
356 |
|
Datasheet |
146 RTI | Bulk | Active | 3300 µF | ±20% | 35 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 3.1 A @ 100 kHz | 19 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
TE1411CAP ALUM 30UF 100V AXIAL TH |
262 |
|
Datasheet |
TE | Bulk | Active | 30 µF | -10%, +50% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.354" Dia x 1.496" L (9.00mm x 38.00mm) | - | - | Through Hole | |
|
LGU2G391MELBCAP ALUM 390UF 20% 400V SNAP TH |
180 |
|
Datasheet |
LGU | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.288 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LGY1J562MELC35CAP ALUM 5600UF 20% 63V SNAP TH |
166 |
|
Datasheet |
LGY | Bulk | Active | 5600 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 3.22 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
TVA1163CAP ALUM 1000UF 16V AXIAL TH |
155 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 1000 µF | - | 16 V | - | - | -40°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.375" Dia x 1.500" L (9.53mm x 38.10mm) | - | - | Through Hole | |
|
LGN2G271MELA40CAP ALUM 270UF 20% 400V SNAP TH |
466 |
|
Datasheet |
LGN | Bulk | Active | 270 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.22 A @ 120 Hz | 1.7446 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLS2W221MELCCAP ALUM 220UF 20% 450V SNAP TH |
292 |
|
Datasheet |
LLS | Bulk | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.59 A @ 120 Hz | 2.2737 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
381LR271M400K032CAP ALUM 270UF 20% 400V SNAP TH |
1,406 |
|
Datasheet |
381LR | Bulk | Active | 270 µF | ±20% | 400 V | 491mOhm @ 120Hz | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.56 A @ 120 Hz | 2.23 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

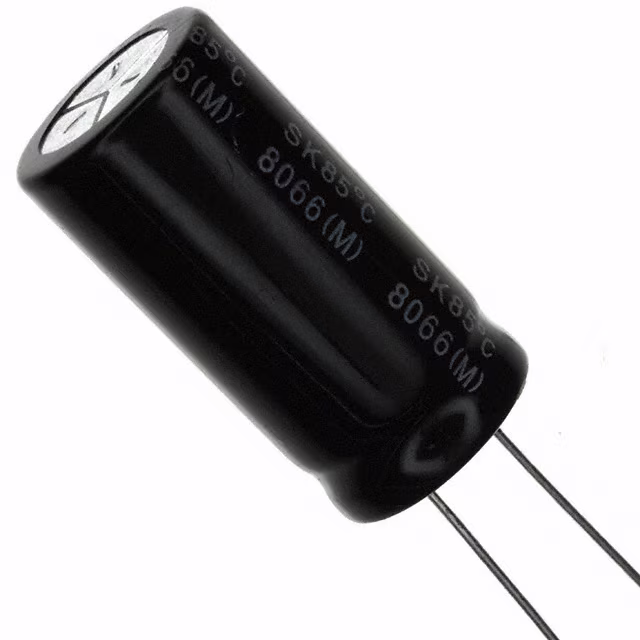

SK332M035STCAP ALUM 3300UF 20% 35V RADIAL |
295 |
|
Datasheet |
SK | Bulk | Active | 3300 µF | ±20% | 35 V | 100mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.22 A @ 120 Hz | 2.886 A @ 1 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.457" (37.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
