Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC70A562BB040CAP ALUM 5600UF 20% 40V SNAP TH |
136 |
|
Datasheet |
ALC70 | Bulk | Active | 5600 µF | ±20% | 40 V | 130.8mOhm @ 100Hz | 10000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 3.17 A @ 100 Hz | 4.09 A @ 10 kHz | 108 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL225630682E3CAP ALUM 6800UF 20% 35V SNAP TH |
528 |
|
Datasheet |
256 PMG-SI | Bulk | Active | 6800 µF | ±20% | 35 V | 78mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | - | 2.448 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

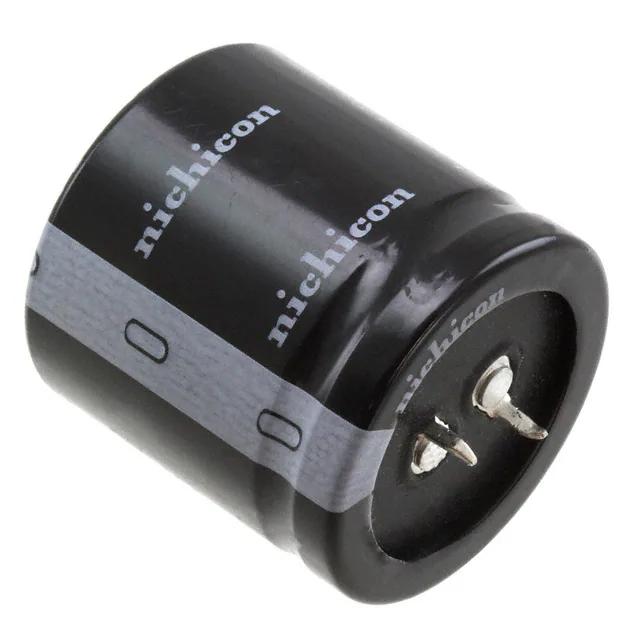

LLS1V153MELCCAP ALUM 15000UF 20% 35V SNAP TH |
244 |
|
Datasheet |
LLS | Bulk | Active | 15000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.95 A @ 120 Hz | 5.6925 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

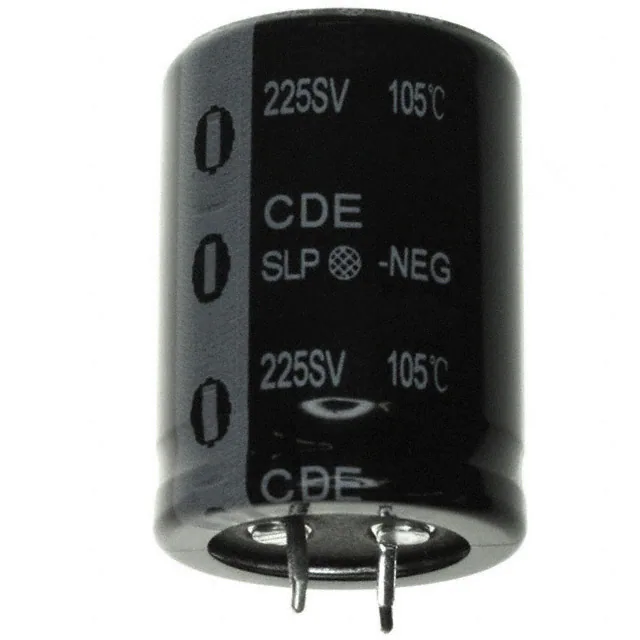

SLP102M200E7P3CAP ALUM 1000UF 20% 200V SNAP TH |
590 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 1000 µF | ±20% | 200 V | 199mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.575" (40.00mm) | - | Through Hole | |
.jpg)
|
B43305B9227M000CAP ALUM 220UF 20% 400V SNAP TH |
424 |
|
Datasheet |
B43305 | Bulk | Not For New Designs | 220 µF | ±20% | 400 V | 620mOhm @ 100Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.28 A @ 100 Hz | - | 830 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
200MXG470MEFCSN20X35CAP ALUM 470UF 20% 200V SNAP TH |
177 |
|
Datasheet |
MXG | Bulk | Active | 470 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.76 A @ 120 Hz | 2.64 A @ 10 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGW2G221MELA35CAP ALUM 220UF 20% 400V SNAP TH |
721 |
|
Datasheet |
LGW | Bulk | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.65 A @ 120 Hz | 2.3595 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.378" (35.00mm) | - | Through Hole | |
|
LGW2G221MELZ45CAP ALUM 220UF 20% 400V SNAP TH |
385 |
|
Datasheet |
LGW | Bulk | Active | 220 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 2.2165 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
EKMH401VSN331MA35SCAP ALUM 330UF 20% 400V SNAP TH |
293 |
|
Datasheet |
KMH | Bulk | Active | 330 µF | ±20% | 400 V | 753mOhm @ 120Hz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.9305 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|

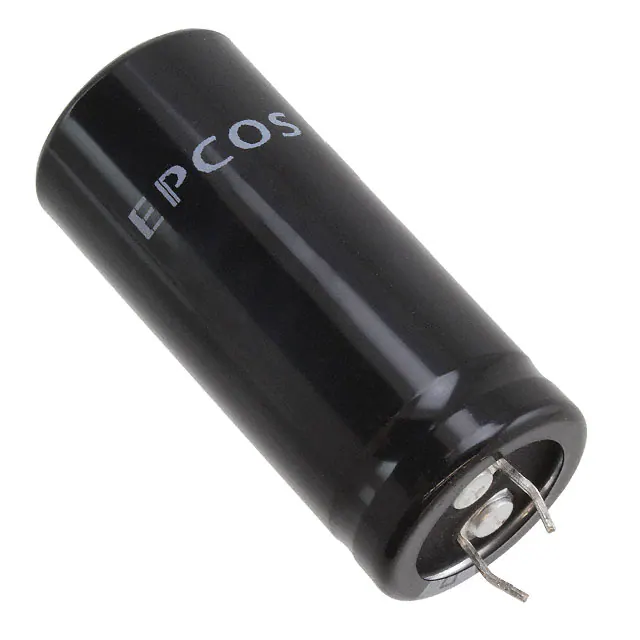

B43504A2477M000CAP ALUM 470UF 20% 250V SNAP TH |
640 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 470 µF | ±20% | 250 V | 280mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 100 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGU1K332MELCCAP ALUM 3300UF 20% 80V SNAP TH |
159 |
|
Datasheet |
LGU | Bulk | Active | 3300 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.71 A @ 120 Hz | 3.1165 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
380LX221M400K022CAP ALUM 220UF 20% 400V SNAP TH |
2,957 |
|
Datasheet |
380LX | Bulk | Active | 220 µF | ±20% | 400 V | 750mOhm @ 120Hz | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.5 A @ 120 Hz | 2.1 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
MAL224699814E3CAP ALUM 1000UF 20% 63V SMD |
397 |
|
Datasheet |
246 CTI-V | Box | Active | 1000 µF | ±20% | 63 V | - | 6000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 840 mA @ 100 Hz | 1.4 A @ 100 kHz | 72 mOhms | - | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|
450BXW150MEFR18X50CAP ALUM 150UF 20% 450V RADIAL |
359 |
|
Datasheet |
BXW | Bulk | Active | 150 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LLG2E681MELA35CAP ALUM 680UF 20% 250V SNAP TH |
259 |
|
Datasheet |
LLG | Bulk | Active | 680 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKMQ161VSN152MR35SCAP ALUM 1500UF 20% 160V SNAP TH |
184 |
|
Datasheet |
KMQ | Bulk | Active | 1500 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 3.75 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43504A9157M000CAP ALUM 150UF 20% 400V SNAP TH |
172 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 150 µF | ±20% | 400 V | 590mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 820 mA @ 100 Hz | - | 730 mOhms | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EGVD350ELL362MM30HCAP ALUM 3600UF 20% 35V RADIAL |
131 |
|
Datasheet |
GVD | Bulk | Active | 3600 µF | ±20% | 35 V | 23mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 4.035 A @ 120 Hz | 5.38 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.240" (31.50mm) | - | Through Hole | |
|
SLP821M200C4P3CAP ALUM 820UF 20% 200V SNAP TH |
1,434 |
|
Datasheet |
SLP0712TE (750W) | Bulk | Active | 820 µF | ±20% | 200 V | 243mOhm | 3000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
B43504C2337M000CAP ALUM 330UF 20% 250V SNAP TH |
326 |
|
Datasheet |
B43504 | Bulk | Not For New Designs | 330 µF | ±20% | 250 V | 390mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.2 A @ 100 Hz | - | 470 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole |
