Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LKX2W151MESA35CAP ALUM 150UF 20% 450V SNAP TH |
270 |
|
Datasheet |
LKX | Bulk | Active | 150 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | Audio | 790 mA @ 120 Hz | 1.1297 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
TE1206-E3CAP ALUM 20UF 25V AXIAL TH |
388 |
|
Datasheet |
TE | Bulk | Active | 20 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.315" Dia x 0.689" L (8.00mm x 17.50mm) | - | - | Through Hole | |
|
LGU2F331MELBCAP ALUM 330UF 20% 315V SNAP TH |
169 |
|
Datasheet |
LGU | Bulk | Active | 330 µF | ±20% | 315 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.33 A @ 120 Hz | 1.5295 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
450LXW120MEFR14.5X50CAP ALUM 120UF 20% 450V RADIAL |
143 |
|
Datasheet |
LXW | Bulk | Active | 120 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 890 mA @ 120 Hz | 1.78 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGX2W151MELZ40CAP ALUM 150UF 20% 450V SNAP TH |
110 |
|
Datasheet |
LGX | Bulk | Active | 150 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.2584 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

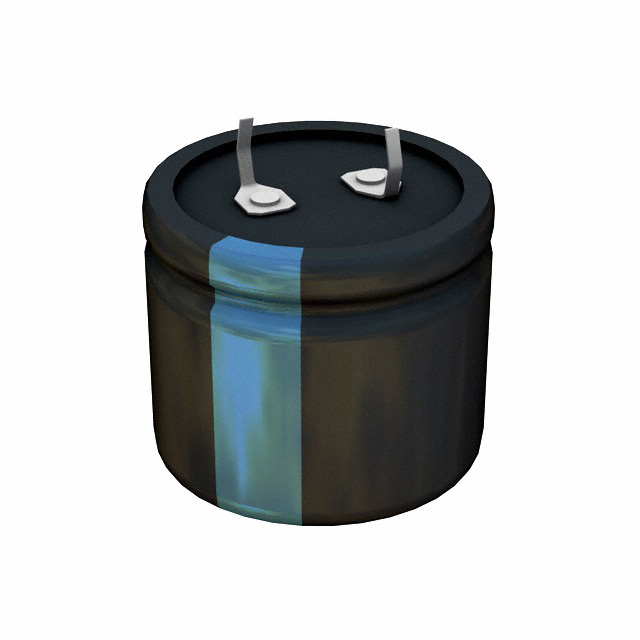

380LQ123M035K012CAP ALUM 12000UF 20% 35V SNAP TH |
1,905 |
|
Datasheet |
380LQ | Bulk | Active | 12000 µF | ±20% | 35 V | 48mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.15 A @ 120 Hz | 4.77 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGR2E681MELB45CAP ALUM 680UF 20% 250V SNAP TH |
174 |
|
Datasheet |
LGR | Bulk | Active | 680 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.55 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGN2H121MELB30CAP ALUM 120UF 20% 500V SNAP TH |
158 |
|
Datasheet |
LGN | Bulk | Active | 120 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 972.4 mA @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGN2V271MELZ40CAP ALUM 270UF 20% 350V SNAP TH |
236 |
|
Datasheet |
LGN | Bulk | Active | 270 µF | ±20% | 350 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.1 A @ 120 Hz | 1.573 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGW2G181MELB25CAP ALUM 180UF 20% 400V SNAP TH |
262 |
|
Datasheet |
LGW | Bulk | Active | 180 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.68 A @ 120 Hz | 2.4024 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 0.984" (25.00mm) | - | Through Hole | |
|
LLS1V223MELCCAP ALUM 22000UF 20% 35V SNAP TH |
180 |
|
Datasheet |
LLS | Bulk | Active | 22000 µF | ±20% | 35 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.38 A @ 120 Hz | 7.337 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
|
250TXW470MEFR18X50CAP ALUM 470UF 20% 250V RADIAL |
344 |
|
Datasheet |
TXW | Bulk | Not For New Designs | 470 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.83 A @ 120 Hz | 2.56 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.067" (52.50mm) | - | Through Hole | |
|
LLS1K562MELBCAP ALUM 5600UF 20% 80V SNAP TH |
173 |
|
Datasheet |
LLS | Bulk | Active | 5600 µF | ±20% | 80 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 120 Hz | 5.405 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|

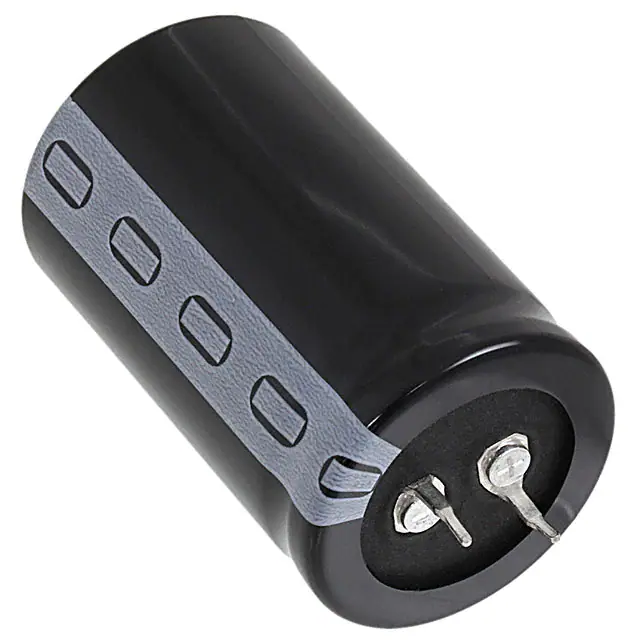

B41505A9228M000CAP ALUM 2200UF 20% 100V SNAP TH |
119 |
|
Datasheet |
B41505 | Bulk | Not For New Designs | 2200 µF | ±20% | 100 V | 56mOhm | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.3 A @ 100 Hz | - | 60 mOhms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
TE1209-E3CAP ALUM 50UF 25V AXIAL TH |
452 |
|
Datasheet |
TE | Bulk | Active | 50 µF | -10%, +75% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | - | 0.315" Dia x 0.807" L (8.00mm x 20.50mm) | - | - | Through Hole | |
|
TVA1402-E3CAP ALUM 4UF 150V AXIAL TH |
372 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 4 µF | - | 150 V | - | - | -20°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.312" Dia x 0.812" L (7.92mm x 20.62mm) | - | - | Through Hole | |
|

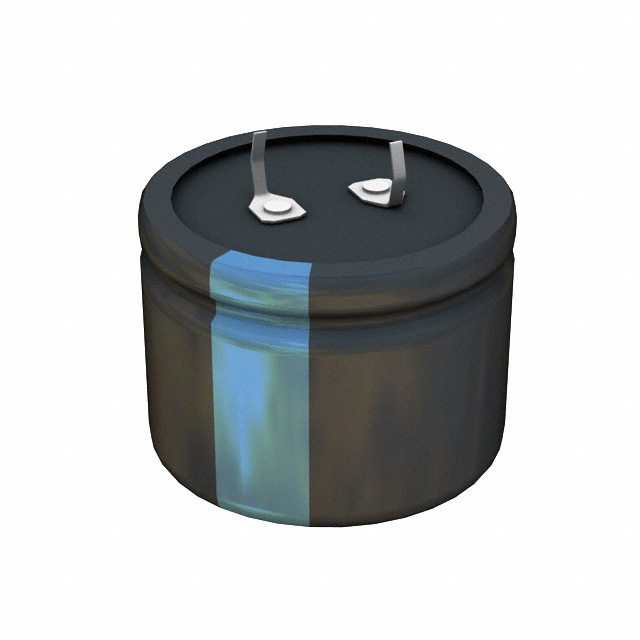

381LX332M063A012CAP ALUM 3300UF 20% 63V SNAP TH |
1,205 |
|
Datasheet |
381LX | Bulk | Active | 3300 µF | ±20% | 63 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.5 A @ 120 Hz | 2.9 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
LGU1K332MELACAP ALUM 3300UF 20% 80V SNAP TH |
278 |
|
Datasheet |
LGU | Bulk | Active | 3300 µF | ±20% | 80 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.76 A @ 120 Hz | 3.174 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LGNW6221MELZ45CAP ALUM 220UF 20% 420V SNAP TH |
247 |
|
Datasheet |
LGN | Bulk | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.05 A @ 120 Hz | - | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
100USC5600MEFCSN35X45CAP ALUM 5600UF 20% 100V SNAP TH |
219 |
|
Datasheet |
USC | Bulk | Not For New Designs | 5600 µF | ±20% | 100 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 5.75 A @ 120 Hz | 6.6125 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole |
