Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B43508E2827M000CAP ALUM 820UF 20% 250V SNAP TH |
374 |
|
Datasheet |
B43508 | Bulk | Not For New Designs | 820 µF | ±20% | 250 V | 140mOhm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.07 A @ 100 Hz | - | 200 mOhms | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
381LQ681M250H052CAP ALUM 680UF 20% 250V SNAP TH |
4,811 |
|
Datasheet |
381LQ | Bulk | Active | 680 µF | ±20% | 250 V | 244mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.7 A @ 120 Hz | 2.38 A @ 20 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
PEV227HLP4620QE4CAP ALUM 6200UF 25V SMD |
199 |
|
Datasheet |
PEV227 | Tray | Active | 6200 µF | -10%, +30% | 25 V | 27mOhm @ 100Hz | 8400 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 7.56 A @ 100 Hz | 22.464 A @ 100 kHz | - | - | 0.748" L x 0.748" W (19.00mm x 19.00mm) | 1.496" (38.00mm) | 1.102" L x 1.102" W (28.00mm x 28.00mm) | Surface Mount | |
|
PEG227MLP4160QE4CAP ALUM 1600UF 63V AXIAL TH |
2,072 |
|
Datasheet |
PEG227 | Tray | Active | 1600 µF | -10%, +30% | 63 V | 55mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.345 A @ 100 Hz | 6.7 A @ 5 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole | |
|
381LR102M200A022CAP ALUM 1000UF 20% 200V SNAP TH |
729 |
|
Datasheet |
381LR | Bulk | Active | 1000 µF | ±20% | 200 V | 149mOhm @ 120Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.06 A @ 20 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
PEH227HKP4460ME4CAP ALUM 4600UF 20% 25V SLD LUG |
351 |
|
Datasheet |
PEH227 | Tray | Active | 4600 µF | ±20% | 25 V | 35mOhm @ 100Hz | 1500 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.59 A @ 100 Hz | 7.696 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.445" (36.70mm) | - | Through Hole | |
|

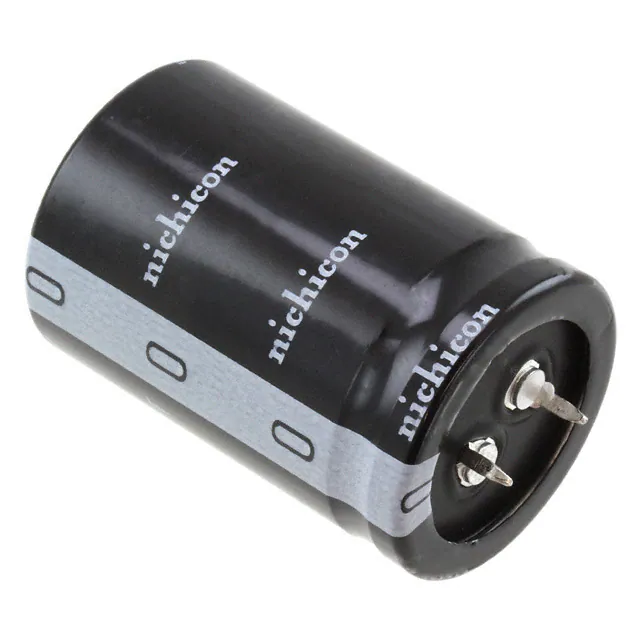

LLS2W391MELBCAP ALUM 390UF 20% 450V SNAP TH |
123 |
|
Datasheet |
LLS | Bulk | Active | 390 µF | ±20% | 450 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.35 A @ 120 Hz | 3.3605 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
|
ALH82A820CB550CAP ALUM 82UF 20% 550V SNAP TH |
472 |
|
Datasheet |
ALH82 | Tray | Active | 82 µF | ±20% | 550 V | 1.584Ohm @ 100Hz | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.06 A @ 100 Hz | 2.95 A @ 10 kHz | 1.088 Ohms | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
PEG227HML4560QE4CAP ALUM 5600UF 25V AXIAL TH |
386 |
|
Datasheet |
PEG227 | Tray | Active | 5600 µF | -10%, +30% | 25 V | 30mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.66 A @ 100 Hz | 7.6 A @ 5 kHz | - | - | 0.795" Dia x 1.051" L (20.20mm x 26.70mm) | - | - | Through Hole | |
|
ELG337M400AT3AACAP ALUM 330UF 20% 400V SNAP TH |
1,000 |
|
Datasheet |
ELG | Bulk | Active | 330 µF | ±20% | 400 V | 195mOhm @ 20kHz | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.9575 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
B43634C5337M000CAP ALUM 330UF 20% 450V SNAP TH |
331 |
|
Datasheet |
B43634 | Bulk | Active | 330 µF | ±20% | 450 V | 340mOhm @ 100Hz | 8000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 2.1 A @ 100 Hz | - | 530 mOhms | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGN2H181MELB35CAP ALUM 180UF 20% 500V SNAP TH |
192 |
|
Datasheet |
LGN | Bulk | Active | 180 µF | ±20% | 500 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 900 mA @ 120 Hz | 1.287 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
|
LGN2D152MELB40CAP ALUM 1500UF 20% 200V SNAP TH |
118 |
|
Datasheet |
LGN | Bulk | Active | 1500 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.8 A @ 120 Hz | 4.2 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
450MXG270MEFCSN25X40CAP ALUM 270UF 20% 450V SNAP TH |
191 |
|
Datasheet |
MXG | Bulk | Active | 270 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
478LBB080M2EDCAP ALUM 4700UF 20% 80V SNAP TH |
1,482 |
|
Datasheet |
LBB | Bulk | Active | 4700 µF | ±20% | 80 V | 52.91mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.09 A @ 120 Hz | 5.1125 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
|
200MXG1200MEFCSN25X50CAP ALUM 1200UF 20% 200V SNAP TH |
199 |
|
Datasheet |
MXG | Bulk | Active | 1200 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.84 A @ 120 Hz | 4.26 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
PEG228HLP4410QE4CAP ALUM 4100UF 25V AXIAL TH |
429 |
|
Datasheet |
PEG228 | Tray | Active | 4100 µF | -10%, +30% | 25 V | 31mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 2.905 A @ 100 Hz | 8.3 A @ 5 kHz | - | - | 0.717" Dia x 1.366" L (18.20mm x 34.70mm) | - | - | Through Hole | |
|
LGGW6391MELC30CAP ALUM 390UF 20% 420V SNAP TH |
181 |
|
Datasheet |
LGG | Bulk | Active | 390 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.45 A @ 120 Hz | 2.0735 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
228LBA200M2EHCAP ALUM 2200UF 20% 200V SNAP TH |
489 |
|
Datasheet |
LBA | Bulk | Active | 2200 µF | ±20% | 200 V | 113.04mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.7 A @ 120 Hz | 6.909 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
|
200MXG1000MEFCSN25X45CAP ALUM 1000UF 20% 200V SNAP TH |
185 |
|
Datasheet |
MXG | Bulk | Active | 1000 µF | ±20% | 200 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 2.58 A @ 120 Hz | 3.87 A @ 10 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
