Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGU2P152MELCCAP ALUM 1500UF 20% 220V SNAP TH |
200 |
|
Datasheet |
LGU | Bulk | Active | 1500 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3 A @ 120 Hz | 4.5 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.772" (45.00mm) | - | Through Hole | |
|
LGL2W181MELA30CAP ALUM 180UF 20% 450V SNAP TH |
229 |
|
Datasheet |
LGL | Bulk | Active | 180 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 770 mA @ 120 Hz | 1.1011 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
229LBA035M2EGCAP ALUM 22000UF 20% 35V SNAP TH |
544 |
|
Datasheet |
LBA | Bulk | Active | 22000 µF | ±20% | 35 V | 30.14mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 6.25 A @ 120 Hz | 7.8125 A @ 10 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
420LXW220MEFR18X50CAP ALUM 220UF 20% 420V RADIAL |
380 |
|
Datasheet |
LXW | Bulk | Active | 220 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 2.5 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGY2A392MELC45CAP ALUM 3900UF 20% 100V SNAP TH |
200 |
|
Datasheet |
LGY | Bulk | Active | 3900 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.9 A @ 120 Hz | 3.335 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LQSW6271MELA40CAP ALUM 270UF 20% 420V SNAP TH |
198 |
|
Datasheet |
LQS | Bulk | Active | 270 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.25 A @ 120 Hz | 1.7875 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LGX2H151MELA45CAP ALUM 150UF 20% 500V SNAP TH |
205 |
|
Datasheet |
LGX | Bulk | Active | 150 µF | ±20% | 500 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.08 A @ 120 Hz | 1.5444 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
LQS2G391MELA50CAP ALUM 390UF 20% 400V SNAP TH |
250 |
|
Datasheet |
LQS | Bulk | Active | 390 µF | ±20% | 400 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.55 A @ 120 Hz | 1.859 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
ESMH201VNN222MA50UCAP ALUM 2200UF 20% 200V SNAP TH |
156 |
|
Datasheet |
SMH | Bulk | Active | 2200 µF | ±20% | 200 V | 113mOhm @ 120Hz | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | - | 4.92 A @ 120 Hz | 7.38 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 2.047" (52.00mm) | - | Through Hole | |
|
LGL2W221MELA35CAP ALUM 220UF 20% 450V SNAP TH |
130 |
|
Datasheet |
LGL | Bulk | Active | 220 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.2155 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
380LX332M100K042CAP ALUM 3300UF 20% 100V SNAP TH |
2,798 |
|
Datasheet |
380LX | Bulk | Active | 3300 µF | ±20% | 100 V | 90mOhm @ 120Hz | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.1 A @ 120 Hz | 4.7 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
LLG2C222MELB40CAP ALUM 2200UF 20% 160V SNAP TH |
194 |
|
Datasheet |
LLG | Bulk | Active | 2200 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 4.45 A @ 120 Hz | 6.675 A @ 50 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
420MXK220MEFCSN22X35CAP ALUM 220UF 20% 420V SNAP TH |
226 |
|
Datasheet |
MXK | Tray | Active | 220 µF | ±20% | 420 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.38 A @ 120 Hz | 1.932 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
LGU2Z222MELCCAP ALUM 2200UF 20% 180V SNAP TH |
200 |
|
Datasheet |
LGU | Bulk | Active | 2200 µF | ±20% | 180 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.65 A @ 120 Hz | 5.475 A @ 50 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.969" (50.00mm) | - | Through Hole | |
|
380LX471M450A452CAP ALUM 470UF 20% 450V SNAP TH |
709 |
|
Datasheet |
380LX | Bulk | Active | 470 µF | ±20% | 450 V | 423mOhm | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | - | - | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.850" (47.00mm) | - | Through Hole | |
|
PEV228MLL3750QE4CAP ALUM 750UF 63V SMD |
386 |
|
Datasheet |
PEV228 | Tray | Active | 750 µF | -10%, +30% | 63 V | 94mOhm @ 100Hz | 2000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 5.25 A @ 100 Hz | 15.6 A @ 100 kHz | - | - | - | 1.181" (30.00mm) | 0.748" L x 0.748" W (19.00mm x 19.00mm) | Surface Mount | |
|

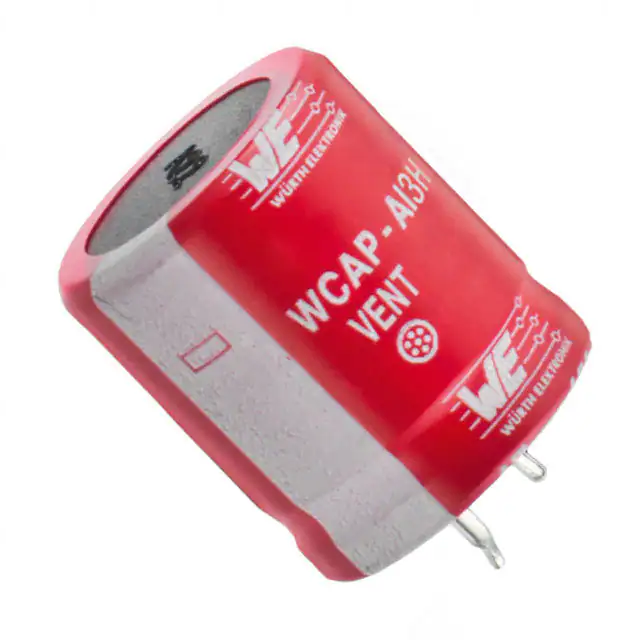

861141486020CAP ALUM 220UF 20% 450V SNAP TH |
125 |
|
Datasheet |
WCAP-AI3H | Tray | Active | 220 µF | ±20% | 450 V | - | 3000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 1.12 A @ 120 Hz | 1.5456 A @ 100 kHz | - | 0.394" (10.00mm) | 1.378" Dia (35.00mm) | 1.339" (34.00mm) | - | Through Hole | |
|
ERLA251LIN801KR40MCAP ALUM 800UF 20% 250V SNAP TH |
193 |
|
Datasheet |
RLA | Bulk | Active | 800 µF | ±20% | 250 V | - | 3000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 4.66 A @ 120 Hz | 6.99 A @ 50 kHz | - | 0.559" (14.20mm) | 1.181" Dia (30.00mm) | 1.673" (42.50mm) | - | Through Hole | |
|
TVA1211-E3CAP ALUM 1000UF 25V AXIAL TH |
151 |
|
Datasheet |
TVA ATOM® | Bulk | Active | 1000 µF | - | 25 V | - | - | -40°C ~ 85°C | Polar | - | Audio | - | - | - | - | 0.485" Dia x 1.500" L (12.32mm x 38.10mm) | - | - | Through Hole | |
|

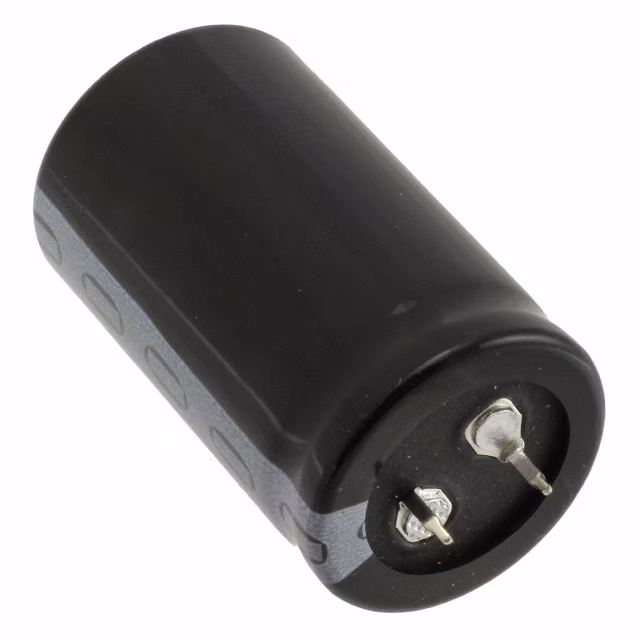

B43254A1228M000CAP ALUM 2200UF 20% 160V SNAP TH |
357 |
|
Datasheet |
B43254 | Bulk | Not For New Designs | 2200 µF | ±20% | 160 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.44 A @ 120 Hz | 5.332 A @ 20 kHz | - | 0.394" (10.00mm) | 1.181" Dia (30.00mm) | 2.047" (52.00mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
