Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
860040680013CAP ALUM 1200UF 20% 50V RADIAL |
183 |
|
Datasheet |
WCAP-ATUL | Cut Tape (CT) | Active | 1200 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.353 A @ 120 Hz | 2.87 A @ 100 kHz | 30 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
URZ2G470MHD1TNCAP ALUM 47UF 20% 400V RADIAL TH |
486 |
|
Datasheet |
URZ | Cut Tape (CT) | Active | 47 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 480 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UBW1C222MHD1TNCAP ALUM 2200UF 20% 16V RADIAL |
250 |
|
Datasheet |
UBW | Cut Tape (CT) | Active | 2200 µF | ±20% | 16 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 1.541 A @ 120 Hz | 2.3 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
|
UBW1A332MHD1TNCAP ALUM 3300UF 20% 10V RADIAL |
101 |
|
Datasheet |
UBW | Cut Tape (CT) | Active | 3300 µF | ±20% | 10 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 1.541 A @ 120 Hz | 2.3 A @ 100 kHz | 24 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
420HXW56MEFR10X40CAP ALUM 56UF 20% 420V RADIAL TH |
986 |
|
Datasheet |
HXW | Bulk | Active | 56 µF | ±20% | 420 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 780 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|

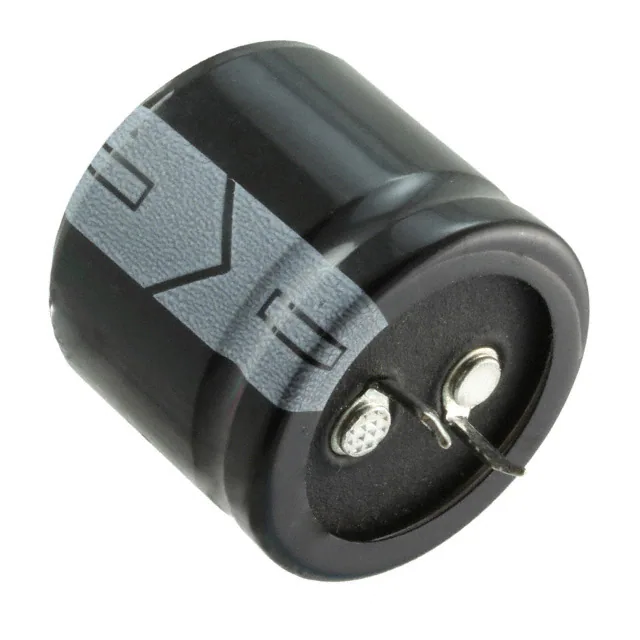

478LBA025M2BCCAP ALUM 4700UF 20% 25V SNAP TH |
1,890 |
|
Datasheet |
LBA | Bulk | Active | 4700 µF | ±20% | 25 V | 158.73mOhm @ 120Hz | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.2 A @ 120 Hz | 2.75 A @ 10 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EKHE451ELL680MUN3SCAP ALUM 68UF 20% 450V RADIAL TH |
320 |
|
Datasheet |
KHE | Bulk | Active | 68 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 570 mA @ 120 Hz | 1.026 A @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UCYW6470MHD3TNCAP ALUM 47UF 20% 420V RADIAL TH |
224 |
|
Datasheet |
UCY | Cut Tape (CT) | Active | 47 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 960 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
158CKH035MCAP ALUM 1500UF 20% 35V RADIAL |
3,000 |
|
Datasheet |
CKH | Bulk | Active | 1500 µF | ±20% | 35 V | 154.7mOhm @ 120Hz | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.14 A @ 120 Hz | 1.596 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
MAL202126151E3CAP ALUM 150UF 20% 25V AXIAL TH |
1,836 |
|
Datasheet |
021 ASM | Tape & Reel (TR) | Active | 150 µF | ±20% | 25 V | 1.5Ohm @ 100Hz | 2500 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 210 mA @ 100 Hz | - | 800 mOhms | - | 0.256" Dia x 0.709" L (6.50mm x 18.00mm) | - | - | Through Hole | |
|
420LXW47MEFR14.5X20CAP ALUM 47UF 20% 420V RADIAL TH |
421 |
|
Datasheet |
LXW | Bulk | Active | 47 µF | ±20% | 420 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 420 mA @ 120 Hz | 924 mA @ 100 kHz | - | 0.295" (7.50mm) | 0.571" Dia (14.50mm) | 0.866" (22.00mm) | - | Through Hole | |
|
|
EKWA421ELL820MK40SCAP ALUM 82UF 20% 420V RADIAL TH |
345 |
|
Datasheet |
KWA | Bulk | Active | 82 µF | ±20% | 420 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 610 mA @ 120 Hz | 1.098 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
80ZLJ820M16X40CAP ALUM 820UF 20% 80V RADIAL TH |
150 |
|
Datasheet |
ZLJ | Bulk | Active | 820 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.106 A @ 120 Hz | - | 27 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
EEU-HD1C472CAP ALUM 4700UF 20% 16V RADIAL |
433 |
|
Datasheet |
HD | Bulk | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.48 A @ 120 Hz | 1.702 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEE-TP1V132MCAP ALUM 1300UF 20% 35V SMD |
467 |
|
Datasheet |
TP | Tape & Reel (TR) | Active | 1300 µF | ±20% | 35 V | 47mOhm @ 100kHz | 3000 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 1.8 A @ 120 Hz | 2.4 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount | |
|
400LXW56MEFR16X20CAP ALUM 56UF 20% 400V RADIAL TH |
170 |
|
Datasheet |
LXW | Bulk | Active | 56 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 1.144 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
EEU-FK1C392LCAP ALUM 3900UF 20% 16V RADIAL |
936 |
|
Datasheet |
FK | Bulk | Active | 3900 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.352 A @ 120 Hz | 2.94 A @ 100 kHz | 16 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EKYB500ELL182MLP1SCAP ALUM 1800UF 20% 50V RADIAL |
403 |
|
Datasheet |
KYB | Bulk | Active | 1800 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 3.55 A @ 100 kHz | 16 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCY2G560MHDCAP ALUM 56UF 20% 400V RADIAL TH |
157 |
|
Datasheet |
UCY | Bulk | Active | 56 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 630 mA @ 120 Hz | 1.26 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.457" (37.00mm) | - | Through Hole | |
|
EEE-FK1C432SVCAP ALUM 4300UF 20% 16V SMD |
185 |
|
Datasheet |
FKS, Anti-Vibration | Tape & Reel (TR) | Active | 4300 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.35 A @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | 0.669" L x 0.669" W (17.00mm x 17.00mm) | Surface Mount |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
