Aluminum Electrolytic Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEE-TC1C331VCAP ALUM 330UF 20% 16V SMD |
430 |
|
Datasheet |
TC, Anti-Vibration | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | 150mOhm @ 100kHz | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 487.5 mA @ 120 Hz | 750 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
MAL217055222E3CAP ALUM 2200UF 20% 16V RADIAL |
172 |
|
Datasheet |
170 RVZ | Bulk | Active | 2200 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.43 A @ 100 Hz | 2.2 A @ 100 kHz | 27 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
MAL214635471E3CAP ALUM 470UF 20% 16V RADIAL TH |
2,373 |
|
Datasheet |
146 RTI | Cut Tape (CT) | Active | 470 µF | ±20% | 16 V | - | 2500 Hrs @ 125°C | -55°C ~ 125°C | Polar | AEC-Q200 | Automotive | - | 620 mA @ 100 kHz | 120 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.531" (13.50mm) | - | Through Hole | |
|
EGXF251ELL240MJ20SCAP ALUM 24UF 20% 250V RADIAL TH |
2,000 |
|
Datasheet |
GXF | Bulk | Active | 24 µF | ±20% | 250 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 270 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
EEE-TP1A331APCAP ALUM 330UF 20% 10V SMD |
977 |
|
Datasheet |
TP | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | - | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 325 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.402" (10.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

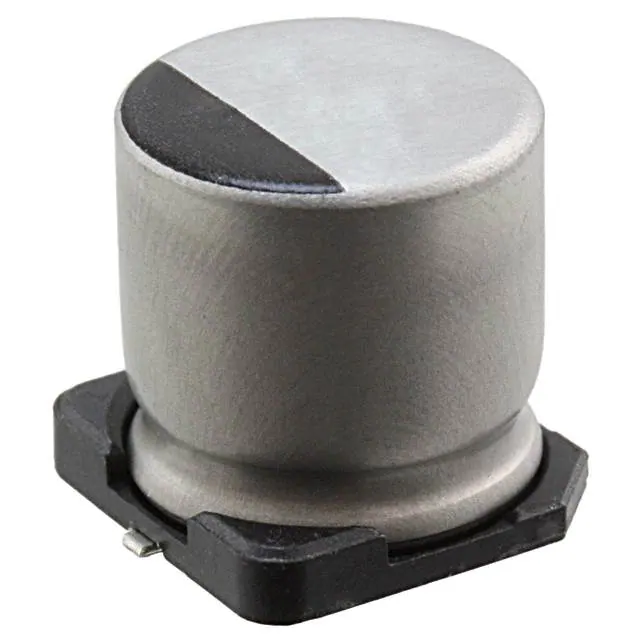

ULV2G6R8MNL1GSCAP ALUM 6.8UF 20% 400V SMD |
470 |
|
Datasheet |
ULV | Tape & Reel (TR) | Active | 6.8 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 50 mA @ 120 Hz | 80 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|

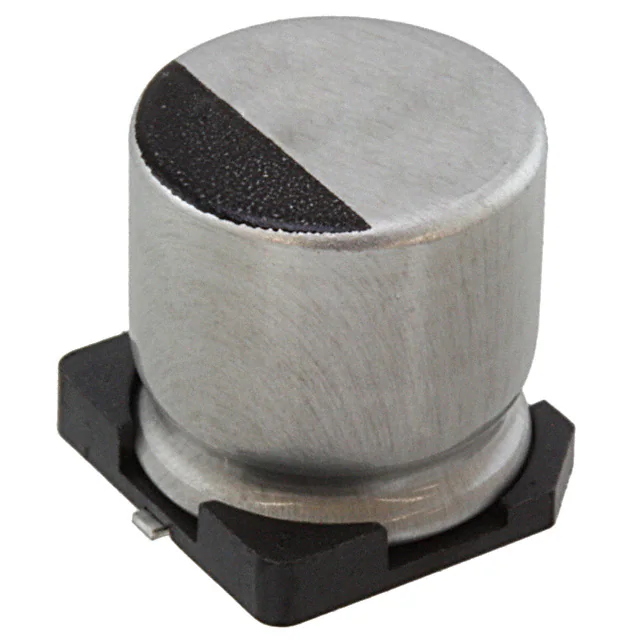

6.3TKV1500M10X10.5CAP ALUM 1500UF 20% 6.3V SMD |
422 |
|
Datasheet |
TKV | Tape & Reel (TR) | Active | 1500 µF | ±20% | 6.3 V | 60mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 714 mA @ 120 Hz | 1.19 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
865080262015CAP ALUM 2200UF 20% 10V SMD |
108 |
|
Datasheet |
WCAP-ASLI | Tape & Reel (TR) | Active | 2200 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 715 mA @ 120 Hz | 1.1 A @ 100 kHz | 80 mOhms | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.531" L x 0.531" W (13.50mm x 13.50mm) | Surface Mount | |
|
EEU-TP1V271BCAP ALUM 270UF 20% 35V RADIAL TH |
625 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 270 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | 945 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
6.3YXS6800MEFC16X20CAP ALUM 6800UF 20% 6.3V RADIAL |
595 |
|
Datasheet |
YXS | Bulk | Active | 6800 µF | ±20% | 6.3 V | - | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.778 A @ 120 Hz | 2.54 A @ 100 kHz | 21 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPS1A332MHD1TOCAP ALUM 3300UF 20% 10V RADIAL |
492 |
|
Datasheet |
UPS | Cut Tape (CT) | Not For New Designs | 3300 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.349 A @ 120 Hz | 1.55 A @ 100 kHz | 57 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
EEU-TP1E471BCAP ALUM 470UF 20% 25V RADIAL TH |
489 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 470 µF | ±20% | 25 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 945 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
URS2C680MHD1TNCAP ALUM 68UF 20% 160V RADIAL TH |
432 |
|
Datasheet |
URS | Cut Tape (CT) | Active | 68 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 490 mA @ 120 Hz | 784 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
|
EEU-TP1E511BCAP ALUM 510UF 20% 25V RADIAL TH |
368 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 510 µF | ±20% | 25 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 945 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
|
EEU-TP1E331BCAP ALUM 330UF 20% 25V RADIAL TH |
364 |
|
Datasheet |
TP-A | Cut Tape (CT) | Active | 330 µF | ±20% | 25 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 715 mA @ 120 Hz | 945 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
63TXW390MEFC10X30CAP ALUM 390UF 20% 63V RADIAL TH |
1,000 |
|
Datasheet |
TXW | Bulk | Active | 390 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.16 A @ 120 Hz | 2.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.280" (32.50mm) | - | Through Hole | |
|
UBC1H330MNS1GSCAP ALUM 33UF 20% 50V SMD |
980 |
|
Datasheet |
UBC | Tape & Reel (TR) | Not For New Designs | 33 µF | ±20% | 50 V | - | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 46.9 mA @ 120 Hz | 70 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UCX1C101MCS6GSCAP ALUM 100UF 20% 16V SMD |
894 |
|
Datasheet |
UCX | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 16 V | 250mOhm | 2000 Hrs @ 135°C | -40°C ~ 135°C | Polar | - | General Purpose | 98.5 mA @ 120 Hz | 197 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.413" (10.50mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
EEU-HD1H331BCAP ALUM 330UF 20% 50V RADIAL TH |
800 |
|
Datasheet |
HD | Cut Tape (CT) | Active | 330 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 410 mA @ 120 Hz | 615 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UCY2W180MHD6TOCAP ALUM 18UF 20% 450V RADIAL TH |
499 |
|
Datasheet |
UCY | Cut Tape (CT) | Active | 18 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 255 mA @ 120 Hz | 510 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole |
Aluminum Electrolytic Capacitors Electronic Components
Explore Aluminum Electrolytic Capacitors electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
