Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JR400HVCAP TRIMMER 8-40PF 350V SMD |
990 |
|
Datasheet |
JR | Bulk | Active | 8 ~ 40pF | Top | 350 V | Ceramic | 200 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JR300HVCAP TRIMMER 5.5-30PF 350V SMD |
945 |
|
Datasheet |
JR | Bulk | Active | 5.5 ~ 30pF | Top | 350 V | Ceramic | 200 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JR200HVCAP TRIMMER 4.5-20PF 350V SMD |
985 |
|
Datasheet |
JR | Bulk | Active | 4.5 ~ 20pF | Top | 350 V | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JR100HVCAP TRIMMER 2-10PF 350V SMD |
985 |
|
Datasheet |
JR | Bulk | Active | 2 ~ 10pF | Top | 350 V | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JR150HVCAP TRIMMER 3-15PF 350V SMD |
955 |
|
Datasheet |
JR | Bulk | Active | 3 ~ 15pF | Top | 350 V | Ceramic | 500 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
9410-5SL-1R7Thin film |
3,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 8 ~ 50pF | Top | 250 V | - | 250 @ 100MHz | 0.225" Dia (5.72mm) | 0.060" (1.52mm) | -55°C ~ 125°C | Surface Mount | Low Profile |
|
|
KM15HVCAP TRIMMER 1-15PF 750V SMD |
100 |
|
Datasheet |
K_HV | Bulk | Active | 1 ~ 15pF | Top | 750 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.200" Dia (5.08mm) | 0.470" (11.94mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
|
A1M12HVSCAP TRIMMER 0.6-12PF 500V SMD |
360 |
|
Datasheet |
A1_HV | Bulk | Active | 0.6 ~ 12pF | Top | 500 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.120" Dia (3.05mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|

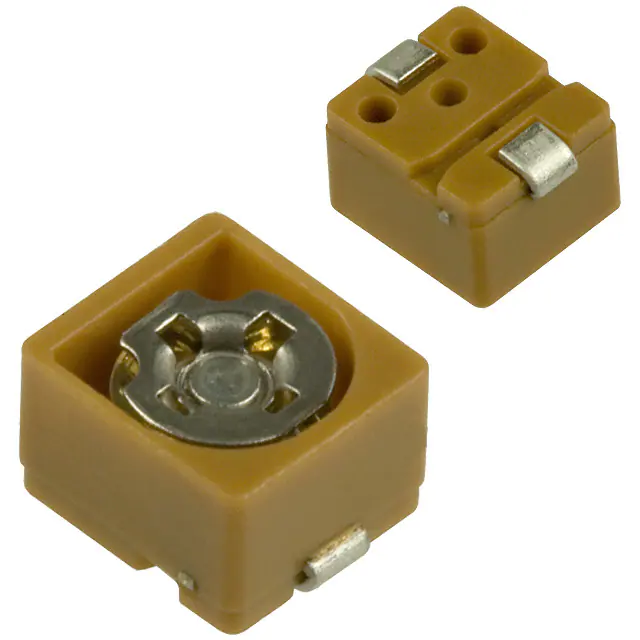

TZB4Z030AA10R00CAP TRIMMER 1.4-3PF 100V SMD |
0 |
|
Datasheet |
TZB4 | Tape & Reel (TR) | Obsolete | 1.4 ~ 3pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
GKH25000CAP TRIMMER 5-25PF 25V SMD |
7,737 |
|
Datasheet |
GKH | Bulk | Obsolete | 5 ~ 25pF | Top | 25 V | Ceramic | 100 @ 1MHz | 0.091" Dia (2.30mm) | 0.047" (1.20mm) | -25°C ~ 85°C | Surface Mount | Low Profile |
|
GKG3R015CAP TRIMMER 1-3PF 100V TH |
944 |
|
Datasheet |
SURFTRIM® GKG | Bulk | Obsolete | 1 ~ 3pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.236" Dia (6.00mm) | 0.197" (5.00mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|
GYA15000CAP TRIMMER 2-15PF 100V TH |
253 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 2 ~ 15pF | Top and Bottom | 100 V | Polypropylene (PP) | 1000 @ 1MHz | 0.335" Dia (8.50mm) | 0.402" (10.20mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
GXL8R000CAP TRIMMER 150V TH |
5,007 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | - | Top | 150 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | - | - | -40°C ~ 125°C | Through Hole | General Purpose |
|
GXL4R000CAP TRIMMER 1.2-4PF 150V TH |
4,086 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 1.2 ~ 4pF | Top | 150 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.217" L x 0.197" W (5.50mm x 5.00mm) | 0.197" (5.00mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
GYD40000CAP TRIMMER 3-40PF 100V TH |
4,251 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 3 ~ 40pF | Side | 100 V | Polypropylene (PP) | 1000 @ 1MHz | 0.433" Dia (11.00mm) | 0.402" (10.20mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
GXL3R000CAP TRIMMER 150V THROUGH HOLE |
5,028 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | - | Top | 150 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | - | - | -40°C ~ 125°C | Through Hole | General Purpose |
|
GXA5R000CAP TRIMMER 1.6-5PF 100V TH |
4,907 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 1.6 ~ 5pF | Top and Bottom | 100 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.335" L x 0.295" W (8.50mm x 7.50mm) | 0.402" (10.20mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
GXE3R511CAP TRIMMER 1-3.5PF 300V TH |
1,805 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 1 ~ 3.5pF | Top and Bottom | 300 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.315" (8.00mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
GXD13000CAP TRIMMER 2-13PF 100V TH |
2,219 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 2 ~ 13pF | Side | 100 V | Polytetrafluoroethylene (PTFE) | 1500 @ 1MHz | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.433" (11.00mm) | -40°C ~ 85°C | Through Hole | General Purpose |
|
GYC20004CAP TRIMMER 3-20PF 100V TH |
349 |
|
Datasheet |
FILMTRIM® | Bulk | Obsolete | 3 ~ 20pF | Top and Bottom | 100 V | Polypropylene (PP) | 1000 @ 1MHz | 0.433" L x 0.374" W (11.00mm x 9.50mm) | 0.402" (10.20mm) | -40°C ~ 70°C | Through Hole | General Purpose |
