Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JZ150HVCAP TRIMMER 3-15PF 350V SMD |
19,745 |
|
Datasheet |
JZ_HV | Tape & Reel (TR) | Active | 3 ~ 15pF | Top | 350 V | Ceramic | 1500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|

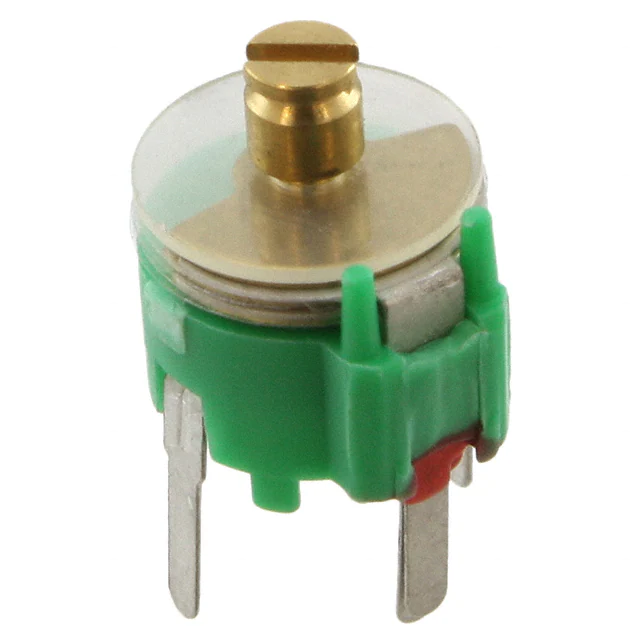

BFC280811229CAP TRIMMER 2.5-22PF 250V TH |
1,068 |
|
Datasheet |
BFC2 808 | Bulk | Active | 2.5 ~ 22pF | Top and Bottom | 250 V | Polypropylene (PP) | - | 0.299" Dia (7.60mm) | 0.394" (10.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
JZ500HVCAP CER TRIM SMD |
1,589 |
|
Datasheet |
JZ_HV | Tape & Reel (TR) | Active | 8 ~ 50pF | Top | 125 V | Ceramic | - | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
BFC280831409CAP TRIMMER 5.5-40PF 150V TH |
1,770 |
|
Datasheet |
BFC2 808 | Bulk | Active | 5.5 ~ 40pF | Top and Bottom | 150 V | Polypropylene (PP) | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
9402-2CAP TRIMMER 2.5-10PF 250V SMD |
980 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 2.5 ~ 10pF | Top | 250 V | - | 1000 @ 100MHz | 0.141" Dia (3.58mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9402-0CAP TRIMMER 0.5-2.5PF 250V SMD |
640 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 0.5 ~ 2.5pF | Top | 250 V | - | 3000 @ 100MHz | 0.141" Dia (3.58mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9702-2SL-1CAP TRIMMER 2.5-10PF 250V SMD |
936 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 2.5 ~ 10pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.145" Dia (3.68mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9702-1SL-1CAP TRIMMER 1-5PF 250V SMD |
696 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 1 ~ 5pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.145" Dia (3.68mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
2322-2GCAP TRIMMER 2.5-10PF 250V SMD |
794 |
|
Datasheet |
Cera-Trim® | Bulk | Active | 2.5 ~ 10pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|

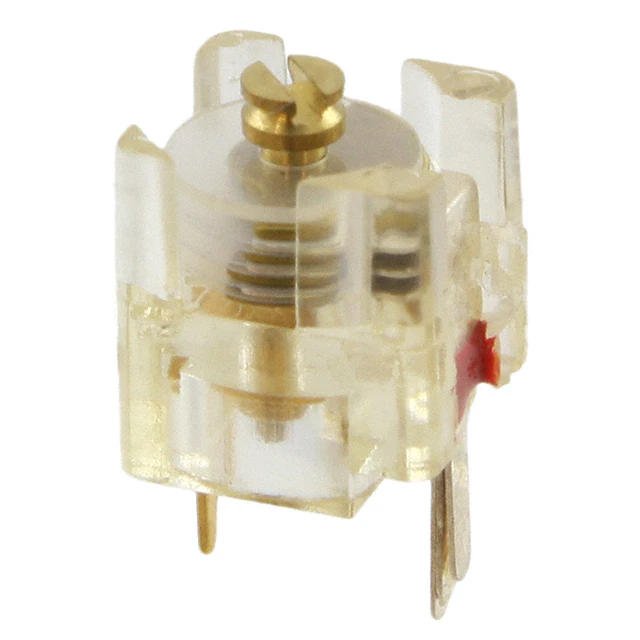

BFC280905217CAP TRIMMER 2-18PF 300V TH |
6,478 |
|
Datasheet |
BFC2 809 | Bulk | Active | 2 ~ 18pF | Top and Bottom | 300 V | - | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.354" (9.00mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
9702-0SL-1CAP TRIMMER 0.5-2.5PF 250V SMD |
943 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 0.5 ~ 2.5pF | Top | 250 V | Ceramic | 3000 @ 100MHz | 0.145" Dia (3.68mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9410-2CAP TRIMMER 4-18PF 250V SMD |
1,033 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 4 ~ 18pF | Top | 250 V | - | 700 @ 100MHz | 0.225" Dia (5.72mm) | 0.060" (1.52mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
2320-3R1CAP TRIMMER 5-18PF 250V SMD |
1,506 |
|
Datasheet |
Cera-Trim® | Tape & Reel (TR) | Active | 5 ~ 18pF | Top | 250 V | Ceramic | 500 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
|
2320-2R1CAP TRIMMER 2.5-10PF 250V SMD |
710 |
|
Datasheet |
Cera-Trim® | Tape & Reel (TR) | Active | 2.5 ~ 10pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
2322-0GSLR1CAP TRIMMER 0.6-2.5PF 250V SMD |
1,558 |
|
Datasheet |
Cera-Trim® | Tape & Reel (TR) | Active | 0.6 ~ 2.5pF | Top | 250 V | Ceramic | 3000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
|
27263-2R2CAP TRIMMER 0.3-1.2PF 500V SMD |
1,414 |
|
Datasheet |
Giga-Trim® | Tape & Reel (TR) | Active | 0.3 ~ 1.2pF | Top | 500 V | Sapphire | 5000 @ 250MHz | 0.094" Dia (2.39mm) | 0.225" (5.72mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|

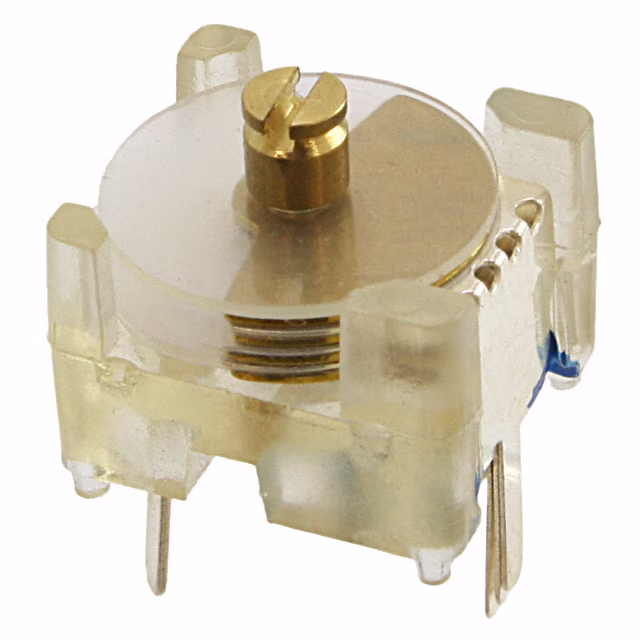

BFC280908003CAP TRIMMER 5-57PF 250V TH |
133 |
|
Datasheet |
BFC2 809 | Bulk | Active | 5 ~ 57pF | Top and Bottom | 250 V | - | - | 0.429" L x 0.413" W (10.90mm x 10.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
A4M3CAP TRIMMER 0.45-3PF 125V SMD |
180 |
|
Datasheet |
- | Bulk | Active | 0.45 ~ 3pF | Top | 125 V | Polytetrafluoroethylene (PTFE) | 3000 @ 100MHz | 0.160" Dia (4.06mm) | 0.225" (5.72mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
9611SLCAP TRIMMER 2.5-10PF 250V SMD |
180 |
|
Datasheet |
Seal-Trim® | Bulk | Active | 2.5 ~ 10pF | Top | 250 V | - | 1000 @ 100MHz | 0.270" Dia (6.86mm) | 0.100" (2.54mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
57283-1CAP TRIMMER 0.6-4.5PF 500V SMD |
283 |
|
Datasheet |
Giga-Trim® | Bulk | Active | 0.6 ~ 4.5pF | Top | 500 V | Zirconia | 1000 @ 200MHz | 0.150" Dia (3.81mm) | 0.230" (5.84mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
