Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
27271SLCAP TRIMMER 0.6-4.5PF 500V SMD |
525 |
|
Datasheet |
Giga-Trim® | Bulk | Active | 0.6 ~ 4.5pF | Side | 500 V | Sapphire | 3000 @ 250MHz | 0.140" Dia (3.56mm) | - | -65°C ~ 125°C | Surface Mount | General Purpose |
|
|
5401CAP TRIMMER |
261 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
5453CAP TRIMMER 1-16PF 250V TH |
139 |
|
Datasheet |
- | Bulk | Active | 1 ~ 16pF | Top | 250 V | Air | 3000 @ 100MHz | 0.295" Dia (7.49mm) | - | -65°C ~ 125°C | Through Hole | General Purpose |
|
AF15HVCAP TRIMMER 1-16PF 1000V TH |
2,224 |
|
Datasheet |
- | Bulk | Active | 1 ~ 16pF | Top | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.220" Dia (5.59mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
AP25HVCAP TRIMMER 1-23PF 750V TH |
293 |
|
Datasheet |
- | Bulk | Active | 1 ~ 23pF | Side | 750 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.220" Dia (5.59mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|

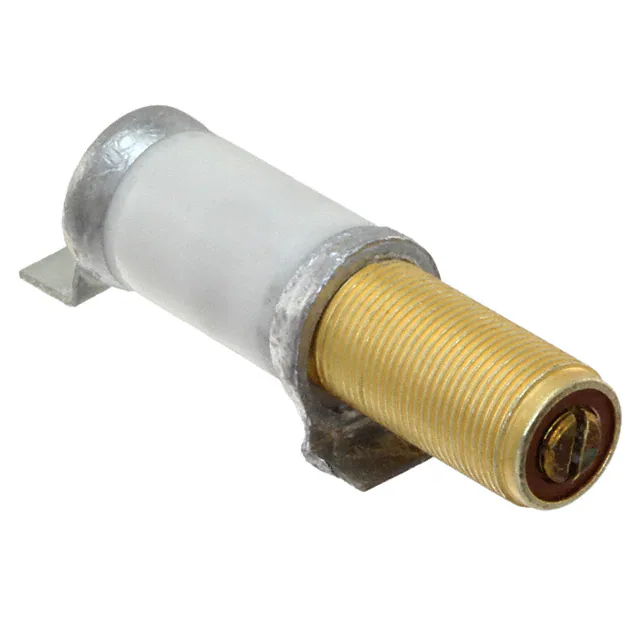

AJ40HVCAP TRIMMER 1.5-40PF 1000V SMD |
119 |
|
Datasheet |
A_HV | Bulk | Active | 1.5 ~ 40pF | Side | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 1.000" (25.40mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
|
AJ55HVCAP TRIMMER 1.5-55PF 600V SMD |
112 |
|
Datasheet |
A_HV | Bulk | Active | 1.5 ~ 55pF | Side | 600 V | Polytetrafluoroethylene (PTFE) | 780 @ 100MHz | 0.300" Dia (7.62mm) | 1.000" (25.40mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|

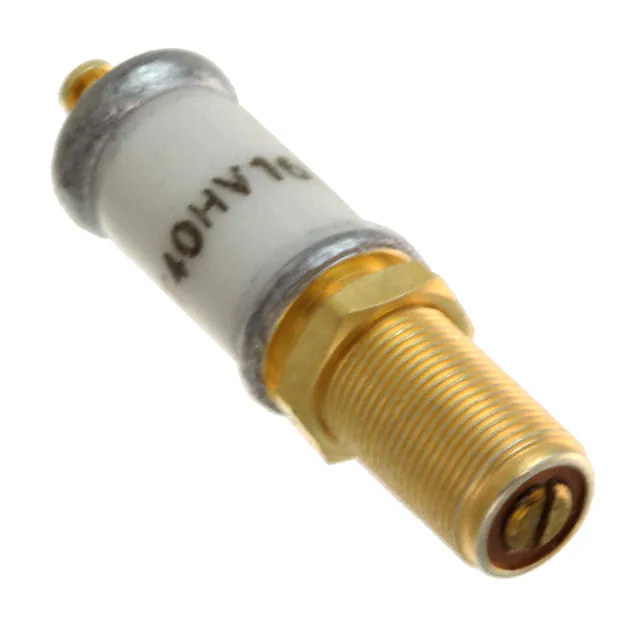

AT40HVCAP TRIM 1.5-40PF 1000V PNL MNT |
31 |
|
Datasheet |
A_HV | Bulk | Active | 1.5 ~ 40pF | Top | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 0.980" (24.89mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|
|
AJ20-4CAP TRIMMER 0.8-20PF 2000V SMD |
61 |
|
Datasheet |
A | Bulk | Active | 0.8 ~ 20pF | Side | 2000 V | Air | 3000 @ 100MHz | 0.300" Dia (7.62mm) | 1.000" (25.40mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
NMA1J12HVSCAP TRIMMER 0.6-12PF 500V SMD |
35 |
|
Datasheet |
A1_HV | Bulk | Active | 0.6 ~ 12pF | Side | 500 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.120" Dia (3.05mm) | 0.460" (11.68mm) | -65°C ~ 125°C | Surface Mount | Non-Magnetic |
|
|
GKG10086CAP TRIMMER 3-10PF 100V SMD |
3,139 |
|
Datasheet |
SURFTRIM® GKG | Bulk | Active | 3 ~ 10pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.118" (3.00mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
BFC280823109CAP TRIMMER 3-10PF 150V TH |
762 |
|
Datasheet |
BFC2 808 | Bulk | Active | 3 ~ 10pF | Top and Bottom | 150 V | Polypropylene (PP) | - | 0.299" Dia (7.60mm) | 0.394" (10.00mm) | -40°C ~ 70°C | Through Hole | General Purpose |
|
|
9701-0SL-1CAP TRIMMER 0.25-0.7PF 250V SMD |
1,499 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 0.25 ~ 0.7pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.150" Dia (3.81mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9702-2CAP TRIMMER 2.5-10PF 250V SMD |
434 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 2.5 ~ 10pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.145" Dia (3.68mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9410-25CAP TRIMMER 5-25PF 250V SMD |
187 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 5 ~ 25pF | Top | 250 V | - | 200 @ 100MHz | 0.225" Dia (5.72mm) | 0.060" (1.52mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
BFC280905215CAP TRIMMER 1.2-3.5PF 300V TH |
472 |
|
Datasheet |
BFC2 809 | Bulk | Active | 1.2 ~ 3.5pF | Top and Bottom | 300 V | - | - | 0.291" L x 0.264" W (7.40mm x 6.70mm) | 0.354" (9.00mm) | -40°C ~ 125°C | Through Hole | General Purpose |
|
|
9701-0SL-1R3CAP TRIMMER 0.25-0.7PF 250V SMD |
1,777 |
|
Datasheet |
Thin-Trim® | Tape & Reel (TR) | Active | 0.25 ~ 0.7pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.150" Dia (3.81mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
|
9401-0SL-1CAP TRIMMER 0.25-0.7PF 250V SMD |
459 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 0.25 ~ 0.7pF | Top | 250 V | - | 1000 @ 100MHz | 0.150" Dia (3.81mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
2322-0GR1CAP TRIMMER 0.6-2.5PF 250V SMD |
3,863 |
|
Datasheet |
Cera-Trim® | Tape & Reel (TR) | Active | 0.6 ~ 2.5pF | Top | 250 V | Ceramic | 3000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
|
2322-4GR1CAP TRIMMER 8.5-25PF 250V SMD |
406 |
|
Datasheet |
Cera-Trim® | Tape & Reel (TR) | Active | 8.5 ~ 25pF | Top | 250 V | Ceramic | 300 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
