Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GKG20015CAP TRIMMER 5-20PF 100V TH |
2,348 |
|
Datasheet |
SURFTRIM® GKG | Bulk | Active | 5 ~ 20pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.236" Dia (6.00mm) | 0.197" (5.00mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|

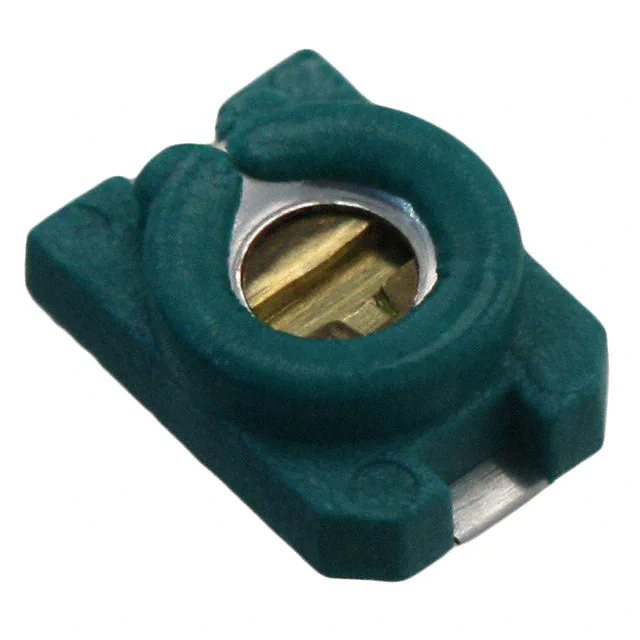

SGC3S300CAP TRIM 8.0-29PF 100V SMD |
18,825 |
|
Datasheet |
SGC3S | Tape & Reel (TR) | Active | 8 ~ 29pF | Top | 100 V | Ceramic | 250 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|

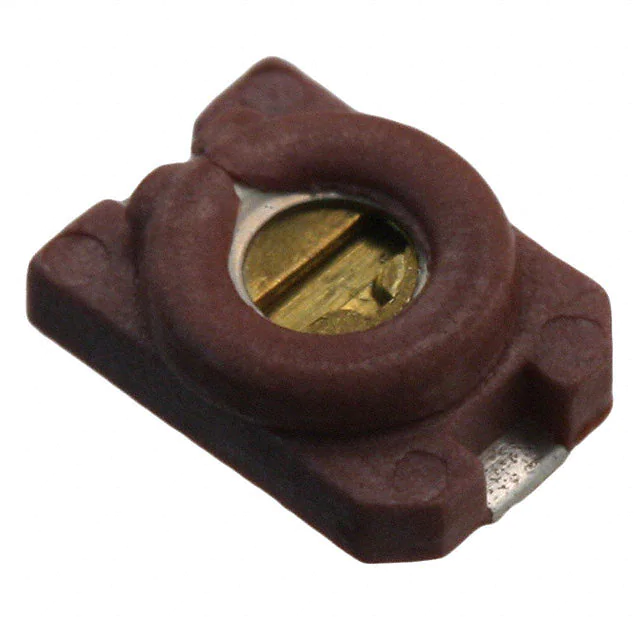

SGC3S200NMCAP TRIMMER 5.5-20PF 100V SMD |
14,241 |
|
Datasheet |
SGC3S | Tape & Reel (TR) | Active | 5.5 ~ 20pF | Top | 100 V | Ceramic | 250 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -40°C ~ 85°C | Surface Mount | Low Profile, Non-Magnetic |
|
SGC3S100NMCAP TRIMMER 3-10PF 100V SMD |
14,107 |
|
Datasheet |
SGC3S | Tape & Reel (TR) | Active | 3 ~ 10pF | Top | 100 V | Ceramic | 600 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -40°C ~ 85°C | Surface Mount | Low Profile, Non-Magnetic |
|
SGC3S030CAP TRIMMER 1.8-4.5PF 100V SMD |
7,321 |
|
Datasheet |
SGC3S | Tape & Reel (TR) | Active | 1.5 ~ 3pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|

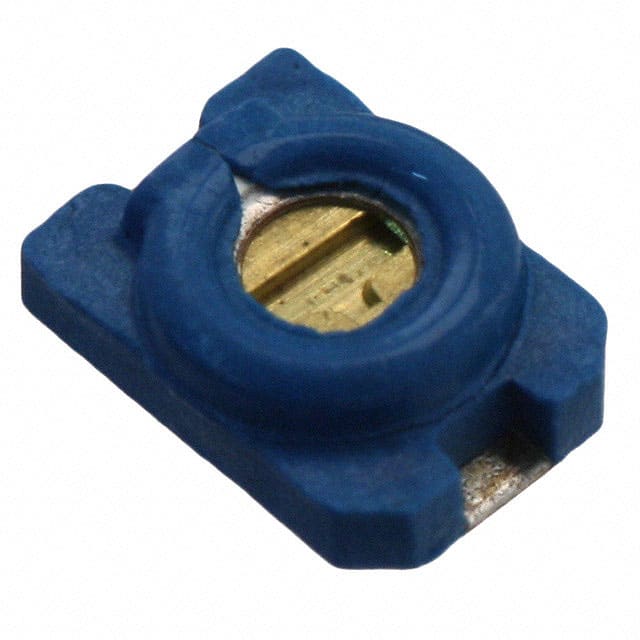

SGC3S060NMCAP TRIMMER 2-6PF 100V SMD |
5,590 |
|
Datasheet |
SGC3S | Tape & Reel (TR) | Active | 2 ~ 6pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -25°C ~ 85°C | Surface Mount | Low Profile, Non-Magnetic |
|
SGC3S200CAP TRIMMER 5.5-20PF 100V SMD |
3,394 |
|
Datasheet |
SGC3S | Tape & Reel (TR) | Active | 5.8 ~ 20pF | Top | 100 V | Ceramic | 250 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -40°C ~ 85°C | Surface Mount | Low Profile |
|

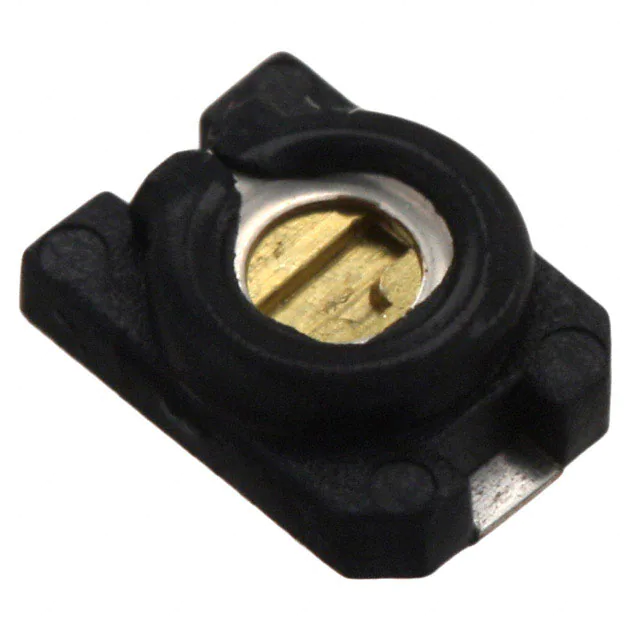

SGC3S030NMCAP TRIMMER 1.8-4.5PF 100V SMD |
2,921 |
|
Datasheet |
SGC3S | Tape & Reel (TR) | Active | 1.8 ~ 4.5pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -40°C ~ 85°C | Surface Mount | Low Profile, Non-Magnetic |
|
LXRW0YV330-056CAP TRIMMER 16.5-33PF 50V SMD |
23,602 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 16.5 ~ 33pF | - | 50 V | - | - | 0.024" L x 0.024" W (0.60mm x 0.60mm) | 0.012" (0.30mm) | -30°C ~ 85°C | Surface Mount | Voltage Tuning |
|
|
LXRW19V330-050CAP TRIMMER 16.5-33PF 50V SMD |
2,801 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 16.5 ~ 33pF | - | 50 V | - | - | 0.051" L x 0.035" W (1.30mm x 0.90mm) | 0.024" (0.60mm) | -30°C ~ 85°C | Surface Mount | Voltage Tuning |
|
|
LXRW19V600-055CAP TRIMMER 30-60PF 50V SMD |
1,658 |
|
Datasheet |
- | Tape & Reel (TR) | Active | 30 ~ 60pF | - | 50 V | - | - | 0.051" L x 0.035" W (1.30mm x 0.90mm) | 0.024" (0.60mm) | -30°C ~ 85°C | Surface Mount | Voltage Tuning |
|
|
LXRW0YV201-059CAP TRIM 100-200PF 50V SMD |
27,122 |
|
Datasheet |
LXRW | Tape & Reel (TR) | Active | 100 ~ 200pF | Top | 50 V | - | - | 0.024" L x 0.024" W (0.60mm x 0.60mm) | 0.011" (0.28mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

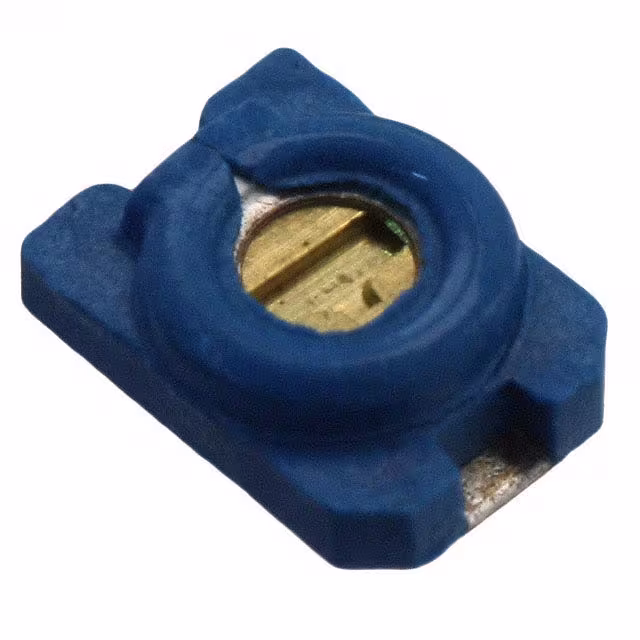

SGC3S060CAP TRIMMER 2-6PF 100V SMD |
5,282 |
|
Datasheet |
SGC3S | Tape & Reel (TR) | Active | 2 ~ 6pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.061" (1.54mm) | -25°C ~ 85°C | Surface Mount | Low Profile |
|
GKG40015CAP TRIMMER 7-40PF 100V TH |
1,612 |
|
Datasheet |
SURFTRIM® GKG | Bulk | Active | 7 ~ 40pF | Top | 100 V | Ceramic | 200 @ 1MHz | 0.236" Dia (6.00mm) | 0.197" (5.00mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|
GKG30086CAP TRIMMER 6.5-30PF 100V SMD |
3,342 |
|
Datasheet |
SURFTRIM® GKG | Bulk | Active | 6.5 ~ 30pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.118" (3.00mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
GKG20086-05CAP TRIM 4.5-20PF 100V SMD |
1,635 |
|
Datasheet |
SURFTRIM® GKG | Tape & Reel (TR) | Active | 4.5 ~ 20pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.114" (2.90mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
9350-2R1Trimmer SMD 2-6 pf |
2,000 |
|
Datasheet |
9350 | Tape & Reel (TR) | Active | 2 ~ 6pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.059" (1.50mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
JR500CAP TRIMMER 8-50PF 125V SMD |
568 |
|
Datasheet |
JR | Bulk | Active | 8 ~ 50pF | Top | 125 V | Ceramic | 200 @ 1MHz | 0.138" L x 0.122" W (3.50mm x 3.10mm) | 0.045" (1.15mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
JZ030HVCAP TRIMMER 1.5-3PF 350V SMD |
22,660 |
|
Datasheet |
JZ_HV | Tape & Reel (TR) | Active | 1.5 ~ 3pF | Top | 350 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
|
|
JZ060HVCAP TRIMMER 2-6PF 350V SMD |
10,595 |
|
Datasheet |
JZ_HV | Tape & Reel (TR) | Active | 2 ~ 6pF | Top | 350 V | Ceramic | 1000 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.057" (1.45mm) | -40°C ~ 85°C | Surface Mount | General Purpose |
