Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9814CAP TRIMMER 7-40PF 250V TH |
85 |
|
Datasheet |
Seal-Trim® | Bulk | Active | 7 ~ 40pF | Top | 250 V | - | 200 @ 100MHz | 0.270" Dia (6.86mm) | 0.110" (2.79mm) | -55°C ~ 125°C | Through Hole | Sealed |
|
A4W3HVCAP TRIMMER 0.45-3PF 500V SMD |
68 |
|
Datasheet |
- | Bulk | Active | 0.45 ~ 3pF | Top | 500 V | Polytetrafluoroethylene (PTFE) | 3000 @ 100MHz | 0.150" Dia (3.81mm) | 0.220" (5.59mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
AT10HVCAP TRIMMER 1-10PF 1000V PNL MNT |
7 |
|
Datasheet |
- | Bulk | Active | 1 ~ 10pF | Top | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.280" Dia (7.11mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|
NMNT23-6CAP TRIMMER 3-23PF 3000V PNL MNT |
11 |
|
Datasheet |
NT | Bulk | Active | 3 ~ 23pF | Top | 3000 V | Polytetrafluoroethylene (PTFE) | - | 0.380" Dia (9.65mm) | 1.700" (43.18mm) | -65°C ~ 125°C | Panel Mount | Non-Magnetic |
|
NMNT70-6CAP TRIM 2.5-70PF 3000V PNL MNT |
6 |
|
Datasheet |
NMNT | Bulk | Active | 2.5 ~ 70pF | Top | 3000 V | Polytetrafluoroethylene (PTFE) | - | 0.700" Dia (17.78mm) | 3.000" (76.20mm) | - | Panel Mount | Non-Magnetic |
|
9402-0SL-1CAP TRIMMER 0.5-2.5PF 250V SMD |
25 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 0.5 ~ 2.5pF | Top | 250 V | - | 3000 @ 100MHz | 0.141" Dia (3.58mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
9402-6SL-1CAP TRIMMER 6-25PF 250V SMD |
11 |
|
Datasheet |
Thin-Trim® | Bulk | Active | 6 ~ 25pF | Top | 250 V | - | 300 @ 100MHz | 0.141" Dia (3.58mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | General Purpose |
|
2320-2CAP TRIMMER 2.5-10PF 250V SMD |
25 |
|
Datasheet |
Cera-Trim® | Bulk | Active | 2.5 ~ 10pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.180" L x 0.167" W (4.57mm x 4.24mm) | 0.086" (2.18mm) | -55°C ~ 125°C | Surface Mount | Sealed |
|
|
9610CAP TRIMMER 1.5-4.5PF 250V TH |
25 |
|
Datasheet |
Seal-Trim® | Bulk | Active | 1.5 ~ 4.5pF | Top | 250 V | - | 1000 @ 100MHz | 0.270" Dia (6.86mm) | 0.100" (2.54mm) | -55°C ~ 125°C | Through Hole | Sealed |
|
|
5750CAP TRIMMER 0.8-10PF 250V PNL MT |
58 |
|
Datasheet |
- | Bulk | Active | 0.8 ~ 10pF | Top | 250 V | Air | 7500 @ 100MHz | 0.235" Dia (5.97mm) | - | -65°C ~ 125°C | Panel Mount | Sealed |
|
27273LCAP TRIMMER |
73 |
|
Datasheet |
Giga-Trim® | Bulk | Active | - | - | - | Sapphire | 3000 @ 250MHz | 0.140" Dia (3.56mm) | 0.314" (7.98mm) | -65°C ~ 125°C | - | - |
|
A1J4CAP TRIMMER 0.45-4PF 250V SMD |
64 |
|
Datasheet |
- | Bulk | Active | 0.45 ~ 4pF | Side | 250 V | Polytetrafluoroethylene (PTFE) | 4000 @ 100MHz | 0.160" Dia (4.06mm) | 0.260" (6.60mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|

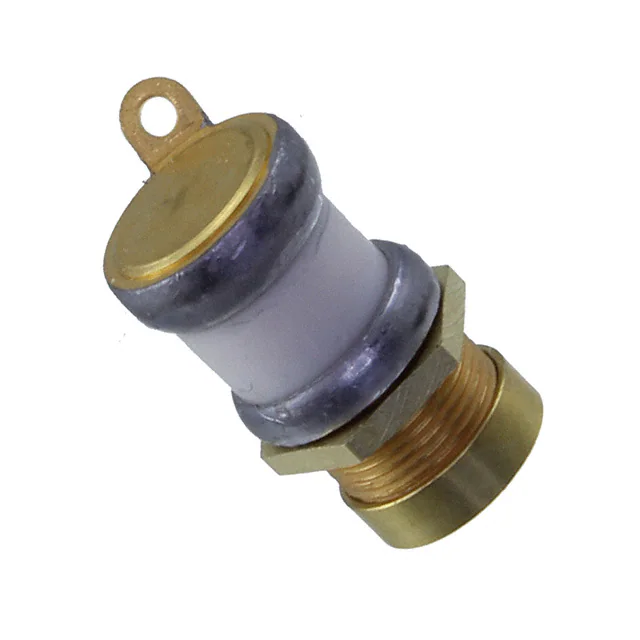

5200CAP TRIMMER 0.8-10PF 250V PNL MT |
58 |
|
Datasheet |
- | Bulk | Active | 0.8 ~ 10pF | Top | 250 V | Air | 5000 @ 100MHz | 0.280" Dia (7.11mm) | - | -65°C ~ 125°C | Panel Mount | Sealed |
|
A1J8CAP TRIMMER 0.5-8PF 125V SMD |
41 |
|
Datasheet |
- | Bulk | Active | 0.5 ~ 8pF | Side | 125 V | Polytetrafluoroethylene (PTFE) | 3000 @ 100MHz | 0.160" Dia (4.06mm) | 0.260" (6.60mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
AP10CAP TRIMMER 1-10PF 250V TH |
49 |
|
Datasheet |
- | Bulk | Active | 1 ~ 10pF | Side | 250 V | Polytetrafluoroethylene (PTFE) | 5000 @ 100MHz | 0.220" Dia (5.59mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
|
AF10CAP TRIMMER 1-10PF 250V TH |
10 |
|
Datasheet |
A | Bulk | Active | 1 ~ 10pF | Top | 250 V | Air | 5000 @ 100MHz | 0.300" Dia (7.62mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
AP40SDCAP TRIMMER 1.5-40PF 250V TH |
2 |
|
Datasheet |
- | Bulk | Active | 1.5 ~ 40pF | Side | 250 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.220" Dia (5.59mm) | 1.000" (25.40mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
|
9701-0Thin film |
28 |
|
Datasheet |
- | Bulk | Active | 0.25 ~ 0.7pF | Top | 250 V | Ceramic | 1000 @ 100MHz | 0.225" Dia (5.72mm) | 0.040" (1.02mm) | -55°C ~ 125°C | Surface Mount | Low Profile |
|
|
27281SLCAP TRIMMER |
10 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - |
|
|
A1J12CAP TRIMMER 0.6-12PF 125V SMD |
22 |
|
Datasheet |
A1 | Bulk | Active | 0.6 ~ 12pF | Side | 125 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.120" Dia (3.05mm) | 0.460" (11.68mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
