Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
27273CAP TRIMMER 0.6-4.5PF 500V SMD |
709 |
|
Datasheet |
Giga-Trim® | Bulk | Active | 0.6 ~ 4.5pF | Top | 500 V | Sapphire | 3000 @ 250MHz | 0.140" Dia (3.56mm) | 0.314" (7.98mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
27273-3R5CAP TRIMMER 0.6-4.5PF 500V SMD |
1,545 |
|
Datasheet |
Giga-Trim® | Tape & Reel (TR) | Active | 0.6 ~ 4.5pF | Top | 500 V | Sapphire | 3000 @ 250MHz | 0.140" Dia (3.56mm) | 0.314" (7.98mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
57273-1CAP TRIMMER 0.8-8PF 500V SMD |
175 |
|
Datasheet |
Giga-Trim® | Bulk | Active | 0.8 ~ 8pF | Top | 500 V | Zirconia | 2000 @ 100MHz | 0.150" Dia (3.81mm) | 0.330" (8.38mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
27293CAP TRIMMER 0.8-8PF 500V SMD |
369 |
|
Datasheet |
Giga-Trim® | Bulk | Active | 0.8 ~ 8pF | Top | 500 V | Sapphire | 3000 @ 100MHz | 0.140" Dia (3.56mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
27291SLCAP TRIMMER 0.8-8PF 500V SMD |
541 |
|
Datasheet |
Giga-Trim® | Bulk | Active | 0.8 ~ 8pF | Side | 500 V | Sapphire | 3000 @ 100MHz | 0.140" Dia (3.56mm) | - | -65°C ~ 125°C | Surface Mount | General Purpose |
|
5501CAP TRIMMER 1-20PF 250V TH |
171 |
|
Datasheet |
- | Bulk | Active | 1 ~ 20pF | Side | 250 V | Air | 1500 @ 100MHz | 0.295" Dia (7.49mm) | - | -65°C ~ 125°C | Through Hole | Sealed |
|
5502CAP TRIMMER 1-20PF 250V PNL MNT |
102 |
|
Datasheet |
- | Bulk | Active | 1 ~ 20pF | Top | 250 V | Air | 1500 @ 100MHz | 0.280" Dia (7.11mm) | - | -65°C ~ 125°C | Panel Mount | Sealed |
|

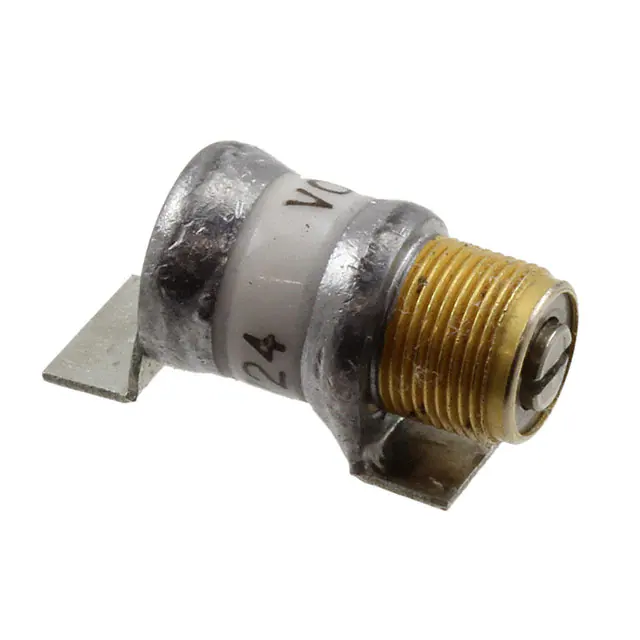

AJ25HVCAP TRIMMER 1-23PF 750V SMD |
535 |
|
Datasheet |
- | Bulk | Active | 1 ~ 23pF | Side | 750 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.250" Dia (6.35mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|
8052CAP TRIMMER 0.8-10PF 250V TH |
1,767 |
|
Datasheet |
- | Bulk | Active | 0.8 ~ 10pF | Top | 250 V | Air | 5000 @ 100MHz | 0.295" Dia (7.49mm) | - | -65°C ~ 125°C | Through Hole | General Purpose |
|
5602CAP TRIMMER 1-30PF 250V PNL MNT |
194 |
|
Datasheet |
- | Bulk | Active | 1 ~ 30pF | Top | 250 V | Air | 800 @ 100MHz | 0.280" Dia (7.11mm) | - | -65°C ~ 125°C | Panel Mount | Sealed |
|
AM15HVCAP TRIMMER 1-16PF 1000V SMD |
2,765 |
|
Datasheet |
A_HV | Bulk | Active | 1 ~ 16pF | Top | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 0.480" (12.19mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|

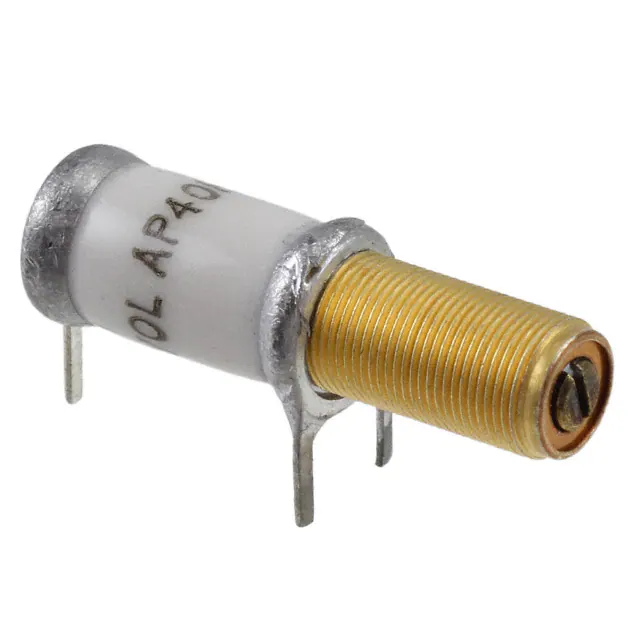

AP40HVCAP TRIMMER 1.5-40PF 1000V TH |
1,163 |
|
Datasheet |
- | Bulk | Active | 1.5 ~ 40pF | Side | 1000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.220" Dia (5.59mm) | 1.000" (25.40mm) | -65°C ~ 125°C | Through Hole | General Purpose |
|
A1M8HVCAP TRIMMER 0.5-8PF 500V SMD |
2,697 |
|
Datasheet |
- | Bulk | Active | 0.5 ~ 8pF | Top | 500 V | Polytetrafluoroethylene (PTFE) | 3000 @ 100MHz | 0.160" Dia (4.06mm) | 0.260" (6.60mm) | -65°C ~ 125°C | Surface Mount | General Purpose |
|

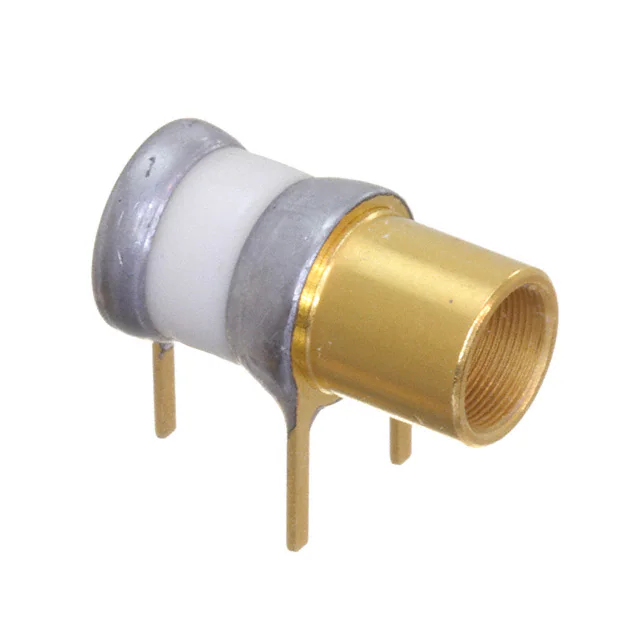

52H01CAP TRIMMER 1.5-10PF 1250V TH |
256 |
|
Datasheet |
- | Bulk | Active | 1.5 ~ 10pF | Side | 1250 V | - | 1400 @ 195MHz | 0.295" Dia (7.49mm) | - | -65°C ~ 125°C | Through Hole | Non-Magnetic |
|
AT10-4CAP TRIM 0.8-10PF 2000V PNL MNT |
136 |
|
Datasheet |
- | Bulk | Active | 0.8 ~ 10pF | Top | 2000 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.280" Dia (7.11mm) | 0.660" (16.76mm) | -65°C ~ 125°C | Panel Mount | General Purpose |
|
|
55H01CAP TRIMMER 1.5-19PF 1000V TH |
598 |
|
Datasheet |
- | Bulk | Active | 1.5 ~ 19pF | Side | 1000 V | - | 1000 @ 175MHz | 0.295" Dia (7.49mm) | - | -65°C ~ 125°C | Through Hole | Non-Magnetic |
|
V9000CAP TRIMMER 1-12PF 2000V SMD |
147 |
|
Datasheet |
- | Bulk | Active | 1 ~ 12pF | Side | 2000 V | Sapphire | 3000 @ 100MHz | - | 0.470" (11.94mm) | -55°C ~ 125°C | Surface Mount | Non-Magnetic |
|
NMAJ25HVCAP TRIMMER 1-23PF 750V SMD |
29 |
|
Datasheet |
A_HV | Bulk | Active | 1 ~ 23pF | Side | 750 V | Polytetrafluoroethylene (PTFE) | 2000 @ 100MHz | 0.300" Dia (7.62mm) | 0.500" (12.70mm) | -65°C ~ 125°C | Surface Mount | Non-Magnetic |
|
GKG50015CAP TRIMMER 10-50PF 100V TH |
7,988 |
|
Datasheet |
SURFTRIM® GKG | Bulk | Active | 10 ~ 50pF | Top | 100 V | Ceramic | 200 @ 1MHz | 0.236" Dia (6.00mm) | 0.197" (5.00mm) | -25°C ~ 85°C | Through Hole | General Purpose |
|
GKG3R015CAP TRIMMER 1-3PF 100V TH |
4,432 |
|
Datasheet |
SURFTRIM® GKG | Bulk | Active | 1 ~ 3pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.236" Dia (6.00mm) | 0.197" (5.00mm) | -25°C ~ 85°C | Through Hole | General Purpose |
