Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATE2N-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE2N-5M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

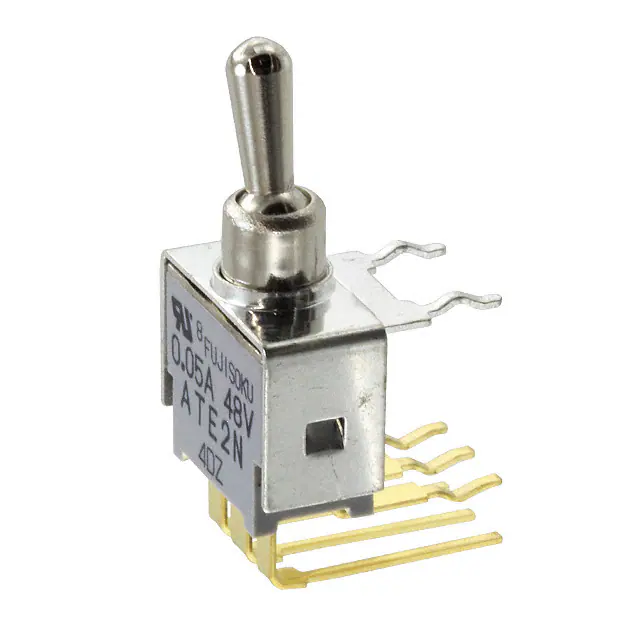

ATE2N-6M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATLE42D-6M3-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATLE4 | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
|
ATLE42E-6M3-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATLE4 | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
ATLE44D-2M4-ZSWITCH TOGGLE 4PDT 50MA 48V |
0 |
|
Datasheet |
ATLE4 | Tray | Obsolete | Through Hole | 4PDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
CFT2-1FC4-AWSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
CFT2 | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
CFT2-1FC-AWSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
CFT2 | Tray | Obsolete | Through Hole | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
CFT2-2NC6-AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
CFT2 | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
CFT2-2NC-AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
CFT2 | Tray | Obsolete | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
|
CFT2-2PC-AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
CFT2 | Tray | Obsolete | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
CFT2-2RC-AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
CFT2 | Tray | Obsolete | Through Hole | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
|
CFT2-2SC6-AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
CFT2 | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|

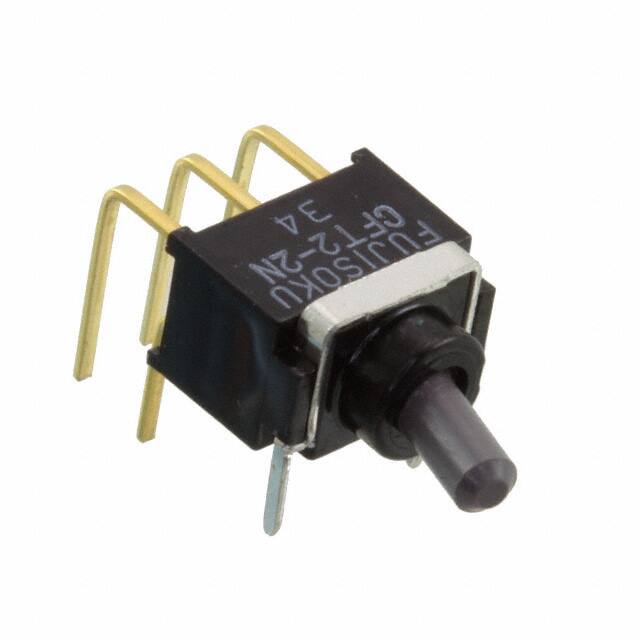

CFT2-2TC4-AWSWITCH TOGGLE DPDT 0.4VA 28V |
0 |
|
Datasheet |
CFT2 | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
TBS1T2A1MZRESSWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | Surface Mount, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | SMD (SMT) Tab | - | Unthreaded | - | Process Sealed | -30°C ~ 85°C |
|
|
P2021ESWITCH TOGGLE DPST 10A 125V |
0 |
|
Datasheet |
P | Bulk | Obsolete | Panel Mount | DPST | On-Off | 10A (AC) | 125 V | - | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | M6 x 0.75 | - | - | -10°C ~ 85°C |
|
3105DSWITCH TOGGLE SPST 6A 125V |
0 |
|
Datasheet |
3100 | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC) | 125 V | - | Standard Round | 14.22mm | Non-Illuminated | - | - | Wire Leads | - | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 65°C |
|
|
1-1825138-2SWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825139-5SWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825137-7SWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
Toggle Switches Electronic Components
Explore Toggle Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
