Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8F2051-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -20°C ~ 85°C |
|
|
8F2061-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -20°C ~ 85°C |
|
8F3011-ZSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -20°C ~ 85°C |
|
8G1014C-ZSWITCH TOGGLE SPDT 25MA 20V |
0 |
|
Datasheet |
8G | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
8G1044-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8G | Bulk | Obsolete | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|
8G1066-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8G | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -25°C ~ 80°C |
|

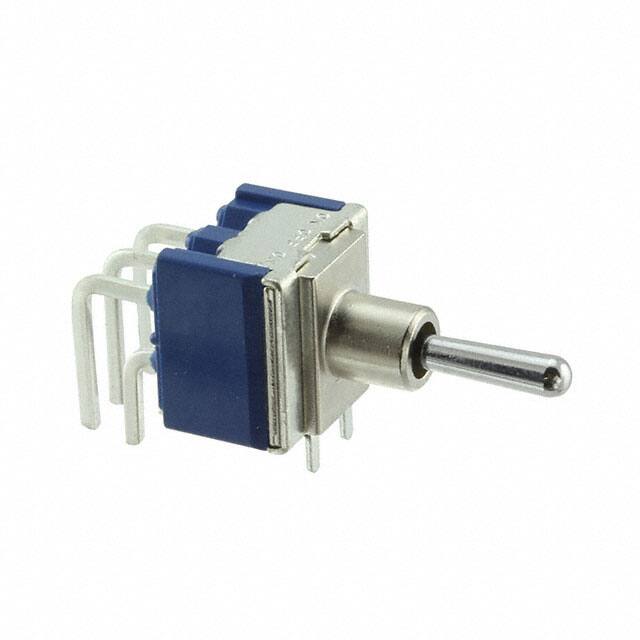

8GA2014-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
8GA2016-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
8GA2022-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
|
8GA2024-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8GA | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

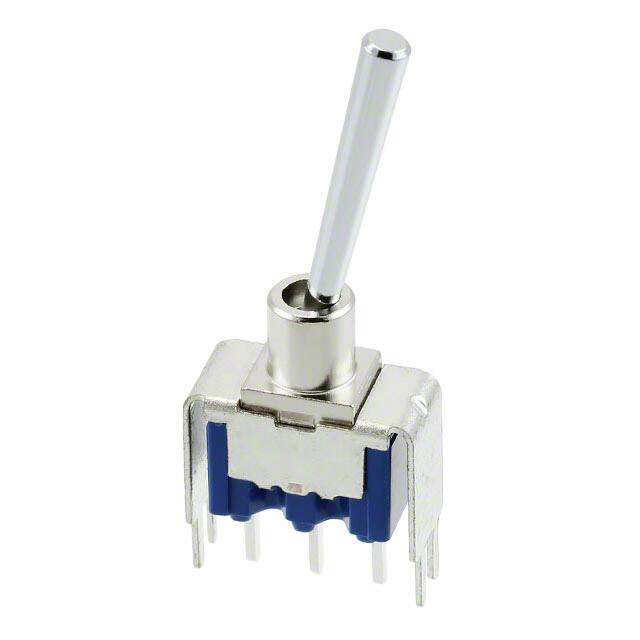

8GD1012-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8GD | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 21.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

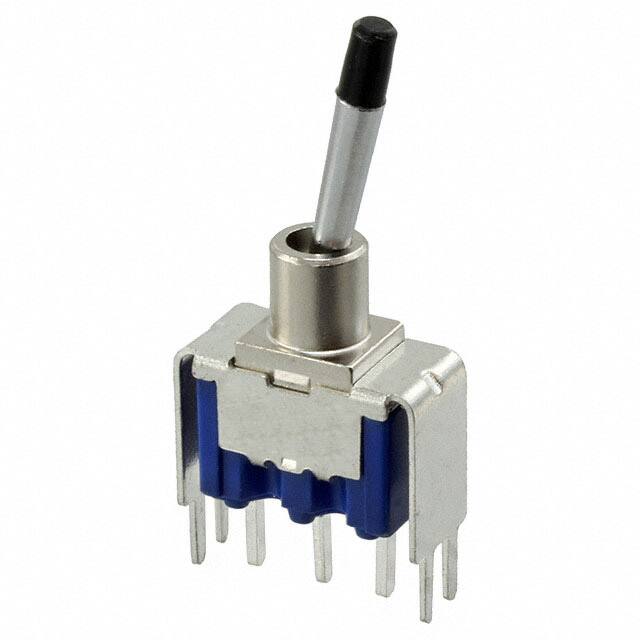

8GS1012-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8GS | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 15.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
8J1011C-ZSWITCH TOGGLE SPDT 25MA 20V |
0 |
|
Datasheet |
8J | Bulk | Obsolete | Panel Mount | SPDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 6.80mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -20°C ~ 85°C |
|
8J1061-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8J | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -20°C ~ 85°C |
|
8J3011-ZSWITCH TOGGLE 3PDT 6A 125V |
0 |
|
Datasheet |
8J | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -20°C ~ 85°C |
|

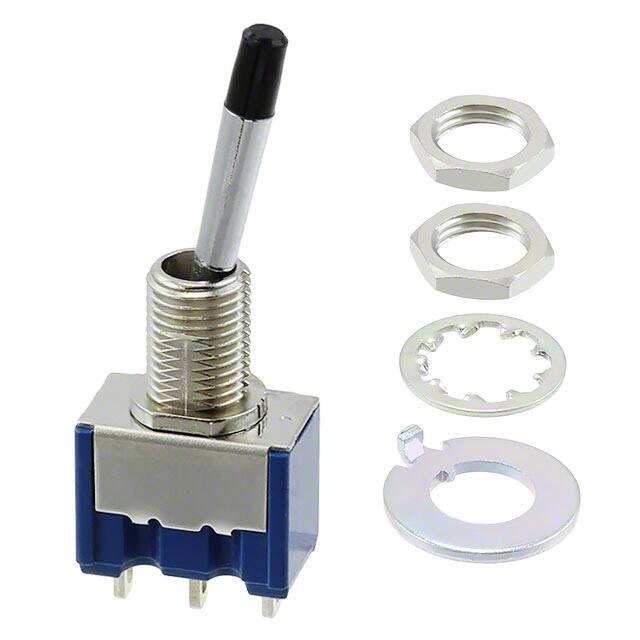

8S1011-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
- |
8S | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 15.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -20°C ~ 85°C |
|

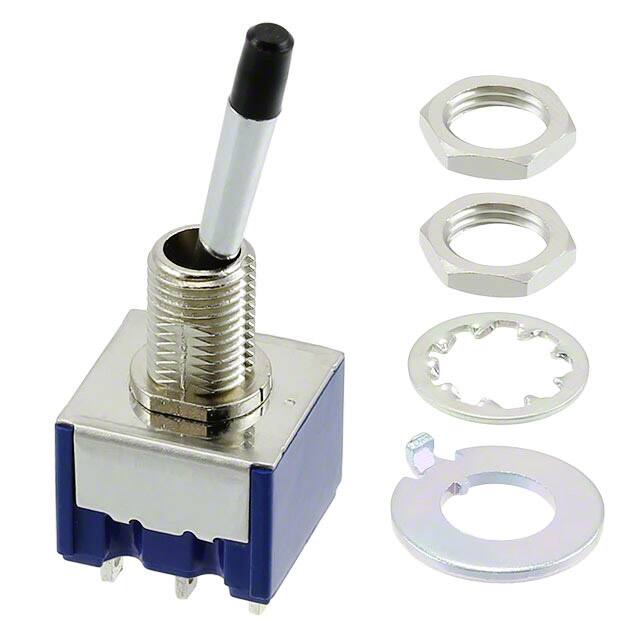

8S2011-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
- |
8S | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 15.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -20°C ~ 85°C |
|
ET103A32-ZSWITCH TOGGLE SPST 3A 125V |
0 |
|
- |
ET | Bulk | Obsolete | Panel Mount | SPST | On-Off | 3A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
|
ET103V32-ZSWITCH TOGGLE SPDT 3A 125V |
0 |
|
- |
ET | Bulk | Obsolete | Panel Mount | SPDT | On-On | 3A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET110G-ZSWITCH TOGGLE SPDT 10A 125V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
