Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8A4111-ZSWITCH TOGGLE DP3T 6A 125V |
0 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | DP3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
8C1011C-ZSWITCH TOGGLE SPDT 25MA 20V |
0 |
|
Datasheet |
8C | Bulk | Obsolete | Panel Mount | SPDT | On-On | 25mA (DC) | - | 20 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8C1052-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8C | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8C2011C-ZSWITCH TOGGLE DPDT 25MA 20V |
0 |
|
Datasheet |
8C | Bulk | Obsolete | Panel Mount | DPDT | On-On | 25mA (DC) | - | 20 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8C2012-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8C | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|

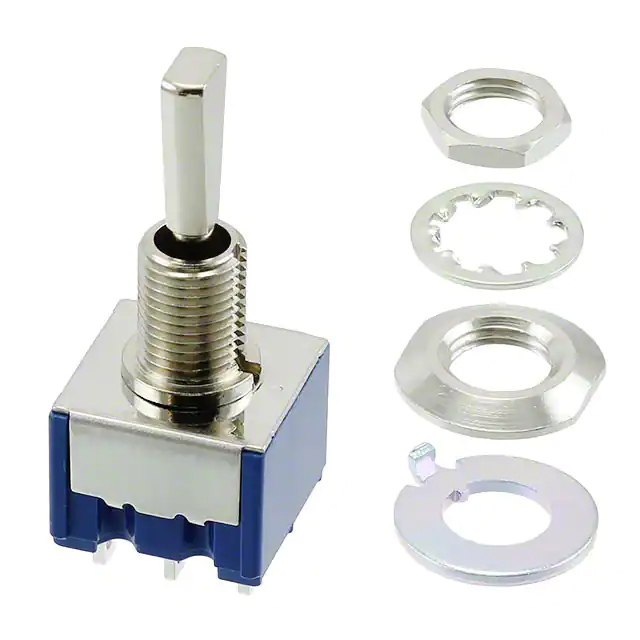

8C2051-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8C | Bulk | Obsolete | Panel Mount | DPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
|
8C2061-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8C | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8C4011-ZSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
8C | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flat Anti-Rotation | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8D1021-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8D | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
8D1041-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8D | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
8D1051-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8D | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
8D1061-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8D | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8D2021-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8D | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 21.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8E1041-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8E | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
|
8E1061-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8E | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|

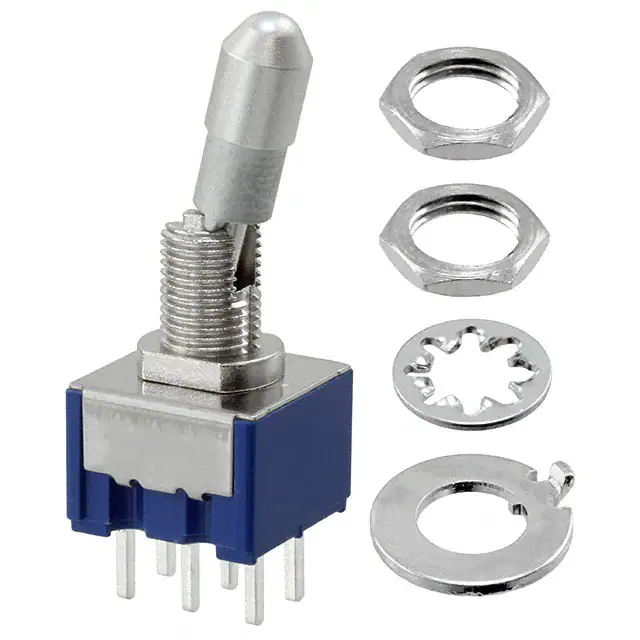

8E2012-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8E | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8E2021C-ZSWITCH TOGGLE DPDT 25MA 20V |
0 |
|
Datasheet |
8E | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 25mA (DC) | - | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|

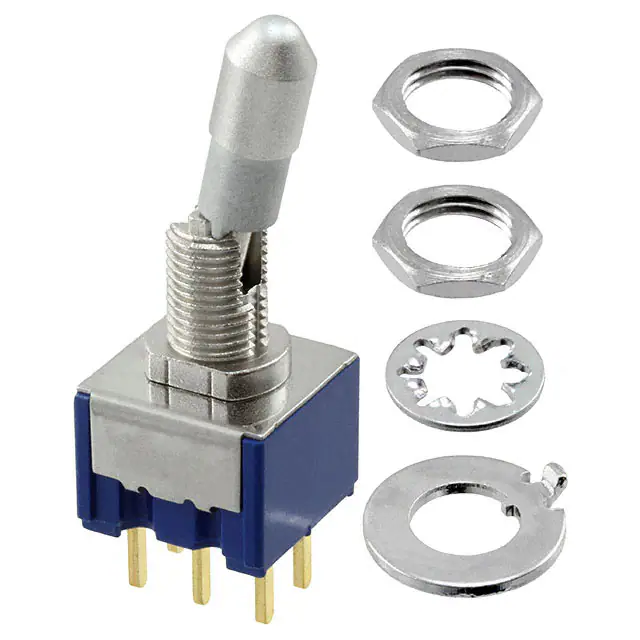

8E2022C-ZSWITCH TOGGLE DPDT 25MA 20V |
0 |
|
Datasheet |
8E | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 25mA (DC) | - | 20 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8E4021-ZSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
8E | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8F1021-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Datasheet |
8F | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | Splash Proof | - | -20°C ~ 85°C |
