Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3-1825142-7SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
Gemini AE | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Process Sealed | -30°C ~ 85°C |
|
|
1825136-3SWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 16.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
1825136-4SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flatted | 12.29mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
1825137-8SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.19mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1825136-5SWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 16.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
1825136-6SWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 16.28mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
2-1825136-3SWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-6437630-5SWITCH TOGGLE SPDT 6A 250V |
0 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC) | 250 V | - | Locking Lever | 15.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -20°C ~ 70°C |
|
|
2-1825137-5SWITCH TOGGLE SPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
4-1825137-0SWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
2-1825139-0SWITCH TOGGLE DPDT 5A 120V |
0 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1-1825192-6SWITCH TOGGLE 4PDT 3A 125V |
0 |
|
Datasheet |
TT | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 10.69mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | Environment Sealed | - | -30°C ~ 85°C |
|
|
1520231-2SWITCH TOGGLE DPST 20A 250V |
0 |
|
Datasheet |
- | Bulk | Obsolete | Panel Mount | DPST | On-Off | 20A (AC) | 250 V | - | Standard Round | - | Non-Illuminated | - | - | Screw Terminal | - | - | - | - | 0°C ~ 55°C |
|
|
1520175-2SWITCH TOGGLE DPST 16A 125V |
0 |
|
- |
- | Bulk | Obsolete | - | DPST | On-Off | 16A (AC) | 125 V | - | Standard Round | 17.04mm | - | - | - | - | - | - | - | - | - |
|
|
54107SWITCH TOGGLE DPDT 25A 12V |
0 |
|
- |
54100 | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 25A (DC) | - | 12 V | Flatted | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|

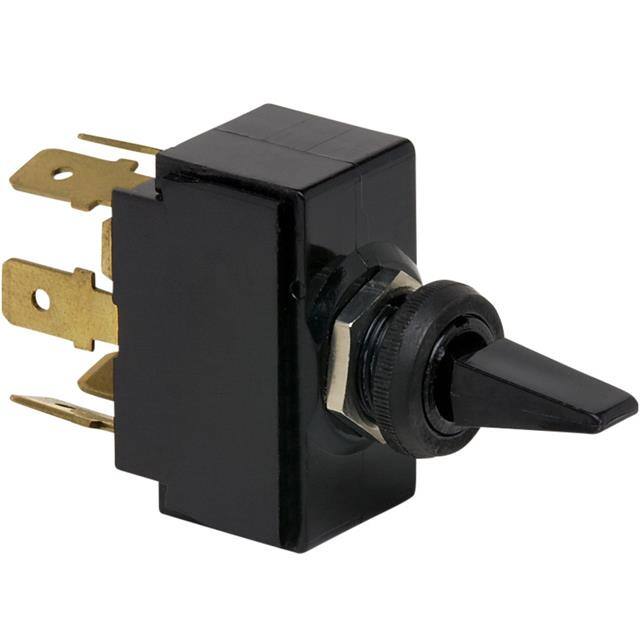

54107-01SWITCH TOGGLE DPDT 25A 12V |
0 |
|
Datasheet |
54100 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (DC) | - | 12 V | Flatted | 17.46mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
55057SWITCH TOGGLE DPDT 15A 24V |
0 |
|
- |
- | Bulk | Discontinued at Digi-Key | Panel Mount | DPDT | On-Off-On | 15A (DC) | - | 24 V | Standard Round | 38.10mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
59024-100SWITCH TOGGLE SPST 25A 12V |
0 |
|
- |
59024 | Bulk | Obsolete | Panel Mount | SPST | On-Off | 25A (DC) | - | 12 V | Paddle | 25.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
59024-116SWITCH TOGGLE DPDT 25A 12V |
0 |
|
- |
59024 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 25A (DC) | - | 12 V | Paddle | 25.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
7211P3D9V7BESSWITCH TOGGLE DPDT 0.4VA 20V |
0 |
|
- |
7000 | Bulk | Obsolete | Through Hole | DPDT | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
