Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

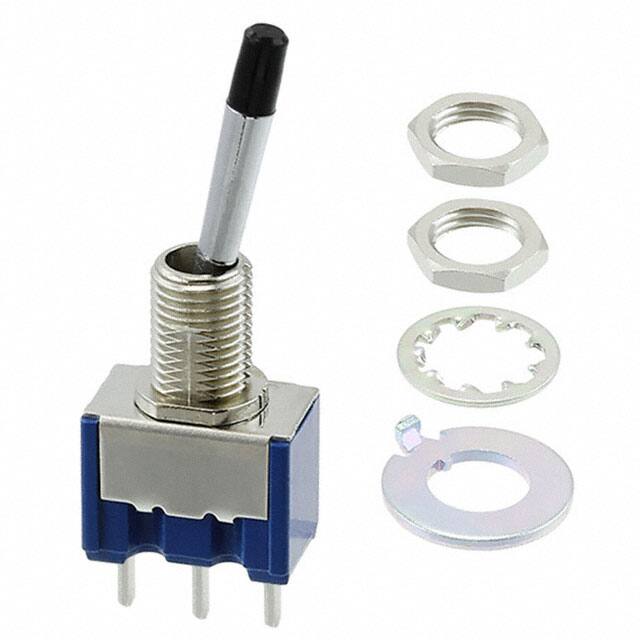

8S1012-ZSWITCH TOGGLE SPDT 6A 125V |
0 |
|
- |
8S | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 15.20mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Black Cap | -20°C ~ 85°C |
|
ATLE44E-2M3-ZSWITCH TOGGLE 4PDT 50MA 48V |
0 |
|
Datasheet |
ATLE4 | Tray | Obsolete | Through Hole | 4PDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
ATE2T-2M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole | DPDT | On-Off-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE2F-5M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle | DPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

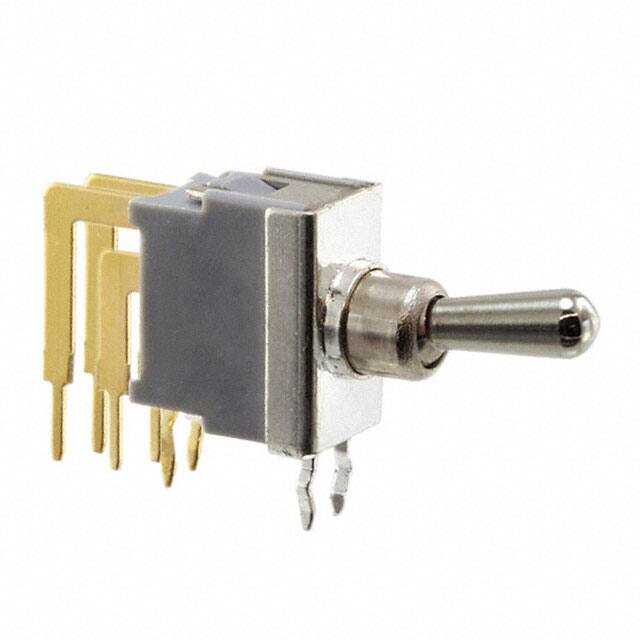

ATE2F-7M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE2F-2F3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole | DPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE2D-7F3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
0 |
|
Datasheet |
ATE | Tray | Obsolete | Through Hole, Right Angle, Vertical | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|

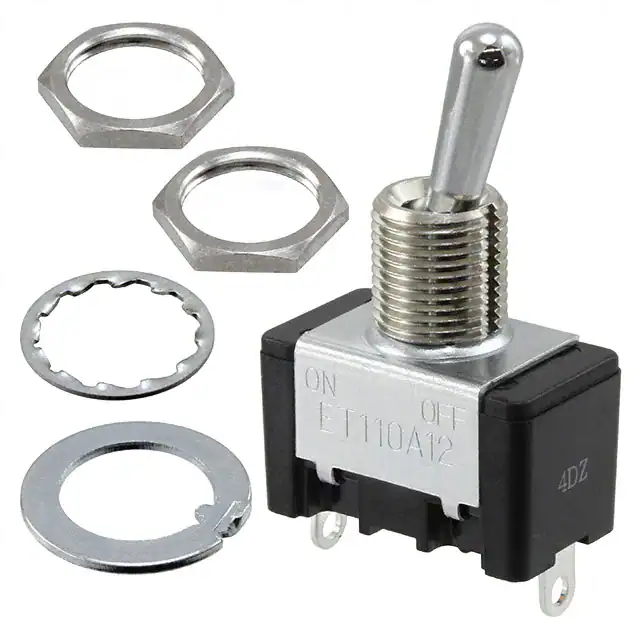

ET110F12-ZSWITCH TOGGLE SPDT 10A 125V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET225P10-ZSWITCH TOGGLE DPDT 25A 125V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | DPDT | On-Off-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

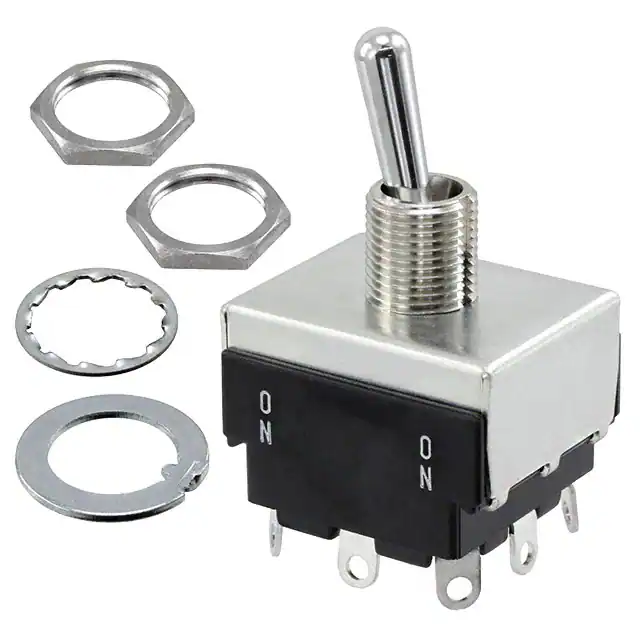

ET315F12-ZSWITCH TOGGLE 3PDT 15A 125V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 3PDT | On-Mom | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
ET410P12-ZSWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 4PDT | On-Off-On | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

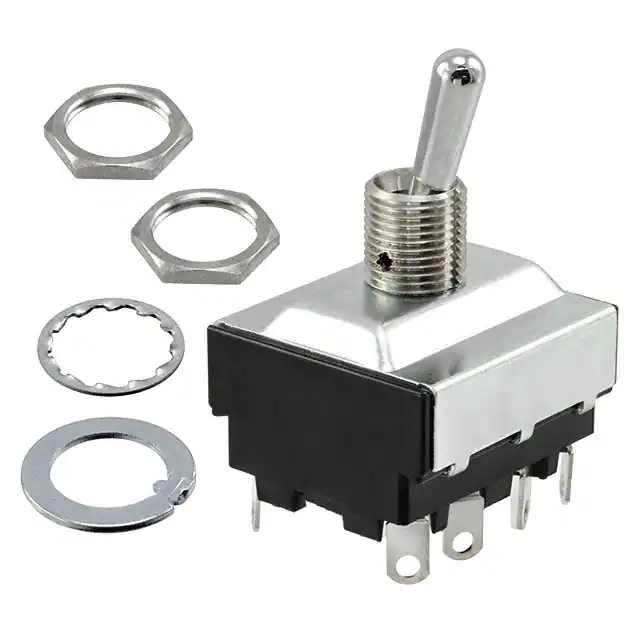

ET415K12-ZSWITCH TOGGLE 4PST 15A 125V |
0 |
|
Datasheet |
ET | Bulk | Obsolete | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|

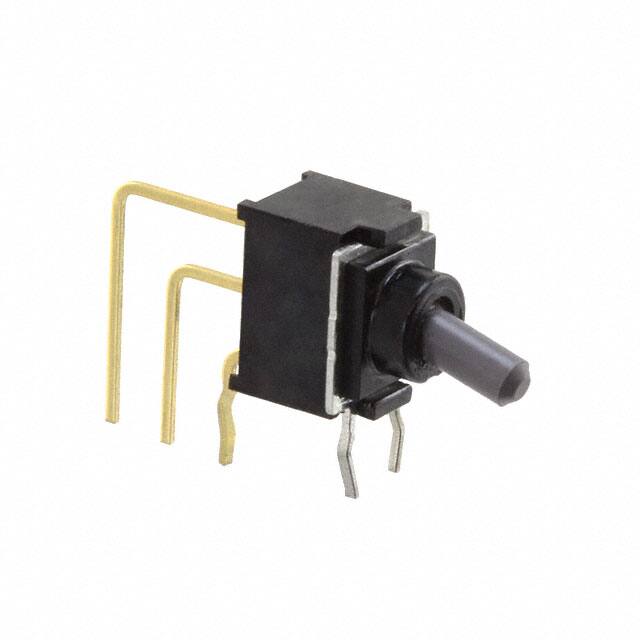

FT1F-4M-ZSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Datasheet |
FT | Tray | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Yellow Actuator | -40°C ~ 85°C |
|
8A1021C-ZSWITCH TOGGLE SPDT 25MA 20V |
0 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|

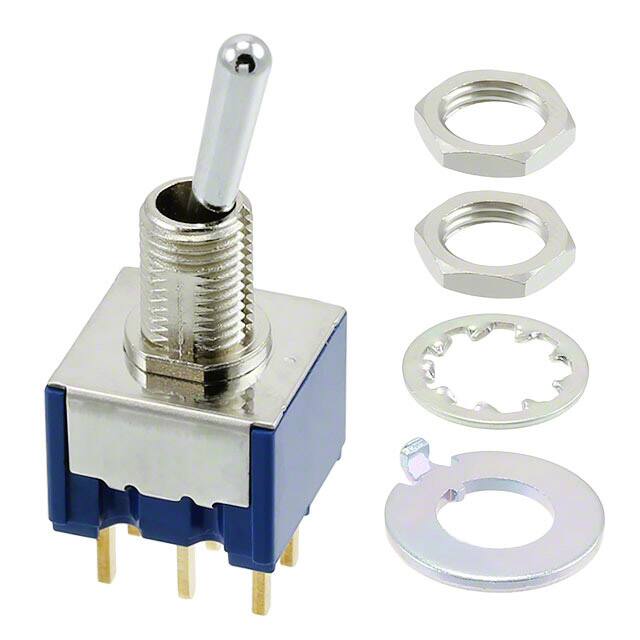

8A2012C-ZSWITCH TOGGLE DPDT 25MA 20V |
0 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | DPDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8A2042-ZSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
|
8A2101-ZSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
|
8A2111-ZSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SP3T | On-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|
|
8A2121-ZSWITCH TOGGLE SP3T 6A 125V |
0 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | SP3T | Mom-On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -20°C ~ 85°C |
|

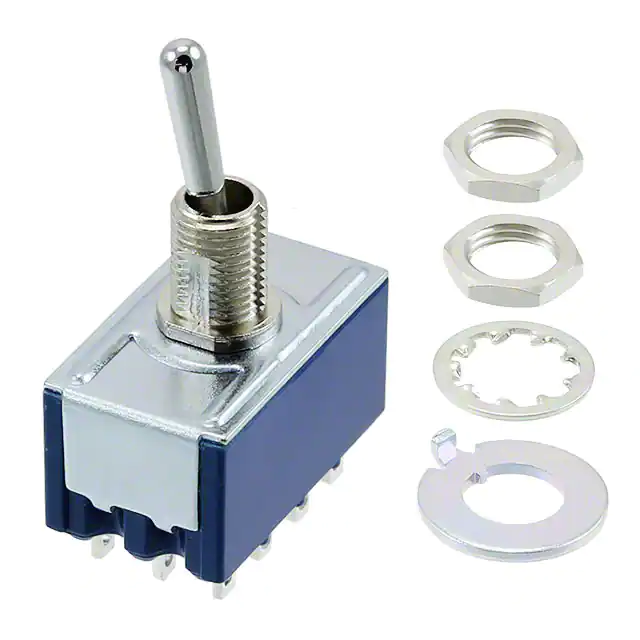

8A4061-ZSWITCH TOGGLE 4PDT 6A 125V |
0 |
|
Datasheet |
8A | Bulk | Obsolete | Panel Mount | 4PDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -20°C ~ 85°C |
