Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASE02008MS-LW100-RSPEAKER 8OHM 1W TOP PORT 97DB |
3,702 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 500 Hz ~ 20 kHz | 950Hz | 8 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | Polyacrylonitrile Butadiene Styrene (ABS) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
CMS-181637-158SP-X8SPEAKER, 18 X 16 MM, 3.7 MM DEEP |
518 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.709" L x 0.630" W (18.00mm x 16.00mm) |
|
CMS-18138A-SPSPEAKER 8OHM 800MW TOP PORT 92DB |
294 |
|
Datasheet |
CMS | Tray | Active | Magnetic | Low Profile | 300 Hz ~ 10 kHz | 400Hz | 8 Ohms | 92.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|

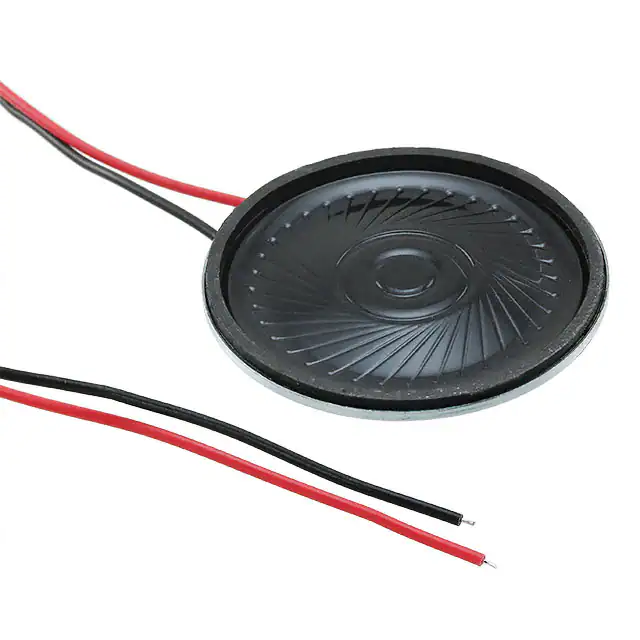

CMS-40558N-L152SPEAKER 8OHM 500MW TOP PORT 90DB |
9,444 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
|
AS01508MS-SC14-WPSPEAKER 0.5W 8OHM 81DB 850HZ |
403 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 850 Hz ~ 20 kHz | 850Hz | 8 Ohms | 81.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX8 | - | Solder Pads | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|
|
CMS-321437-24SP-X8SPEAKER, 32 X 14 MM, 3.7 MM DEEP |
394 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 840 Hz ~ 20 kHz | 1.05kHz | 4 Ohms | 103.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.906" L x 0.551" W (23.00mm x 14.00mm) |
|
SW121308-3SPEAKER 8OHM 300MW TOP PORT 88DB |
129 |
|
Datasheet |
SW | Bulk | Active | Magnetic | General Purpose | 1.3 kHz ~ 5 kHz | 1.3kHz | 8 Ohms | 88.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Solder Pads | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|
SP-1508SPEAKER 7OHM 500MW TOP PORT 85DB |
700 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | - | 7 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
|
AS03608MR-4-RSPEAKER 8OHM 800MW TOP PORT 85DB |
719 |
|
Datasheet |
AS | Bulk | Active | Magnetic | General Purpose | 450 Hz ~ 20 kHz | 450Hz | 8 Ohms | 85.00 | 1W/500mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N35 | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
SPKM.28.8.ASPEAKER 8OHM 1W TOP PORT 89DB |
923 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 580Hz | 8 Ohms | 89.00 | 500mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" Dia (28.00mm) |
|

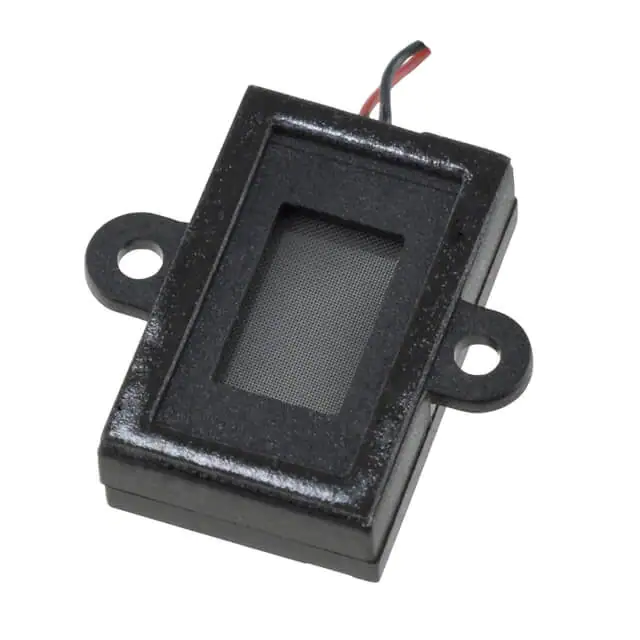

CES-20134-088PMSPEAKER 8OHM 800MW TOP PORT 91DB |
1,103 |
|
Datasheet |
CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 500 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.633" W (20.00mm x 16.09mm) |
|
SW201308-1SPEAKER 8OHM 0.8W TOP PORT 93DB |
830 |
|
Datasheet |
Agile 67 | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20000 Hz | 1.3kHz | 8 Ohms | 93.00 | 1W/10cm | Sound Pressure Level (SPL) | 0.8 W | 1 W | Top | Rectangular | Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.787" L x 0.512" W (20.00mm x 13.00mm) |
|
SW121308-2SPEAKER 8OHM 400MW TOP PORT 89DB |
251 |
|
Datasheet |
SW | Bulk | Active | Magnetic | General Purpose | 1.3 kHz ~ 20 kHz | 1.3kHz | 8 Ohms | 89.00 | 400mW/100mm | Sound Pressure Level (SPL) | 400 mW | 600 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|
AR040600MR-LW100-RSPEAKER 600OHM 10MW TOP PT 120DB |
125 |
|
Datasheet |
AR | Tray | Active | Magnetic | Receiver | 100 Hz ~ 10 kHz | 1kHz | 600 Ohms | 120.00 | 10mm | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
CVS-3108SPEAKER 8OHM 100MW TOP PORT 85DB |
2,498 |
|
Datasheet |
CVS | Tray | Active | Magnetic | General Purpose | 1.05 kHz ~ 4 kHz | 1250Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 1.252" Dia (31.80mm) |
|

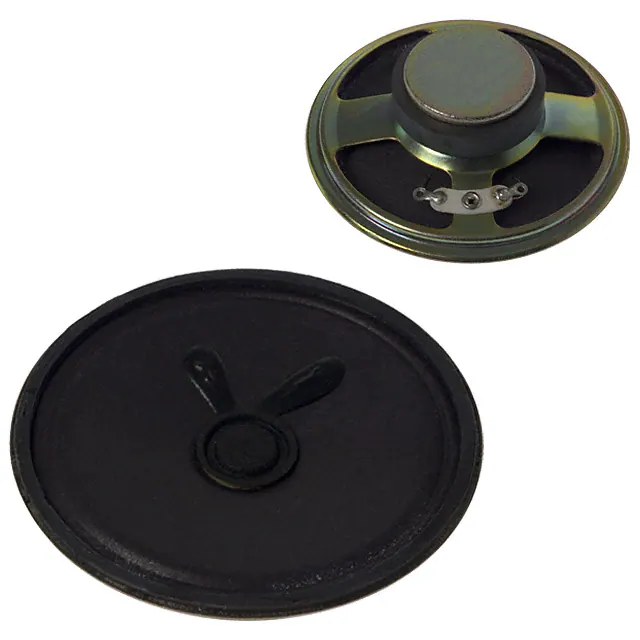

GF0571SPEAKER 8OHM 250MW TOP PORT 86DB |
13,238 |
|
Datasheet |
GF | Box | Active | Magnetic | General Purpose | 380 Hz ~ 8.1 kHz | 380Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|

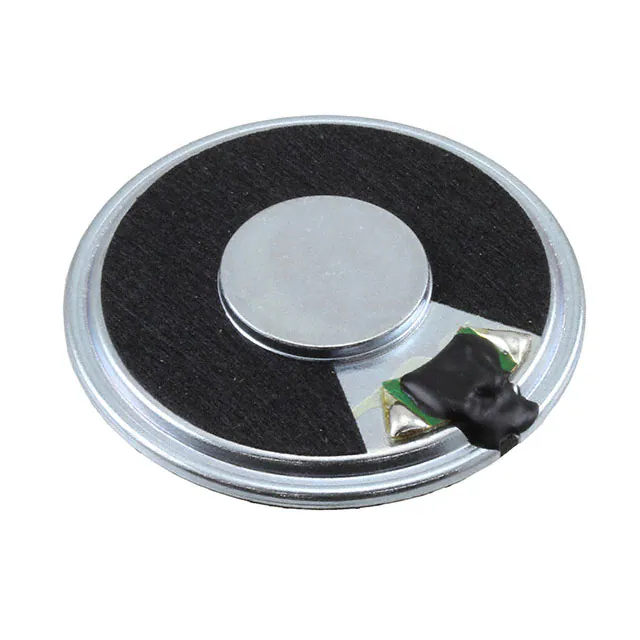

SP-4005SPEAKER 8OHM 2W TOP PORT 92DB |
735 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 550Hz | 8 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B-N38 | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
|
CMS-251405-24SP-X8SPEAKER, 25 X 14 MM, 5 MM DEEP, |
229 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 4 Ohms | 103.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
|
SPKM.36.8.BDYNAMIC IP67 RATED MINIATURE SPE |
231 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 10 kHz | 600Hz | 8 Ohms | 98.00 | 500mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylenimine (PEI) | Nd | IP67 - Dust Tight, Waterproof | - | Wire Leads | 1.406" Dia (35.70mm) |
|
|
CES-24208-18PM-X7ENCLOSED SPEAKER, 1W, 8OHM |
458 |
|
Datasheet |
CES | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 90.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 0.945" L x 0.787" W (24.00mm x 20.00mm) |
