Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP-1511LSPEAKER 8OHM 700MW TOP PORT 83DB |
511 |
|
Datasheet |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 600Hz | 8 Ohms | 83.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

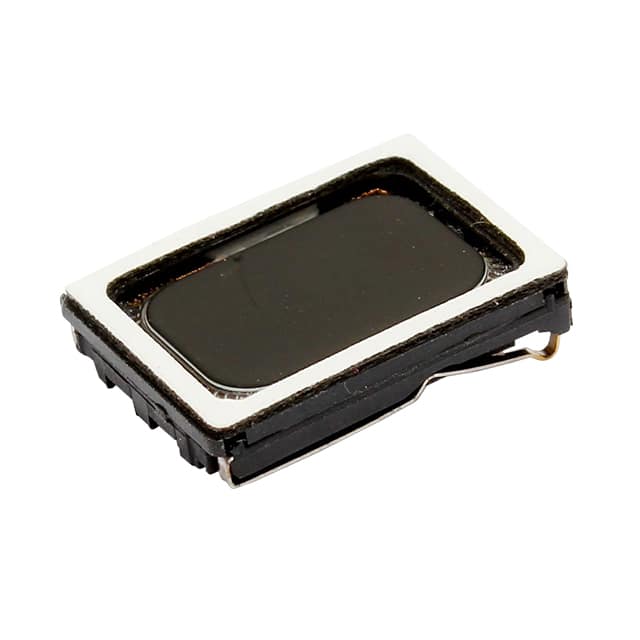

SP-1511S-6SPEAKER 8OHM 500MW TOP PORT 82DB |
501 |
|
Datasheet |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 750Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

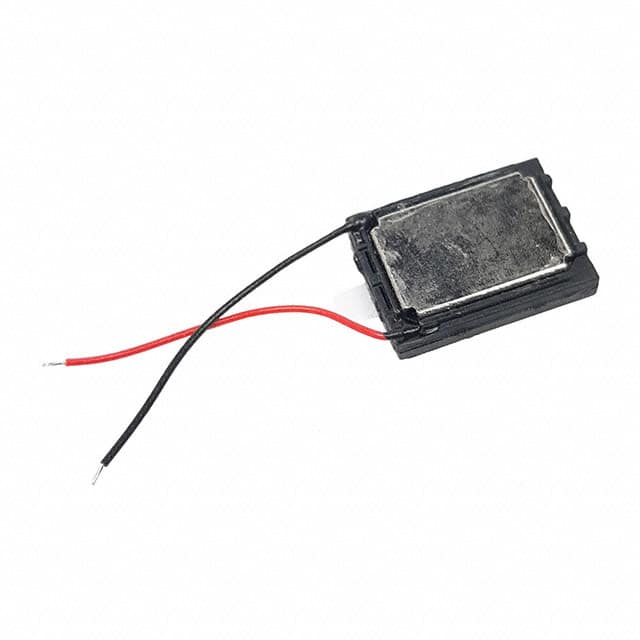

SP-1511L-2SPEAKER 8OHM 700MW TOP PORT 91DB |
154 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 650Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

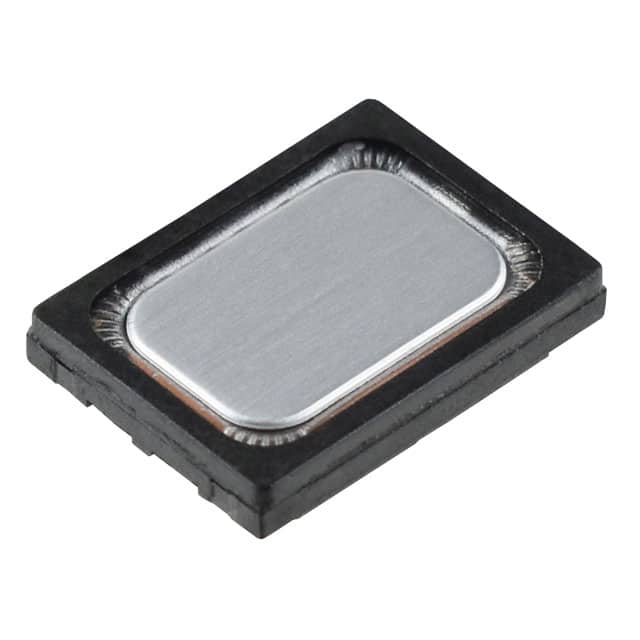

CMS-151103-088SPSPEAKER 8OHM 700MW TOP PORT 90DB |
155 |
|
Datasheet |
CMS | Box | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

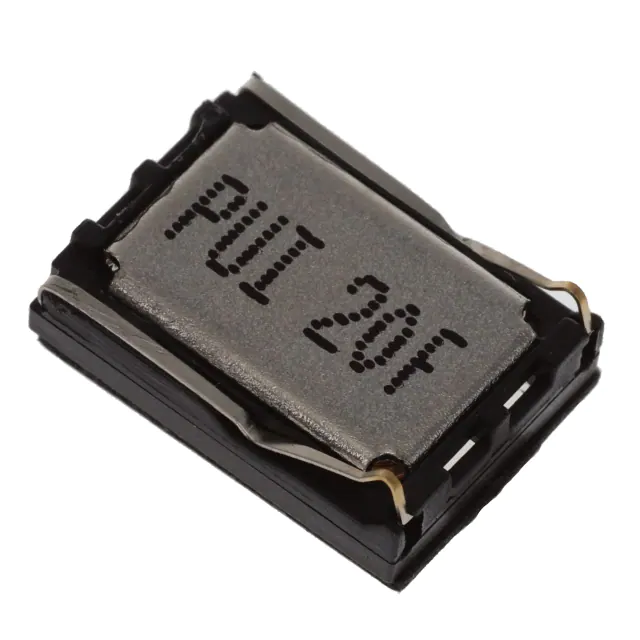

AS01508MO-SC11-RSPEAKER 8OHM 700MW TOP PORT 89DB |
4,530 |
|
Datasheet |
AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
1314SPEAKER 4OHM 3 DIAMETER |
153 |
|
Datasheet |
- | Bulk | Active | - | General Purpose | - | - | 4 Ohms | - | - | - | - | 3 W | - | Round, Square Frame | - | - | - | - | Wire Leads | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
|
4227SPEAKER 8OHM 1W TOP PORT 96DB |
110 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 670 Hz ~ 20 kHz | 670Hz | 8 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | Washable | Wire Leads | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|

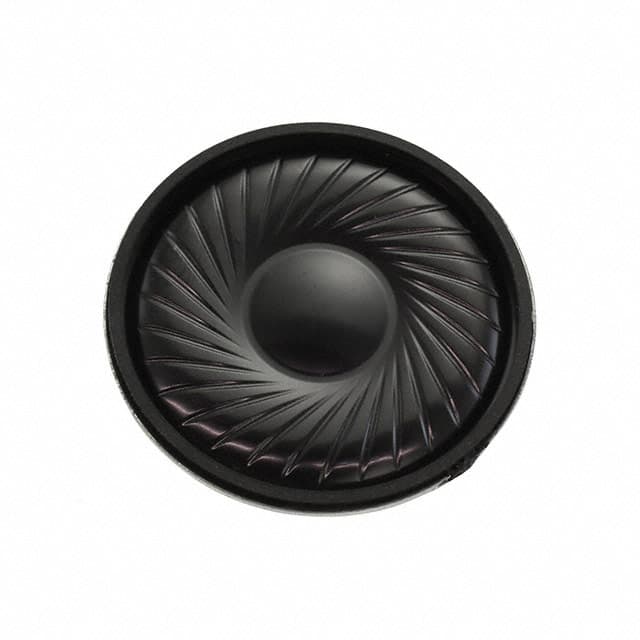

SP-4005-3YSPEAKR 32OHM 500MW TOP PORT 91DB |
310 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 480Hz | 32 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | - | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
AR01232MS-SC12-WP-RSPEAKR 32OHM 20MW TOP PORT 116DB |
284 |
|
Datasheet |
AR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 450Hz | 32 Ohms | 116.00 | - | Sensitivity | 20 mW | 30 mW | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
|

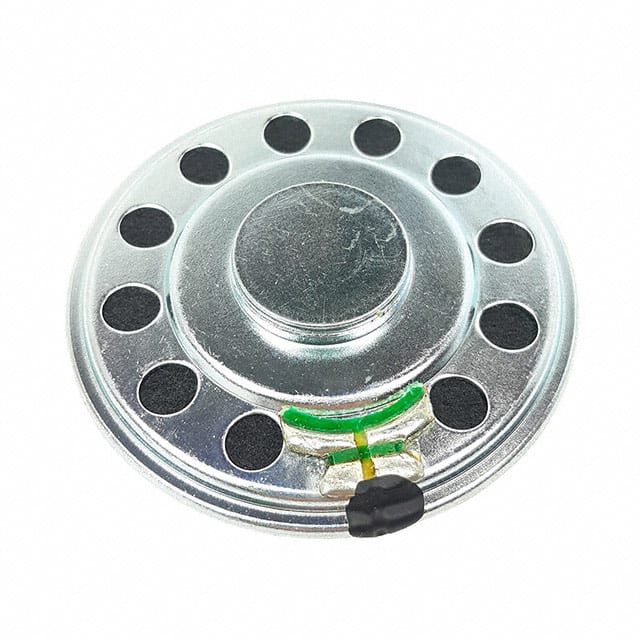

SP-5007YSPEAKER 8OHM 2W TOP PORT 87DB |
301 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 580 Hz ~ 10 kHz | 580Hz | 8 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
SPKM.20.8.ASPEAKER 8OHM 800MW TOP PORT 98DB |
426 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 850Hz | 8 Ohms | 98.00 | 500mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787" Dia (20.00mm) |
|
SP-1003SPEAKER 8OHM 300MW TOP PORT 80DB |
3,619 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1350Hz | 8 Ohms | 80.00 | 100mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.394" Dia (10.00mm) |
|

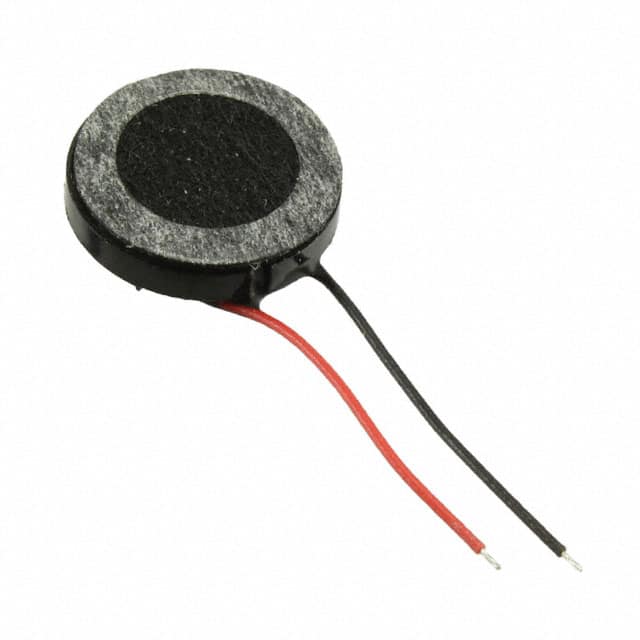

SP-1304-2SPEAKER 8OHM 500MW TOP PORT 82DB |
602 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1300Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | - | - | - | Wire Leads | 0.512" Dia (13.00mm) |
|
AS01508MS-SC11-WP-RSPEAKER 8OHM 700MW TOP PORT 89DB |
6,921 |
|
Datasheet |
AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP-1810SPEAKER 8OHM 500MW TOP PORT 82DB |
1,918 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1000Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.709" L x 0.394" W (18.00mm x 10.00mm) |
.jpg)
|
CDMG15008-03ASPEAKER 8OHM 300MW TOP PORT 88DB |
1,273 |
|
Datasheet |
CDMG | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) |
|
SP-2804LSPEAKER 4OHM 1.5W TOP PORT 92DB |
1,798 |
|
Datasheet |
SP | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 8 kHz | 450Hz | 4 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CMS-16093-078SPSPEAKER 8OHM 700MW TOP PORT 91DB |
875 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
AS03608MR-LW100-RSPEAKER 8OHM 1W TOP PORT 91DB |
450 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 4.5 kHz | 500Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | IEC 60601-1-8 | Wire Leads | 1.417" Dia (36.00mm) |
|
SP-1511S-3SPEAKER 8OHM 700MW TOP PORT 83DB |
868 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 83.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
