Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-151135-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
0 |
|
Datasheet |
CMS | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

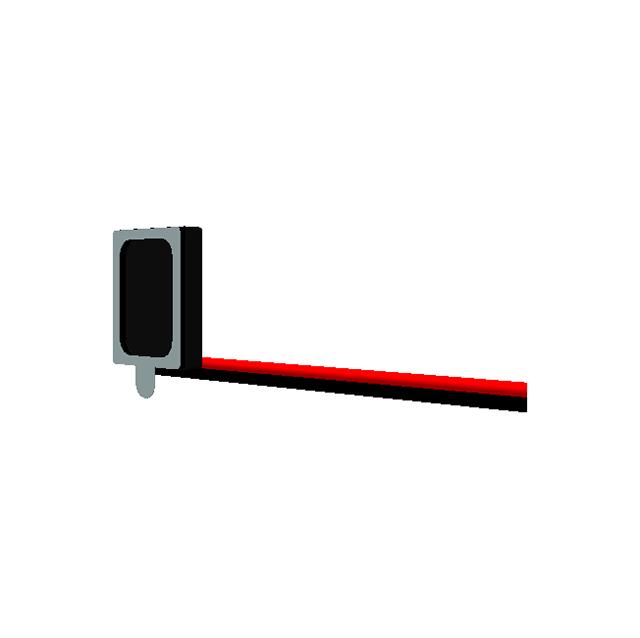

AS01506MS-WP-LW100-RSPEAKER 6OHM 1W TOP PORT 93DB |
582 |
|
Datasheet |
AS | Tray | Active | Magnetic | Receiver | 550 Hz ~ 20 kHz | 550Hz | 6 Ohms | 93.00 | 100mm | Sensitivity | 1 W | 1.2 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-15113-078L100SPEAKER 8OHM 700MW TOP PORT 91DB |
1,381 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-181345-18SP-X8SPEAKER, 18 X 13 MM, 4.5 MM DEEP |
394 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 950Hz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CMS-15113-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
3,832 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-151135-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,153 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-160925-078SP-67SPEAKER 8OHM 700MW TOP PORT 90DB |
142 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CDM-16008SPEAKER 8OHM 400MW TOP PORT 93DB |
1,027 |
|
Datasheet |
CDM | Tray | Active | Magnetic | General Purpose | 640 Hz ~ 20 kHz | 800Hz | 8 Ohms | 93.00 | 400mW/100mm | Sound Pressure Level (SPL) | 400 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.630" Dia (16.00mm) |
|
|
CMS-181345-18S-X8SPEAKER, 18 X 13 MM, 4.5 MM DEEP |
200 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 950Hz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CMS-160925-078S-67SPEAKER 8OHM 700MW TOP PORT 90DB |
1,517 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-151125-078S-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,019 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP-1609SPEAKER 8OHM 500MW TOP PORT 82DB |
236 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 82.00 | 100mW | Sound Pressure Level (SPL) | 500 mW | 700 mW | Top | Rectangular | - | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
AS01508MO-SP11-LW25-RSPEAKER 8OHM 700MW TOP PORT 89DB |
2,383 |
|
Datasheet |
AS | Tray | Active | Magnetic | Receiver | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AS01508MR-6-LW100-RSPEAKER 8OHM 1.2W TOP PORT 88DB |
957 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 20 kHz | 900Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
SPKM.17.8.ASPEAKER 8OHM 500MW TOP PORT 96DB |
863 |
|
Datasheet |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 900Hz | 8 Ohms | 96.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 0.669" Dia (17.00mm) |
|
|
CMS-2278-34SPSPEAKER, 22 MM, 7.8 MM DEEP, PU+ |
999 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 304 Hz ~ 20 kHz | 380Hz | 4 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 3.5 W | Top | Round | Polyethylene Naphthalate (PEN), Polyurethane (PU) | Nd-Fe-B | - | - | Solder Tabs | 0.866" Dia (22.00mm) |
|

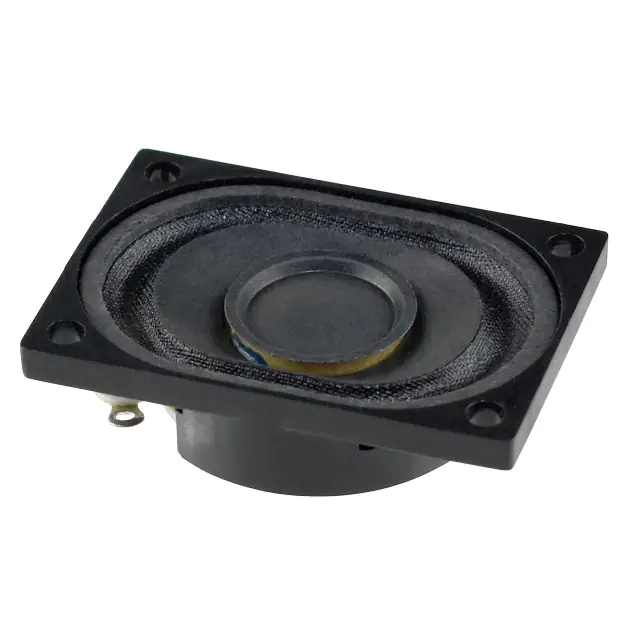

CMS-402811-28SPSPEAKER 8OHM 2W TOP PORT 84DB |
4,596 |
|
Datasheet |
CMS | Box | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 450Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.114" W (40.00mm x 28.30mm) |
|
PSR-45N08A-JQSPEAKER 8OHM 250MW TOP PORT 88DB |
362 |
|
Datasheet |
PSR | Bulk | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 400Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.772" Dia (45.00mm) |
|
|
CMS-150803-088S-X8SPEAKER, 15 X 8 MM, 3 MM DEEP, P |
493 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 980 Hz ~ 20 kHz | 1.2kHz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Spring Type | 0.591" L x 0.315" W (15.00mm x 8.00mm) |
|
CDS-5085-32-SPSPEAKR 32OHM 500MW TOP PORT 92DB |
387 |
|
Datasheet |
CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 32 Ohms | 92.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
Speakers Electronic Components
Explore Speakers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
