Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

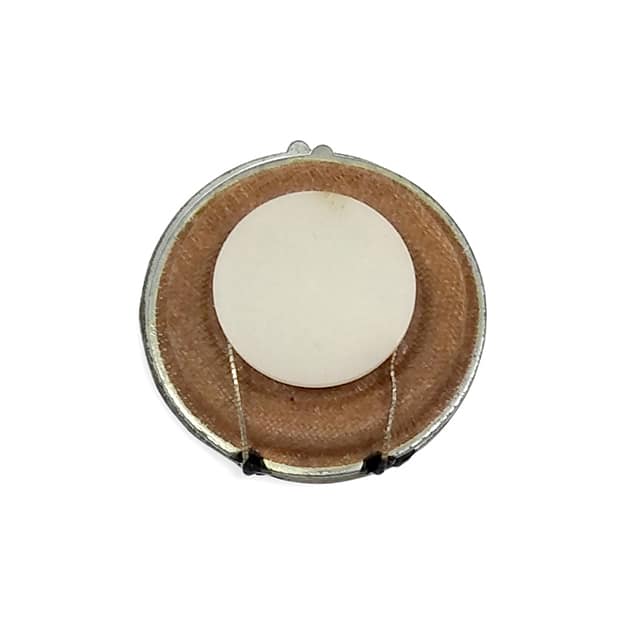

E-2702SPEAKER 2 OHM 1W TOP PORT 92DB |
355 |
|
Datasheet |
- | Tray | Active | Magnetic | Exciter | 400 Hz ~ 20 kHz | 400Hz | 2 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | - | - | - | - | Solder Pads | 1.035" Dia (26.30mm) |
|

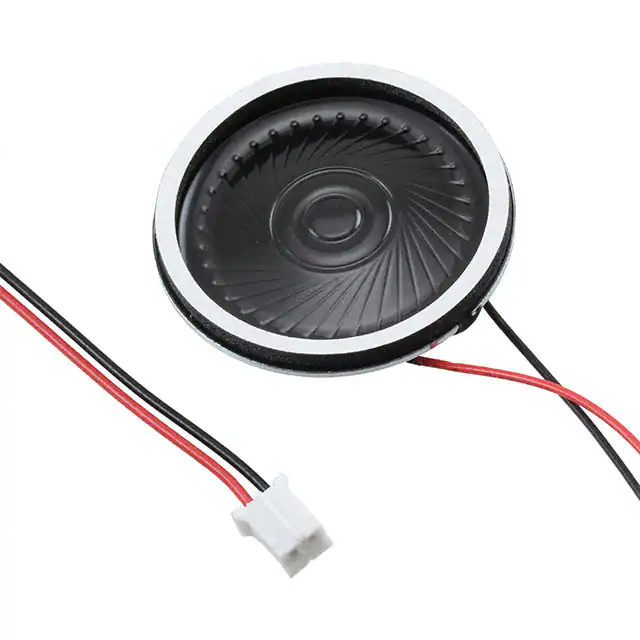

SP-4005-1SPEAKER 8OHM 1W TOP PORT 93DB |
339 |
|
Datasheet |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 430Hz | 8 Ohms | 93.00 | 100mW/50mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
AS01208MS-SP12-WP-RSPEAKER 8OHM 300MW TOP PORT 88DB |
232 |
|
Datasheet |
AS | Tray | Active | Magnetic | Receiver | 850 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 88.00 | 100mm | Sensitivity | 300 mW | 500 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP68 - Dust Tight, Waterproof | - | Solder Pads | 0.472" L x 0.217" W (12.00mm x 5.50mm) |
|
CLS0281-L152SPEAKER 8OHM 1W TOP PORT 82DB |
19,979 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 3 W | Top | Round | Paper | Nd-Fe-B | - | - | Wire Leads | 1.102" Dia (28.00mm) |
|
CMS-40504N-L152ASPEAKER 4OHM 2W TOP PORT 100DB |
1,219 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 7 kHz | 500Hz | 4 Ohms | 100.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.575" Dia (40.00mm) |
|
SMS-1504MS-2-RSPEAKER 4OHM 500MW TOP PORT 87DB |
954 |
|
Datasheet |
SMS | Tape & Reel (TR) | Active | Magnetic | General Purpose | 640 Hz ~ 20 kHz | 800Hz | 4 Ohms | 87.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Square | Polyimide (PI) | SmCo | - | - | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
|
CMS-30205-124L40-67SPEAKER 4OHM 1.2W TOP PORT 95DB |
931 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 95.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.2 W | 1.5 W | Top | Rectangular | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.181" L x 0.787" W (30.00mm x 20.00mm) |
|

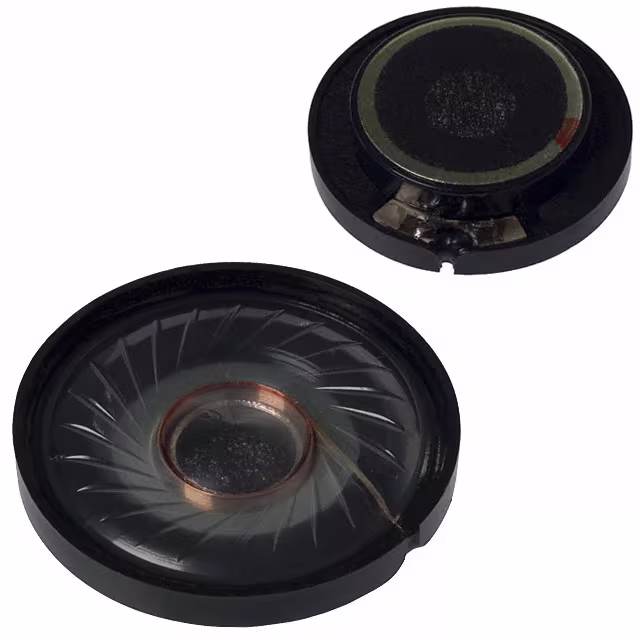

GF0401MSPEAKER 8OHM 40MW TOP PORT 99DB |
14,036 |
|
Datasheet |
GF | Tray | Active | Magnetic | General Purpose | 144 Hz ~ 20 kHz | 180Hz | 8 Ohms | 99.00 | 100mW/100mm | Sound Pressure Level (SPL) | 40 mW | 100 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
AS05008PR-A-RSPEAKER 8OHM 1W TOP PORT 84DB |
368 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 5 kHz | 550Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
AS04004PO-2-LW152-RSPEAKER 4OHM 3W TOP PORT 82DB |
1,604 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 420Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Rectangular Frame | Paper | Rare Earth | - | - | Wire Leads | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
|
PSR40N08AKSPEAKER 8OHM 1W TOP PORT 83DB |
345 |
|
Datasheet |
PSR | Bulk | Active | Magnetic | General Purpose | 560 Hz ~ 6 kHz | 560Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SW221408-1SPEAKER 8OHM 1W TOP PORT 92DB |
235 |
|
Datasheet |
Agile 67 | Bulk | Active | Magnetic | General Purpose | 1.4 kHz ~ 10 kHz | 1.4kHz | 8 Ohms | 92.00 | 1W/10cm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.866" L x 0.512" W (22.00mm x 13.00mm) |
|

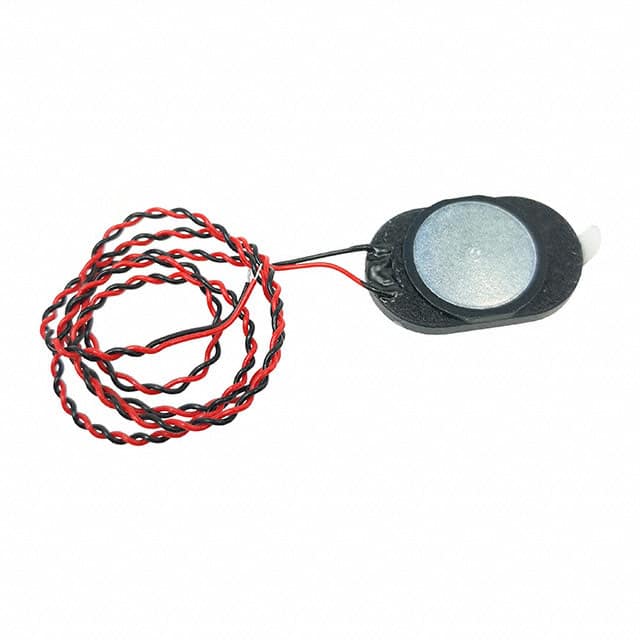

WSPH-2415SPEAKER 8OHM 1W TOP PORT 89DB |
210 |
|
Datasheet |
WSP | Tray | Active | Magnetic | General Purpose | 1 kHz ~ 10 kHz | 1kHz | 8 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|

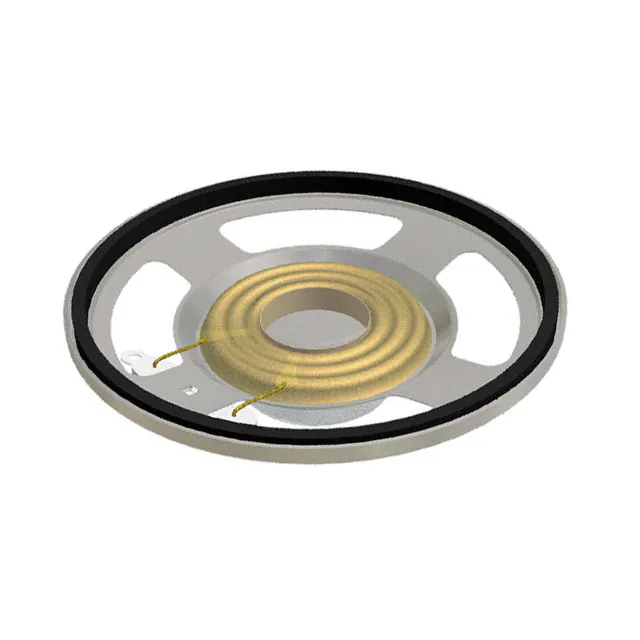

AS05708MR-RSPEAKER 8OHM 500MW TOP PORT 90DB |
103 |
|
Datasheet |
AS | Bulk | Active | Magnetic | General Purpose | 450 Hz ~ 4.5 kHz | 450Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
|
CMS-23558N-L152BSPEAKER 8OHM 1W TOP PORT 80DB |
131 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.906" Dia (23.00mm) |
|
WSP-7708SPEAKER 8OHM 3W TOP PORT 106DB |
800 |
|
Datasheet |
WSP | Bulk | Active | Magnetic | General Purpose | 0 Hz ~ 7 kHz | 430Hz | 8 Ohms | 106.00 | 1W/10cm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | - | - | IP65 - Dust Tight, Waterproof Face | - | Solder Eyelet(s) | 3.039" L x 3.039" W (77.20mm x 77.20mm) |
|

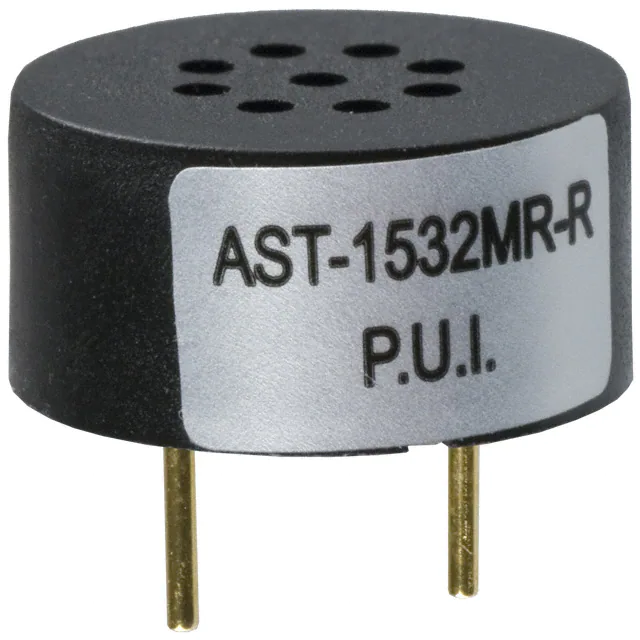

AST-01532MR-RSPEAKR 32OHM 300MW TOP PORT 87DB |
603 |
|
Datasheet |
AST | Tray | Active | Magnetic | General Purpose | 2.1 kHz ~ 20 kHz | 2100Hz | 32 Ohms | 87.00 | 300mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.591" Dia (15.00mm) |
|
WSP-5708SPEAKER 8OHM 3W TOP PORT 100DB |
9,881 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 710 Hz ~ 9 kHz | 710Hz | 8 Ohms | 100.00 | 100mW/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 2.236" Dia (56.80mm) |
|
WSP-4508-7SPEAKER 8OHM 3W TOP PORT 101DB |
295 |
|
Datasheet |
- | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 5 kHz | 900Hz | 8 Ohms | 101.00 | 100mW/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.772" Dia (45.00mm) |
|
AS04008CO-WR-RSPEAKER 8OHM 2W TOP PORT 83DB |
10,287 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 400Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | Water Resistant | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
