Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

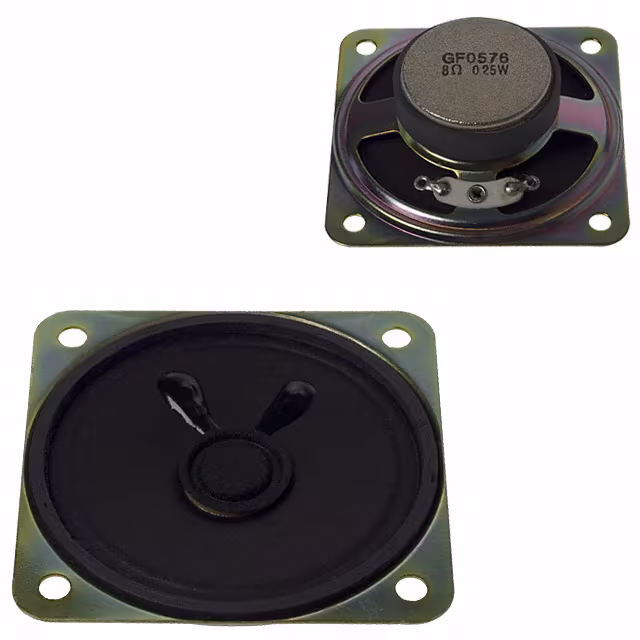

GF0576SPEAKER 8OHM 250MW TOP PORT 86DB |
1,719 |
|
Datasheet |
GF | Box | Active | Magnetic | General Purpose | 380 Hz ~ 8.1 kHz | 380Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" L x 2.244" W (57.00mm x 57.00mm) |
|
SC700208-1SPEAKER 8OHM 3W TOP PORT 91DB |
917 |
|
Datasheet |
- | Box | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 250Hz | 8 Ohms | 91.00 | 100mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Rectangular | Cloth | - | - | - | Solder Eyelet(s) | 2.795" L x 1.614" W (71.00mm x 41.00mm) |
|
AS05008MS-LW152-RSPEAKER 8OHM 1.5W TOP PORT 85DB |
394 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 7 kHz | 800Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.988" L x 1.988" W (50.50mm x 50.50mm) |
|
AS01808MR-LW152-RSPEAKER 8OHM 1W TOP PORT 80DB |
645 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 250 Hz ~ 20 kHz | 550Hz | 8 Ohms | 80.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Wire Leads | 0.709" Dia (18.00mm) |
|
AS05004MR-4-LWC45SPEAKER 3.0W 4OHM 103DB 530HZ |
319 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 530 Hz ~ 20 kHz | 530Hz | 4 Ohms | 103.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
GF0501SPEAKER 8OHM 250MW TOP PORT 87DB |
1,146 |
|
Datasheet |
GF | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 5.9 kHz | 450Hz | 8 Ohms | 87.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
BFC-D40-22-1-002SPEAKER 1 OHM 3.5W TOP PORT 83DB |
307 |
|
Datasheet |
- | Box | Active | Magnetic | General Purpose | 10 Hz ~ 20 kHz | - | 1 Ohms | 83.00 | 500mm | Sound Pressure Level (SPL) | 3.5 W | 8 W | Top | Round | Paper | Nd-Fe-B | - | - | Solder Eyelet | 1.567" Dia (39.80mm) |
|
ASE02506MS-LW90-DSM-RSPEAKER 6OHM 1W TOP PORT 93DB |
788 |
|
Datasheet |
ASE | Tray | Active | Magnetic | General Purpose, Enclosure Included | 650 Hz ~ 20 kHz | 750Hz | 6 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Square | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.984" L x 0.984" W (25.00mm x 25.00mm) |
|
|
SMS-1804MS-HTSPEAKER 1W 4OHM 950HZ 96DB SMD |
368 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Magnetic | General Purpose | 950 Hz ~ 20 kHz | 950Hz | 4 Ohms | 96.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Square | Polyimide (PI) | SmCo | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.709" W (18.00mm x 18.00mm) |
|
AS07004PO-RSPEAKER 4OHM 2W TOP PORT 86DB |
325 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 300Hz | 4 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 5 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.756" L x 1.201" W (70.00mm x 30.50mm) |
|
|
GF0771SPEAKER 8OHM 1W TOP PORT 92DB |
193 |
|
Datasheet |
GF | Box | Active | Magnetic | General Purpose | 180 Hz ~ 10 kHz | 180Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 3.032" Dia (77.00mm) |
|
|
CES-32166-18PM-X7ENCLOSED SPEAKER, 1W, 8OHM |
521 |
|
Datasheet |
CES | Tray | Active | Magnetic | General Purpose | 1.024 kHz ~ 20 kHz | 1.28kHz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 1.260" L x 0.630" W (32.00mm x 16.00mm) |
|
|
SPM-4343WSPEAKER, 8 OHM, 2.0/2.5W, 100DB, |
207 |
|
Datasheet |
SPM | Bulk | Active | Magnetic | General Purpose | 1.2 kHz ~ 20 kHz | 1.2kHz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Square | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 1.713" L x 1.713" W (43.50mm x 43.50mm) |
|
|
ASE05008MS-LWC60SPEAKER 2.5W 30OHM 97DB 680HZ |
697 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 680Hz | 8 Ohms | 97.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round, Rectangular Frame | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 1.969" L x 1.378" W (50.00mm x 35.00mm) |
|
CLS0362MA-1-L152SPEAKER 8OHM 500MW TOP PORT 89DB |
505 |
|
Datasheet |
CLS | Tray | Active | Magnetic | Low Profile | 550 Hz ~ 6 kHz | 550Hz | 8 Ohms | 89.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.417" Dia (36.00mm) |
|

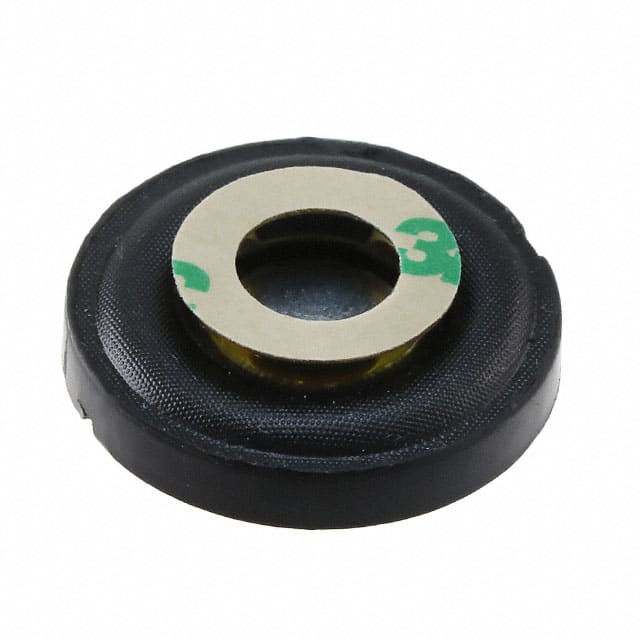

ASX02108-RSPEAKER 8OHM 250MW TOP PORT 71DB |
546 |
|
Datasheet |
ASX | Tray | Active | Magnetic | Exciter | 640 Hz ~ 10.5 kHz | 640Hz | 8 Ohms | 71.00 | 1W/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | - | Nd-Fe-B | - | - | Solder Pads | 0.823" Dia (20.90mm) |
|
AS04008CO-RSPEAKER 8OHM 2W TOP PORT 83DB |
1,899 |
|
Datasheet |
AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 500Hz | 8 Ohms | 83.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|

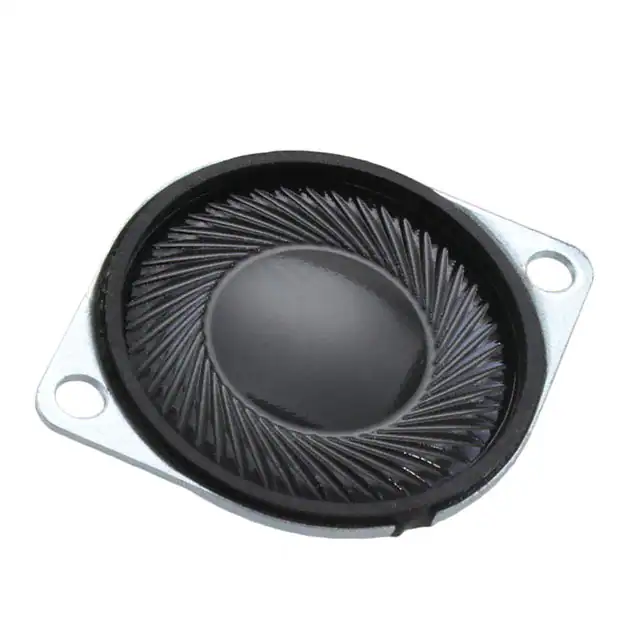

K 28 WPC BL - 8 OHMSPEAKER 8OHM 1W TOP PORT 75DB |
1,892 |
|
Datasheet |
Miniature Speaker | Bulk | Active | - | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
GA0776SPEAKER 8OHM 1W TOP PORT 92DB |
845 |
|
Datasheet |
GA | Box | Active | Magnetic | General Purpose | 192 Hz ~ 7 kHz | 270Hz | 8 Ohms | 92.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round, Square Frame | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 3.032" L x 3.032" W (77.00mm x 77.00mm) |
|
|
CMS-2511-34SPSPEAKER, 25 MM, 11 MM DEEP, ALUM |
310 |
|
Datasheet |
CMS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 250Hz | 4 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 3.5 W | Top | Round | Aluminum (AI) | Nd-Fe-B | - | - | Solder Tabs | 0.984" Dia (25.00mm) |
