Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRD2-1A-DC-1-BRNSWITCH ROCKER SPST 21A 14V |
570 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-1A-DC-1-BANSWITCH ROCKER SPST 21A 14V |
468 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-1A-DC-1-BGNSWITCH ROCKER SPST 21A 14V |
407 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-1A-DC-1-BGNSWITCH ROCKER SPST 21A 14V |
393 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|

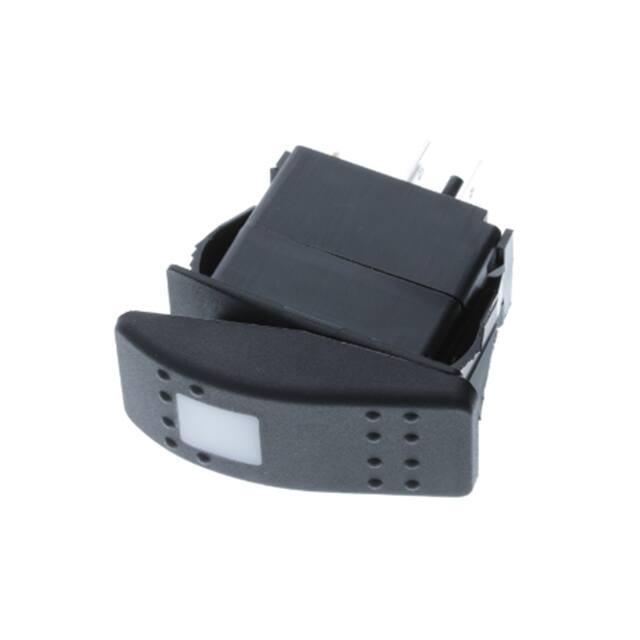

SRD1-1A-DC-1-BANSWITCH ROCKER SPST 21A 14V |
331 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Amber | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
M2012TXG13-EASWITCH ROCKER SPDT 0.4VA 28V |
193 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|

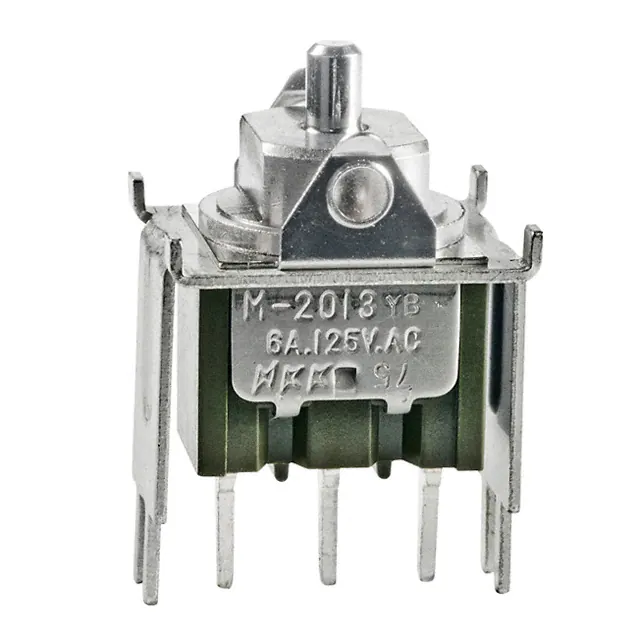

M2013TZW13SWITCH ROCKER SPDT 6A 125V |
169 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2012TXG13-DASWITCH ROCKER SPDT 0.4VA 28V |
7,987 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
7101J2AV2BE7SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Blue | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
SRA2-1D-DC-1-RGSWITCH ROCKER SPDT 21A 14V |
494 |
|
Datasheet |
SRA2 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 21A (DC) | - | 14 V | Oval - Illuminated | Black | No Marking | LED, Green/Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
C1572AABRSWITCH ROCKER DPDT 16A 250V |
0 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
M2012TXW30SWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2012TXG30-DASWITCH ROCKER SPDT 0.4VA 28V |
6,296 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
SRD2-2A-DC-1-RNNSWITCH ROCKER DPST 21A 125V |
499 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD2-2A-DC-1-BNNSWITCH ROCKER DPST 21A 125V |
498 |
|
Datasheet |
SRD2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRD1-2A-DC-1-RNNSWITCH ROCKER DPST 21A 125V |
496 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
SRA2-1F-DC-1-RGSWITCH ROCKER SPDT 21A 14V |
451 |
|
Datasheet |
SRA2 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 21A (DC) | - | 14 V | Oval - Illuminated | Black | No Marking | LED, Green/Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | CSA, cURus, ENEC |
|
SRD1-2A-DC-1-BNNSWITCH ROCKER DPST 21A 125V |
428 |
|
Datasheet |
SRD1 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20 (AC), 21 (DC) | 125 V | 14 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.20mm | -25°C ~ 85°C | - |
|
|
C6090ALBR21197WSWITCH ROCKER DPST 20A 277V |
0 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
M2012TXW41SWITCH ROCKER SPDT 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole, Right Angle, Vertical | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
