Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN12TXW30-DASWITCH ROCKER MINI PC MOUNT |
130 |
|
- |
M | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
C1551AABBSWITCH ROCKER DPST-NO 16A 250V |
997 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
|
C6053ALBG21197WSWITCH ROCKER DPST 20A 277V |
748 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
|
MN12TXG13-DASWITCH ROCKER MINIATURE PC MNT |
289 |
|
- |
M | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|

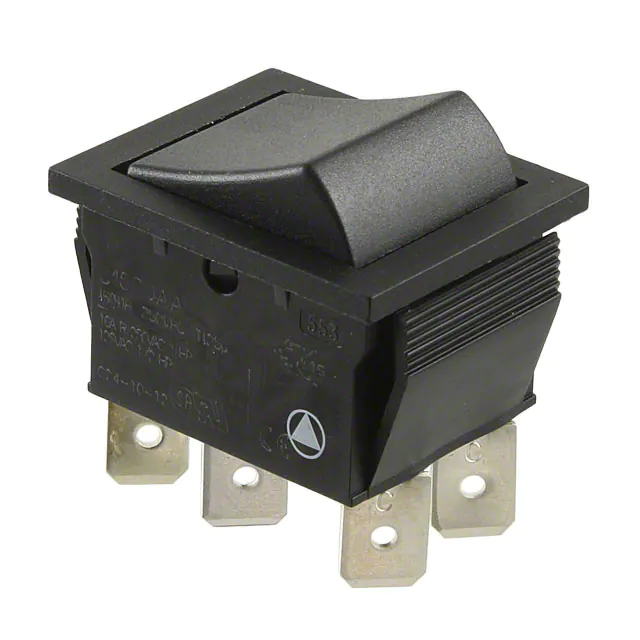

C1560AABBSWITCH ROCKER DPDT 16A 250V |
1,024 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
58311-01SWITCH ROCKER SPST 15A 24V |
150 |
|
Datasheet |
58311 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (DC) | - | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.83mm x 21.08mm | - | - |
|
|
MN12TXG30-DASWITCH ROCKER MINI PC MOUNT |
253 |
|
- |
M | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
C1571ABBBSWITCH ROCKER DPDT 16A 250V |
199 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|

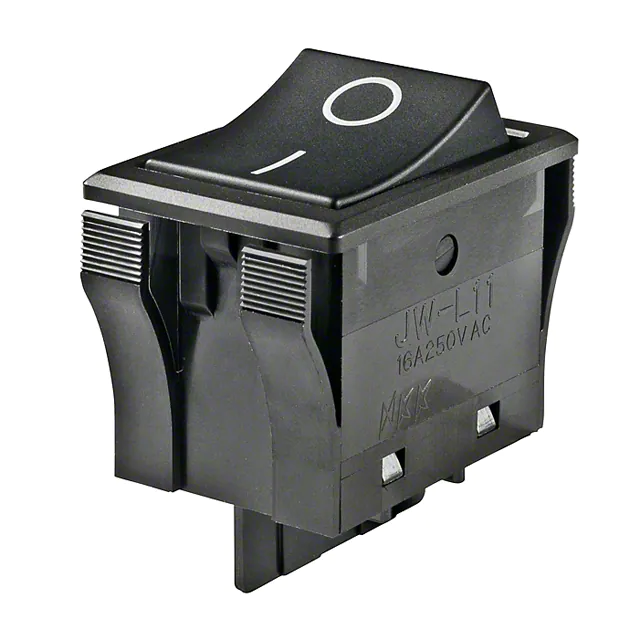

JWL11RA2A/UCVSWITCH ROCKER SPST 16A 125V |
210 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|

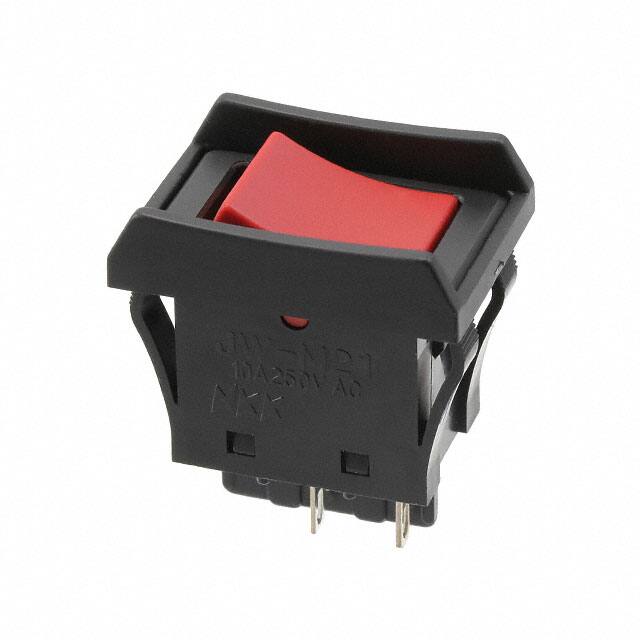

JWM21BCA-ASWITCH ROCKER DPST 10A 125V |
112 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|
GRB292D301BBRG1SWITCH ROCKER SPDT 21A 14V |
391 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 21A (DC) | - | 14 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green/Red | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 36.60mm x 21.00mm | -25°C ~ 85°C | - |
|
|
MN22TXW41-DASWITCH ROCKER MINI PC MOUNT |
200 |
|
- |
M | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | - | - | -30°C ~ 85°C | UL |
|
|
C1572AABBSWITCH ROCKER DPDT 16A 250V |
987 |
|
Datasheet |
1550 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|

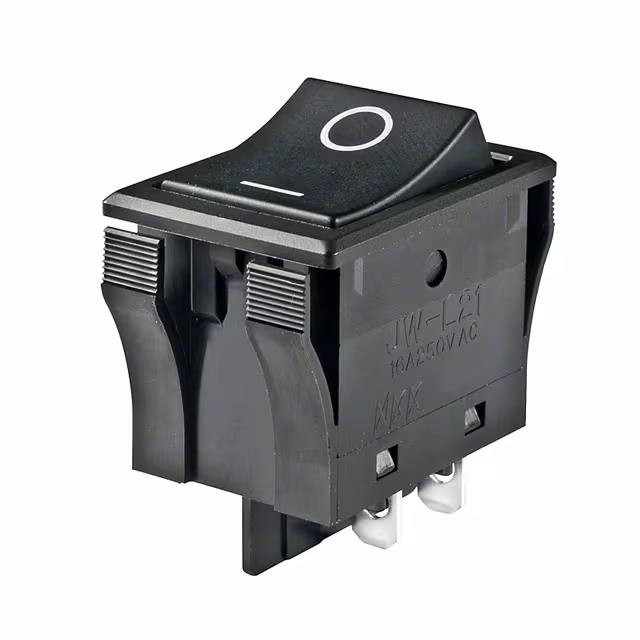

JWL21RA1A/UCVSWITCH ROCKER DPST 16A 125V |
8 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
MN13TJW01-FA-1ASWITCH ROCKER MINIATURE SNAP |
506 |
|
- |
M | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | UL |
|
JWL21BA1A-ASWITCH ROCKER DPST 16A 125V |
4 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 29.50mm x 20.50mm | -25°C ~ 70°C | CSA, UL, VDE |
|
|
GRB-292-0100SWITCH ROCKER DPDT 10A 28V |
941 |
|
Datasheet |
GRB | Bag | Active | Panel Mount, Snap-In | DPDT | Mom-On-Mom | 10A (DC) | - | 28 V | Paddle | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 36.60mm x 21.00mm | - | - |
|
58328-04SWITCH ROCKER SPST 25A 12V |
234 |
|
Datasheet |
58328 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.83mm x 21.08mm | - | - |
|
58328-11SWITCH ROCKER SPST 25A 12V |
153 |
|
Datasheet |
58328 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 25A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 36.83mm x 21.08mm | - | - |
|
|
1-1571076-013.0 MM X 19.2 MM, PNL CUT-OUT S |
600 |
|
Datasheet |
* | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
