Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GW12LBPSWITCH ROCKER SPDT 0.4VA 28V |
120 |
|
Datasheet |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
GRB260A101BBNNSWITCH ROCKER SPST 20A 125V |
1,016 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
|
C6050ALBR-1197WSWITCH ROCKER DPST 20A 277V |
1,768 |
|
Datasheet |
6050 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Flat | Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
|
300AWSP1J1BLKM6QESWITCH ROCKER SPDT 5A 120V |
1,303 |
|
Datasheet |
300A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
RD221-MB-B-0-NSWITCH ROCKER SPST-NO 12A 125V |
3,435 |
|
Datasheet |
R | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | BEAB, CSA, DEMKO, FIMKO, NEMKO, SEMKO, SEV, TUV, UL, VDE |
|

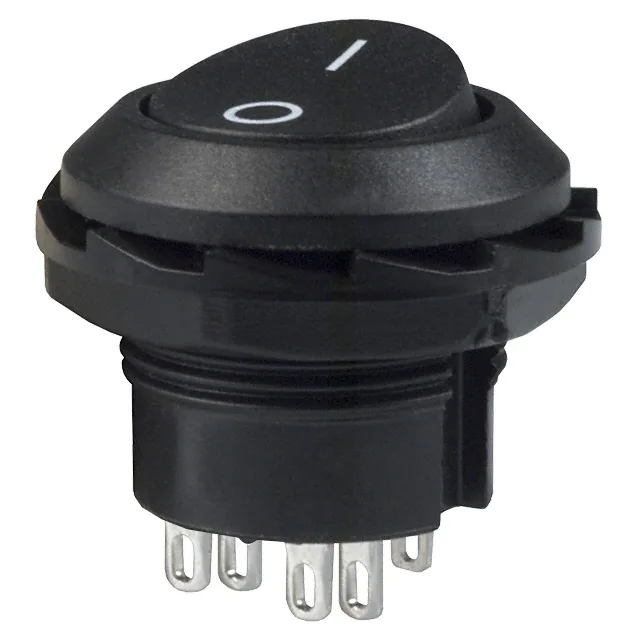

RR3130BBLKBLKFSSWITCH ROCKER DPDT 10A 125V |
2,415 |
|
Datasheet |
RR3130 | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Solder Lug | - | - | Circular - 18.20mm Dia | 0°C ~ 65°C | - |
|
RR3130BBLKBLKESSWITCH ROCKER DPDT 10A 125V |
265 |
|
Datasheet |
RR3130 | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Solder Lug | - | - | Circular - 18.20mm Dia | 0°C ~ 65°C | - |
|
AJ7202BTVFSWITCH ROCKER DPST 10A 250V |
1,171 |
|
Datasheet |
AJ7 | Bulk | Not For New Designs | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|

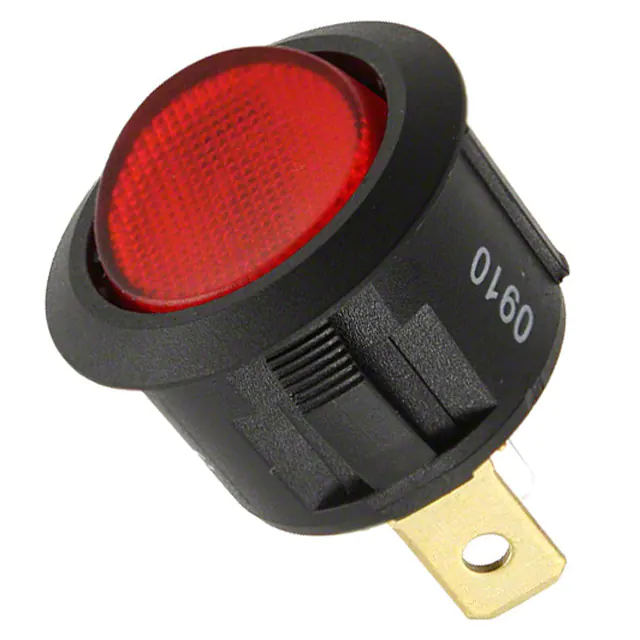

GRB293B01BRSWITCH ROCKER SPST 20A 125V |
3,560 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | Neon, Red | - | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 22.00mm Dia | -25°C ~ 85°C | - |
|
300AWSP1R1REDM1RESWITCH ROCKER SPDT 0.4VA 20V |
391 |
|
Datasheet |
300A | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|

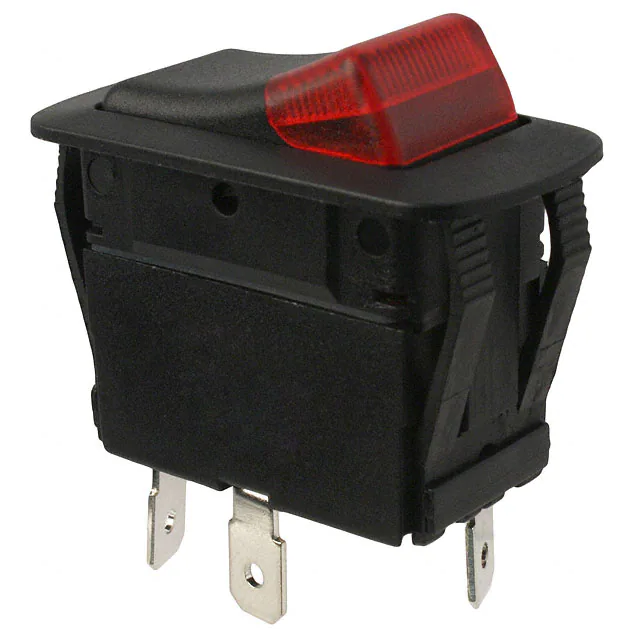

GRB260A401BBRN1SWITCH ROCKER SPST 20A 12V |
1,836 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (DC) | - | 12 V | Concave (Curved) - Illuminated | Black | No Marking | Incandescent, Red | 14 VDC | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
|
A8L-21-15N3SWITCH ROCKER DPST 10A 125V |
195 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cULus, EN, UL |
|

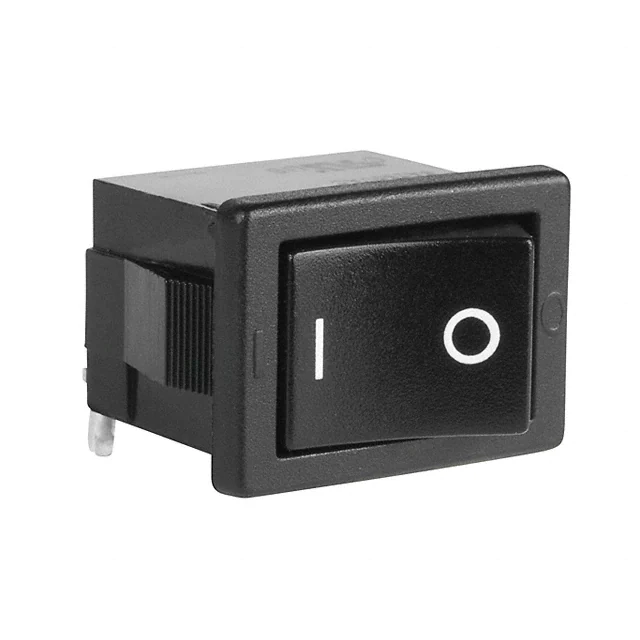

CWSB11AA1HSWITCH ROCKER SPST 6A 250V |
167 |
|
Datasheet |
CWSB | Tray | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

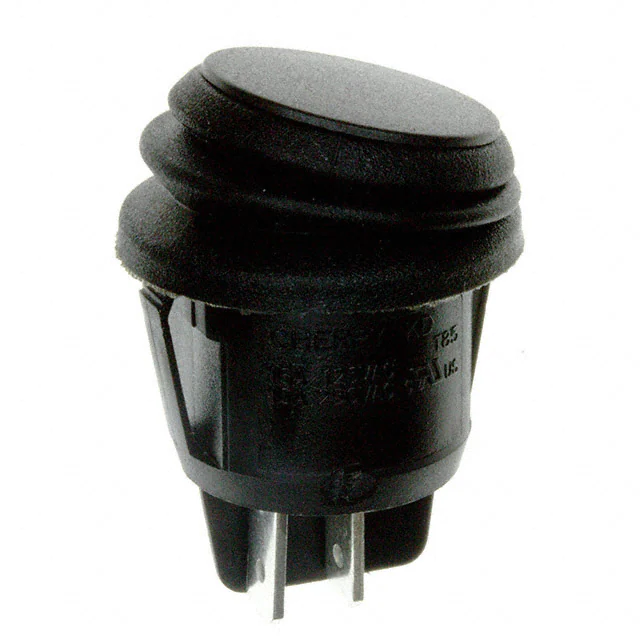

KDH3ANA1BBBSWITCH ROCKER DPST 16A 125V |
739 |
|
- |
KD | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 10A (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|

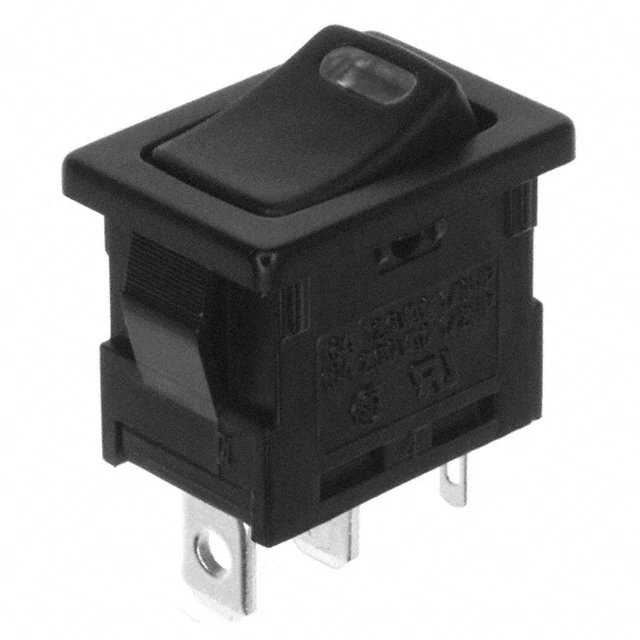

DA102J5RS215QF6SWITCH ROCKER SPST 16A 125V |
342 |
|
Datasheet |
DA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | LED, Red | 1.85 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|

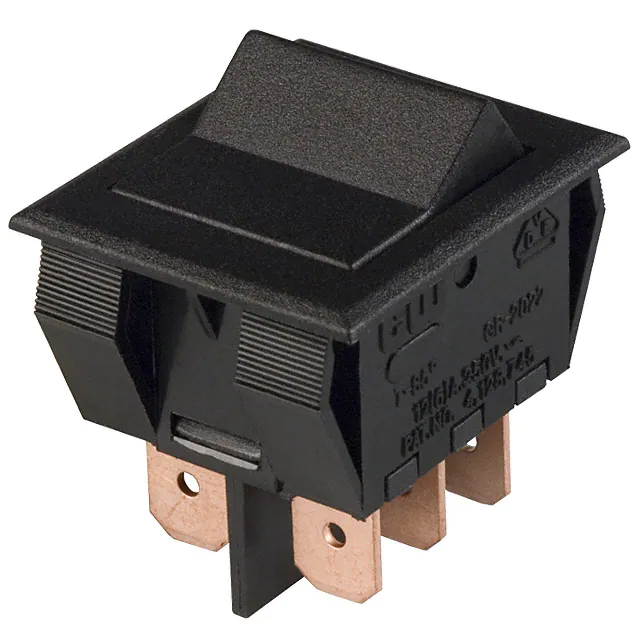

GR-2022-1600SWITCH ROCKER DPDT 16A 125V |
646 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.20mm x 22.15mm | -20°C ~ 105°C | - |
|
LRA511-RS-B/012VSWITCH ROCKER SPST 10A 30V |
527 |
|
Datasheet |
LRA | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (DC) | - | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | 0°C ~ 85°C | CSA, UL, VDE |
|

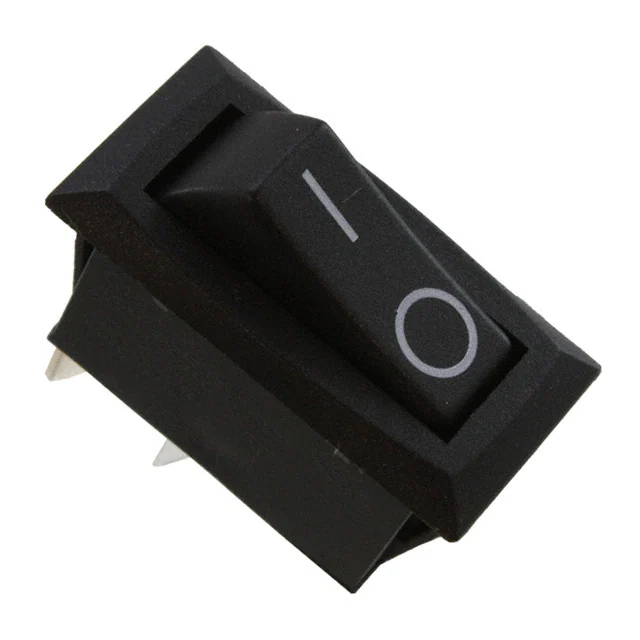

C1300ARBB-602AWSWITCH ROCKER SPST 20A 250V |
5,432 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 14.10mm | - | CSA, UL |
|

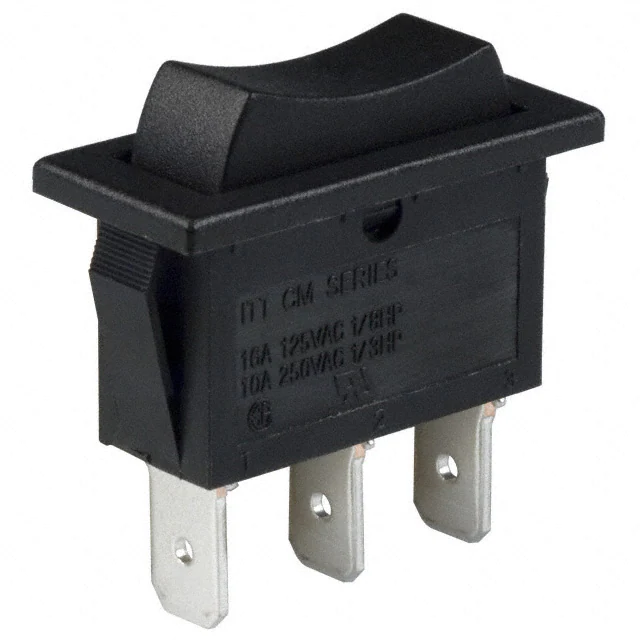

CM107J12S205QASWITCH ROCKER SPDT 16A 125V |
2,446 |
|
Datasheet |
CM | Tray | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 11.20mm | -20°C ~ 80°C | cULus |
|

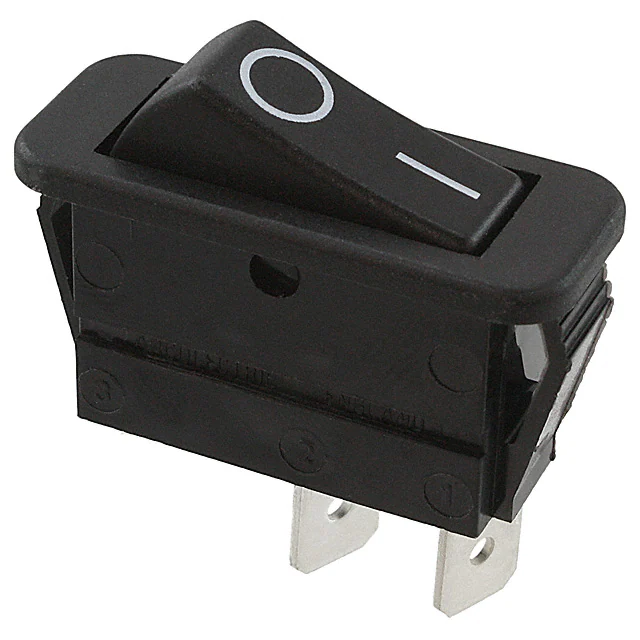

C1300ABBB-602AWSWITCH ROCKER SPST 20A 250V |
792 |
|
Datasheet |
1300 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | - | CSA, UL |
