Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1553ATNAESWITCH ROCKER DPST 20A 250V |
925 |
|
Datasheet |
1553 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.30mm x 22.40mm | - | CSA, UL |
|

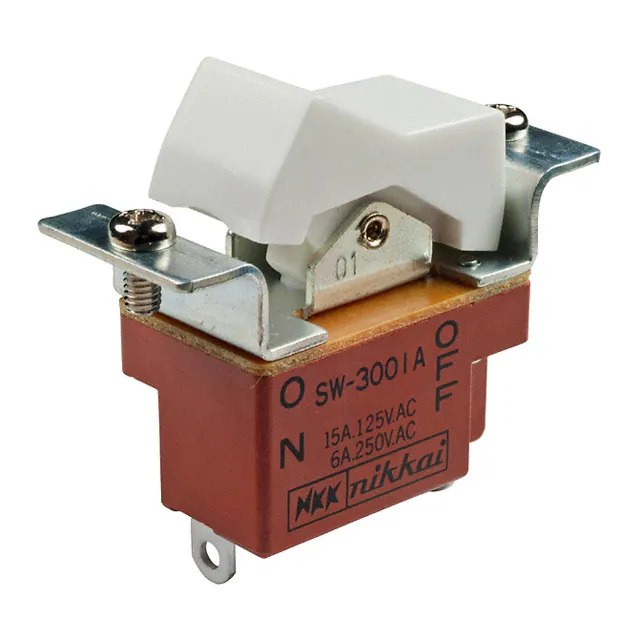

SW3001ASWITCH ROCKER SPST 15A 125V |
513 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | - | -10°C ~ 70°C | CSA, UL |
|
4-1571986-6SWITCH ROCKER SPDT 5A 120V |
444 |
|
Datasheet |
A | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
|

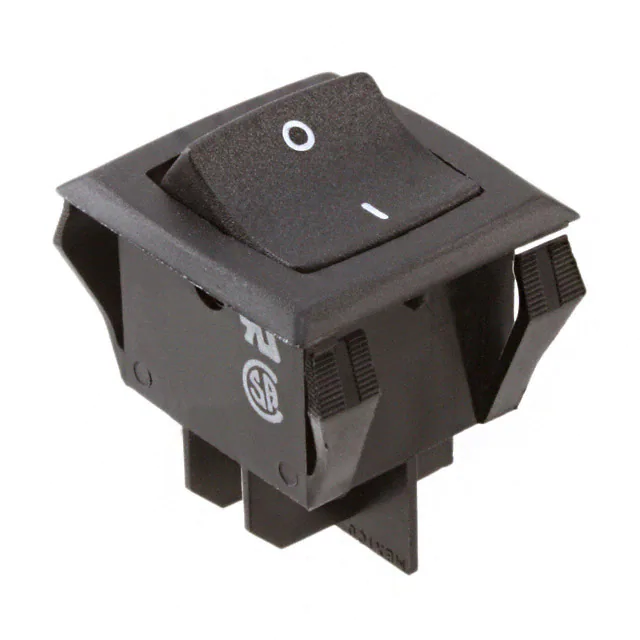

RGSCC201-R-B-B-ESWITCH ROCKER DPST 20A 125V |
382 |
|
Datasheet |
RG | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 25.40mm | -40°C ~ 85°C | CSA, UL, VDE |
|

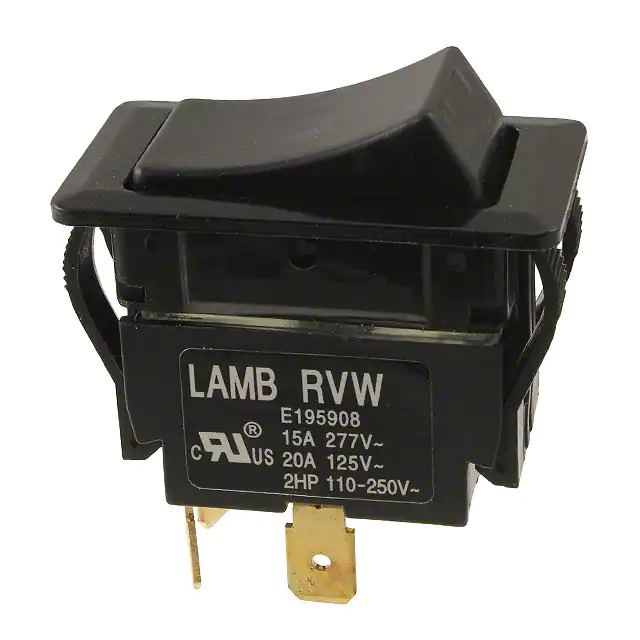

RVWG42D1100SWITCH ROCKER DPST 20A 125V |
297 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
C1520WABBSWITCH ROCKER SPDT 16A 250V |
1,406 |
|
Datasheet |
1500 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | Splash Proof | - | Rectangular - 27.30mm x 12.30mm | - | CSA, UL |
|
RBW2BBLKBLKEF0SWITCH ROCKER DPDT 16A 125V |
570 |
|
Datasheet |
RBW2 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | - |
|

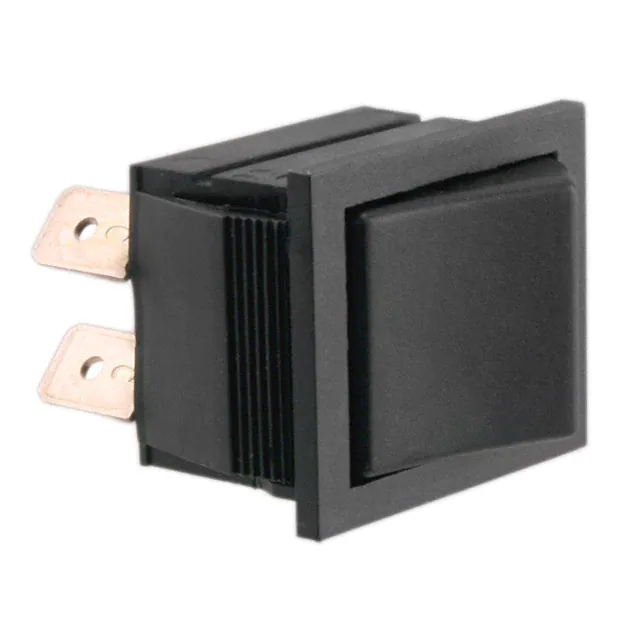

C1350AABBSWITCH ROCKER DPST-NO 20A 250V |
1,296 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.30mm x 22.40mm | - | CSA, UL |
|
CN202J11S115PQSWITCH ROCKER DPST 16A 125V |
1,154 |
|
Datasheet |
CN | Tray | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.40mm x 22.20mm | -20°C ~ 85°C | cULus |
|

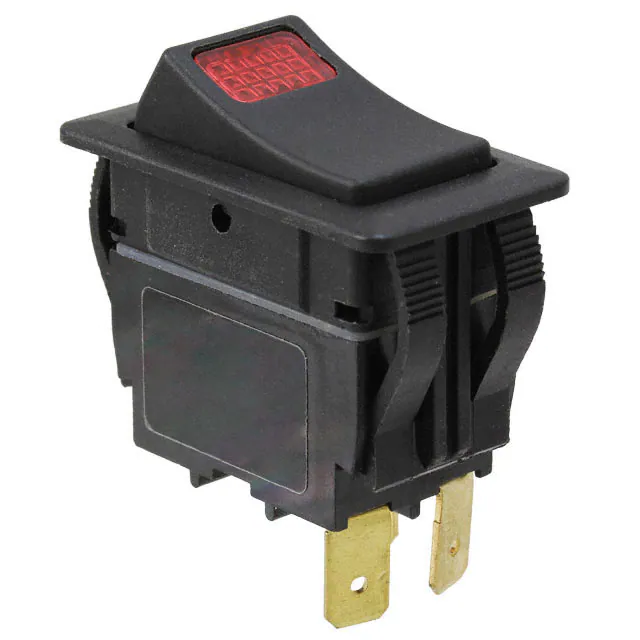

RVW41D1100-116SWITCH ROCKER SPST 20A 125V |
274 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
RBW2ABLKRILFF1SWITCH ROCKER DPST 16A 125V |
645 |
|
Datasheet |
RBW2 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP66 - Dust Tight, Water Resistant | - | Rectangular - 30.00mm x 22.30mm | -20°C ~ 85°C | - |
|
|
AJ8W201BFSWITCH ROCKER DPST 16A 250V |
136 |
|
Datasheet |
AJ8 | Bulk | Not For New Designs | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|

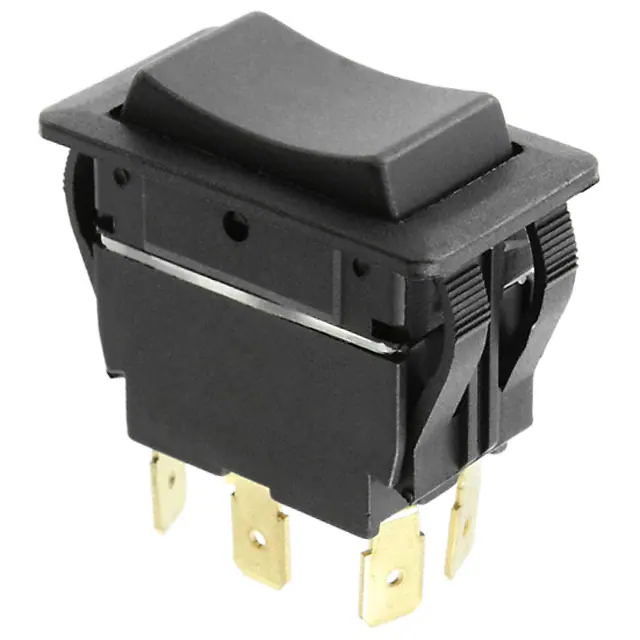

RVW46D1100SWITCH ROCKER DPDT 20A 125V |
807 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
C1250APBB-085WSWITCH ROCKER DPST 16A 250V |
1,331 |
|
Datasheet |
1250 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 1A (DC) | 250 V | 30 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.20mm x 12.40mm | - | CSA, UL |
|
|
RB343A1100-136SWITCH ROCKER SPDT 16A 125V |
263 |
|
Datasheet |
RB3 | Box | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Flat - Illuminated | Black | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.20mm x 13.80mm | 0°C ~ 55°C | cULus, ENEC |
|
|
RB346A1100-136SWITCH ROCKER SPDT 16A 125V |
264 |
|
Datasheet |
RB3 | Box | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 16A (AC) | 125 V | - | Flat - Illuminated | Black | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.20mm x 13.80mm | 0°C ~ 55°C | cULus, ENEC |
|
R713FA1-SXXXNB4NNXSWITCH ROCKER SPDT 16A 30V |
425 |
|
Datasheet |
R7 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (DC) | - | 30 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
WB246D1100SWITCH ROCKER DPDT 20A 125V |
1,088 |
|
Datasheet |
WB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP55 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | CE, cULus, TUV |
|

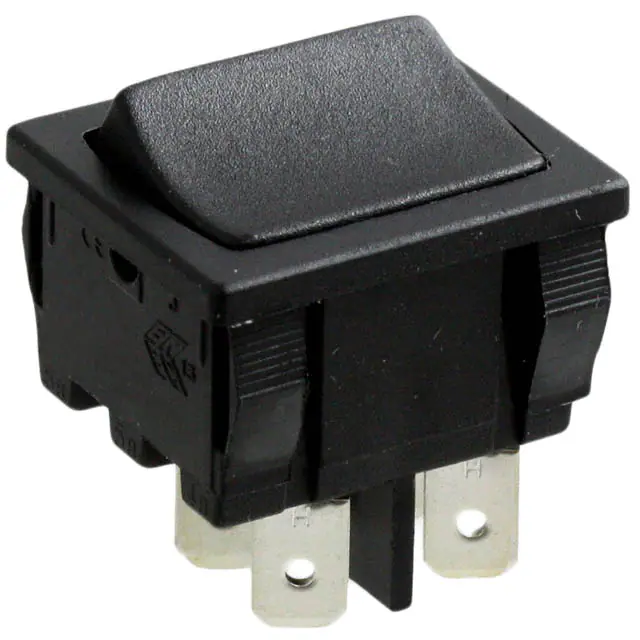

H8650VBBBSWITCH ROCKER DPST 10A 277V |
371 |
|
Datasheet |
8600 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 277 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 21.90mm x 19.30mm | - | CSA, UL |
|

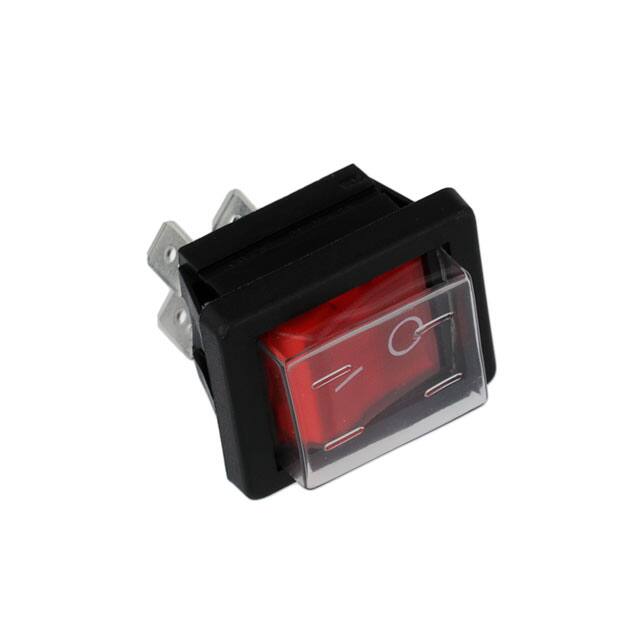

C1353ALGNFSWITCH ROCKER DPST 16A 250V |
719 |
|
Datasheet |
1350 | - | Active | - | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) - Illuminated | Red | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 22.00mm x 30.00mm | - | CSA, UL |
