Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

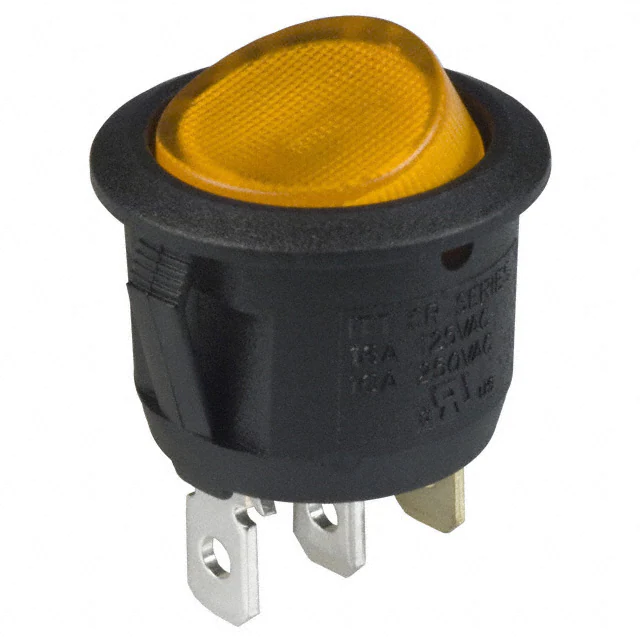

CR102J3AS215QF7SWITCH ROCKER SPST 16A 125V |
1,003 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Amber | No Marking | Neon, Amber | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|

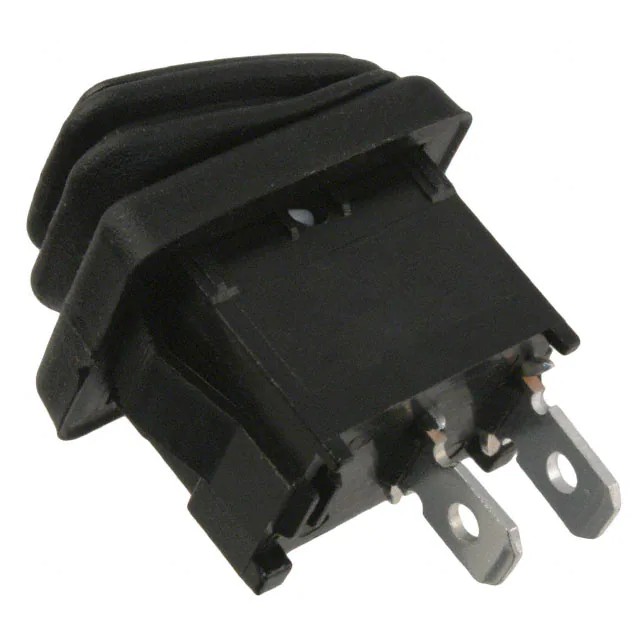

GRB066A802BB1SWITCH ROCKER SPST 16A 125V |
1,039 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 20A (DC) | 125 V | 12 V | Flat | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | cULus, ENEC |
|
CR102J3GS215QF7SWITCH ROCKER SPST 16A 125V |
280 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
RB242D1021-147SWITCH ROCKER DPST 20A 125V |
1,827 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Blue | O - | Neon, Blue | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

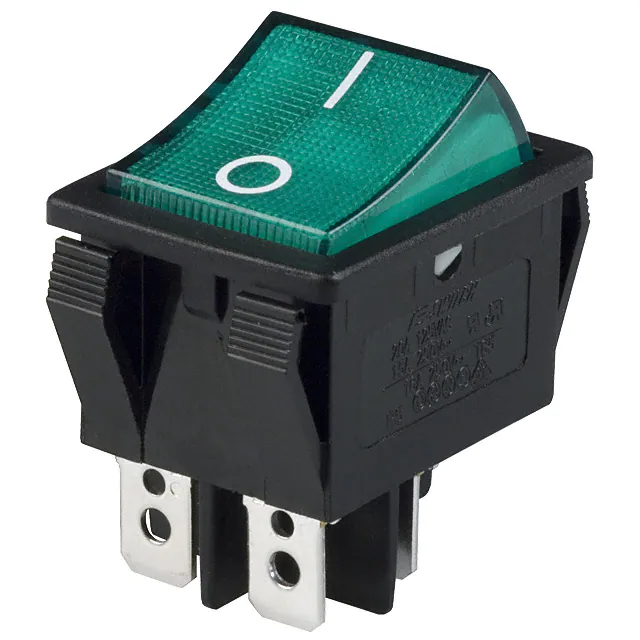

R5BBLKGRNFF1SWITCH ROCKER DPST 20A 125V |
1,403 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|

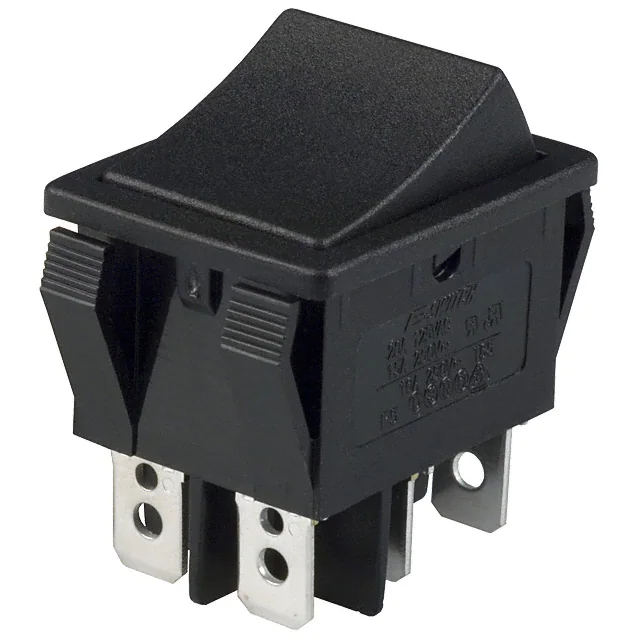

R5DBLKBLKEF0SWITCH ROCKER DPDT 15A 125V |
845 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
|
R5BBLKGRNFF3SWITCH ROCKER DPST 20A 125V |
729 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | LED, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|

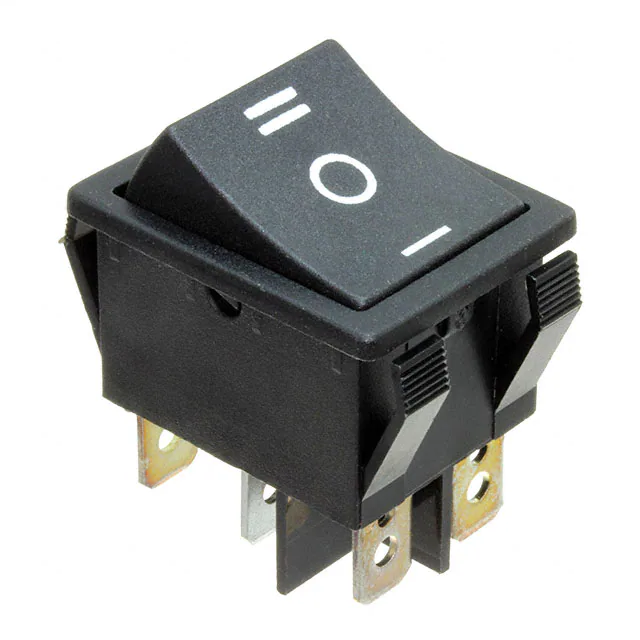

R5DBLKBLKBF0SWITCH ROCKER DPDT 15A 125V |
369 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|

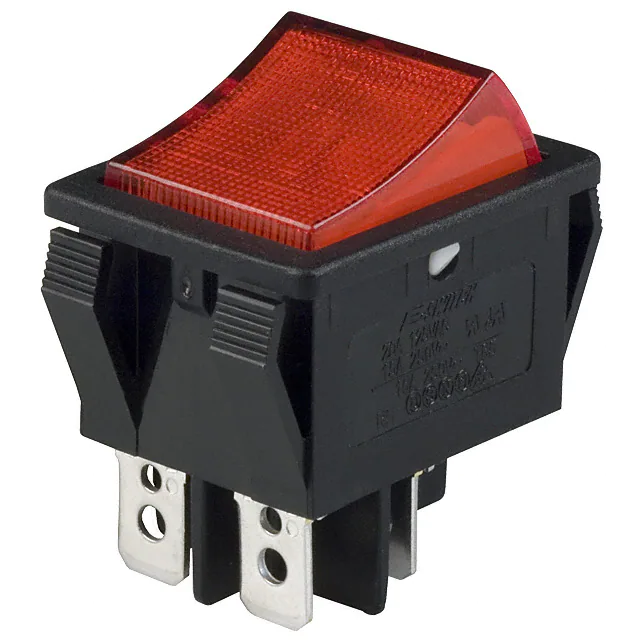

R5BBLKREDEF1SWITCH ROCKER DPST 20A 125V |
285 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
R5BBLKREDFF3SWITCH ROCKER DPST 20A 125V |
188 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | LED, Red | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|

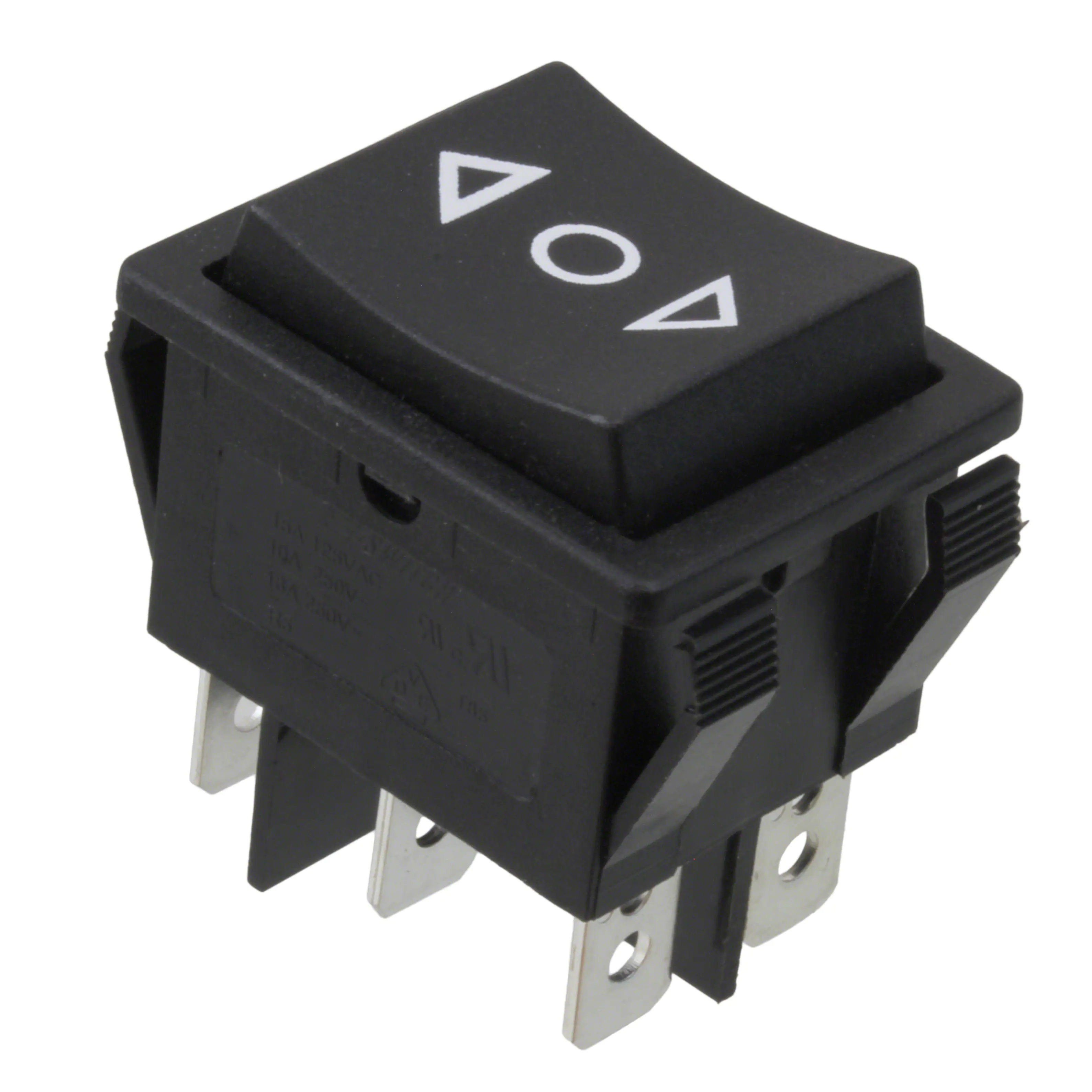

R5GBLKBLKHF0SWITCH ROCKER DPDT 15A 125V |
1,306 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | Triangular Arrows with O | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
471001264143SWITCH ROCKER SPST 16A 250V |
127 |
|
Datasheet |
WS-RSTV | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CQC, ENEC, UL |
|

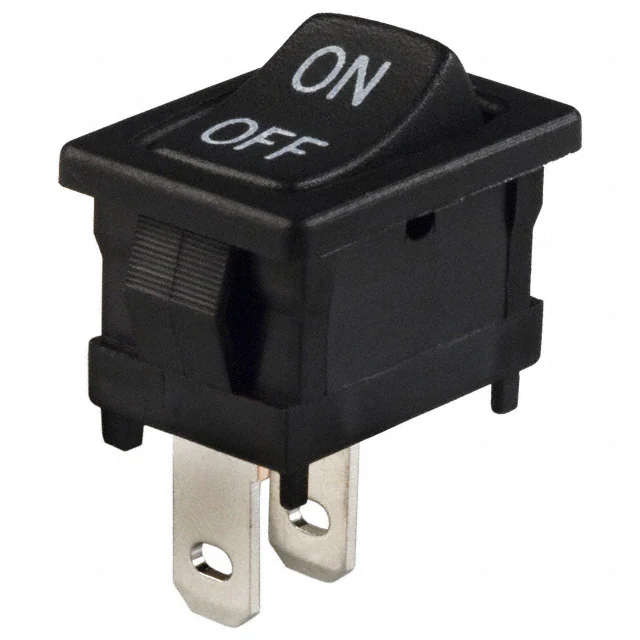

D102J12S217DQASWITCH ROCKER SPST 4A 125V |
574 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|
R2101C2NBBSWITCH ROCKER DPST 20A 125V |
480 |
|
- |
R | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 125°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|

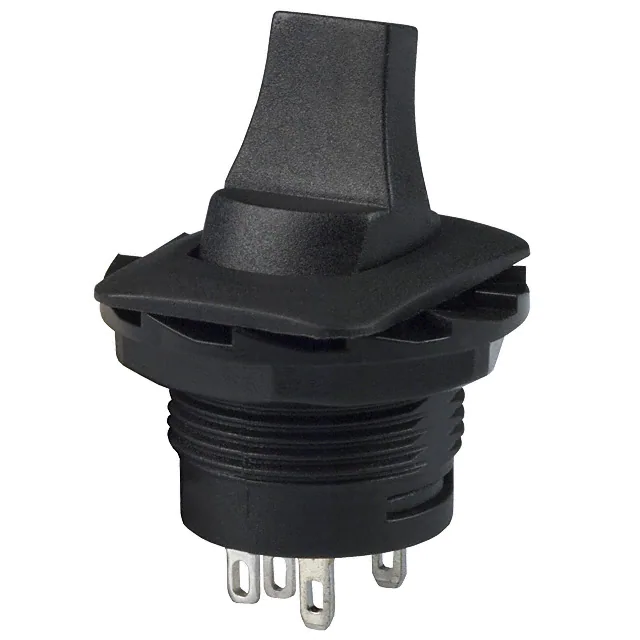

RR3405ALGRNSWITCH ROCKER SPST 10A 125V |
383 |
|
Datasheet |
RR3405 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 10A (AC) | 125 V | - | Paddle - Illuminated | Black | No Marking | LED, Green | 2.4 VDC | Solder Lug | - | - | Circular - 18.00mm Dia | - | - |
|
H8553VBNAFSWITCH ROCKER DPST 15A 250V |
1,008 |
|
Datasheet |
8553 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 250 V | - | Concave (Curved) | - | - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | - | CSA, UL |
|

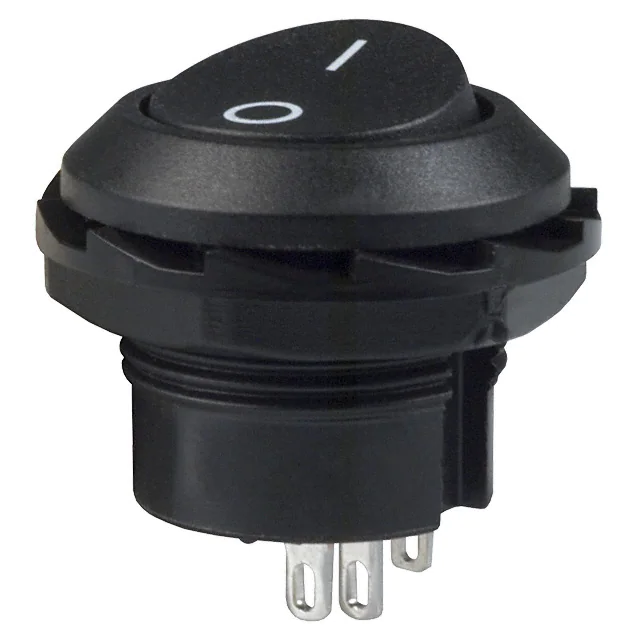

RR3130CBLKBLKFSSWITCH ROCKER SPDT 10A 125V |
1,134 |
|
Datasheet |
RR3130 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPDT | On-On | 10A (AC) | 125 V | - | Round | Black | O - | - | - | Solder Lug | - | - | Circular - 18.20mm Dia | 0°C ~ 65°C | - |
|

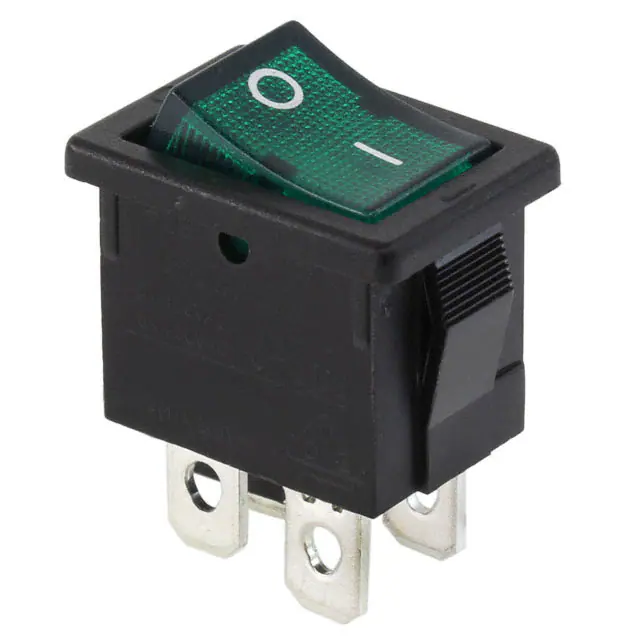

R1973BBLKGILFF1SWITCH ROCKER DPST 9A 125V |
155 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|

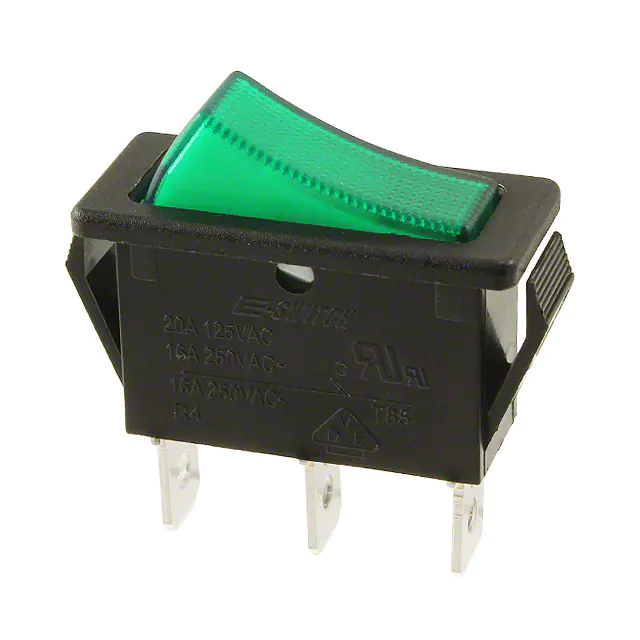

R4JBLKGILEF1SWITCH ROCKER SPST 20A 125V |
107 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|

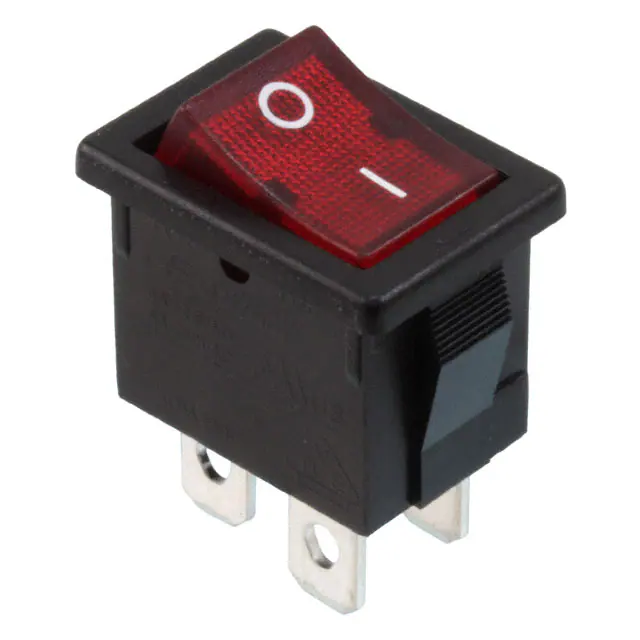

R1973BBLKRILFF3SWITCH ROCKER DPST 9A 125V |
330 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Incandescent, Red | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
