Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSR2215RD612SWITCH ROCKER SPDT 16A 12V |
514 |
|
Datasheet |
DSR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Red | ON OFF, Vertical | LED, Red | 12 VDC | Solder, Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 19.40mm x 13.00mm | -25°C ~ 85°C | cULus |
|

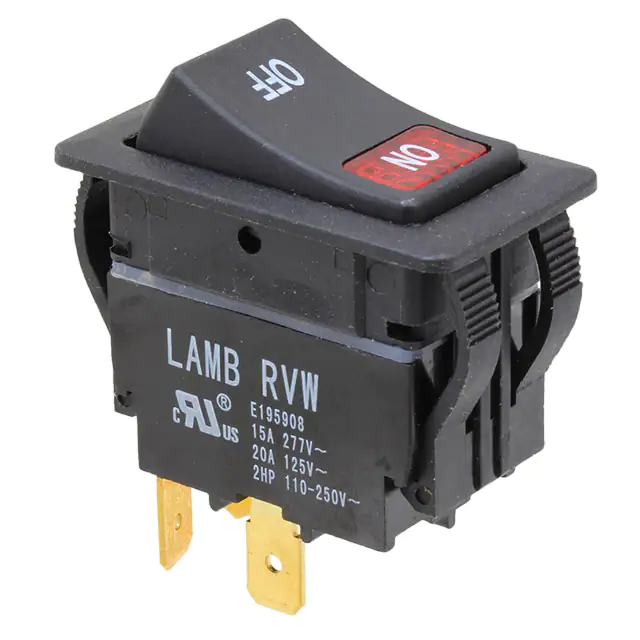

RVW41D1123-116SWITCH ROCKER SPST 20A 125V |
682 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | ON OFF, Vertical | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|

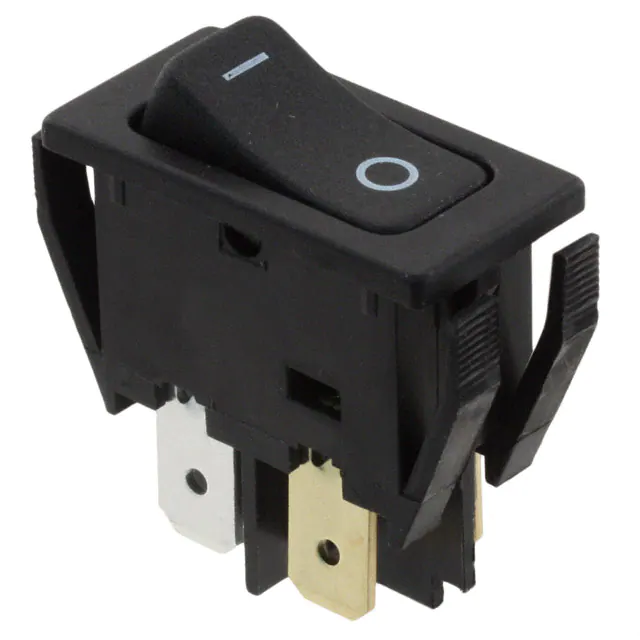

C1250APBB-086WSWITCH ROCKER DPST 16A 250V |
2,350 |
|
Datasheet |
1250 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC), 1A (DC) | 250 V | 30 V | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.20mm x 12.40mm | - | CSA, UL |
|

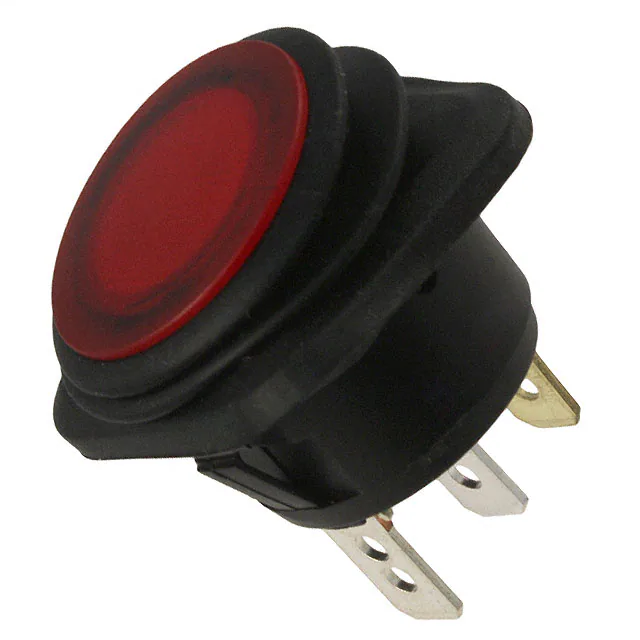

GRB203B801BRRN5SWITCH ROCKER SPST 10A 250V |
865 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 250 V | - | Round - Illuminated | Red | No Marking | LED, Red | - | Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 24.00mm Dia | -25°C ~ 85°C | - |
|

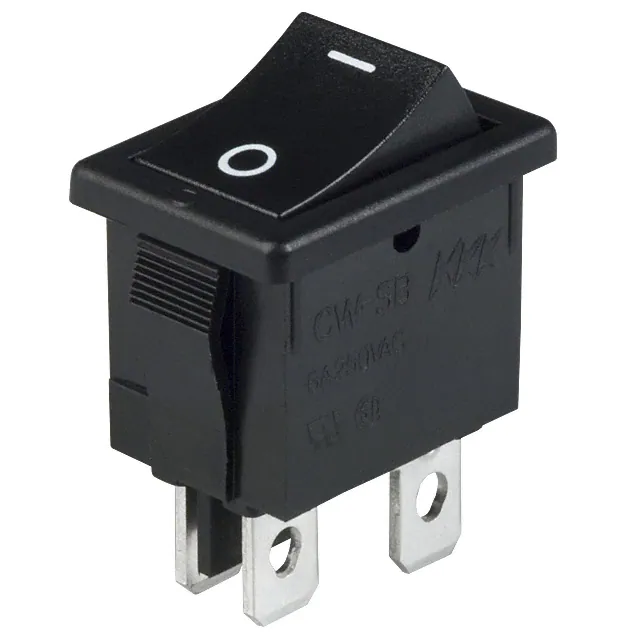

CWSB21AA1FSWITCH ROCKER DPST 6A 250V |
711 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

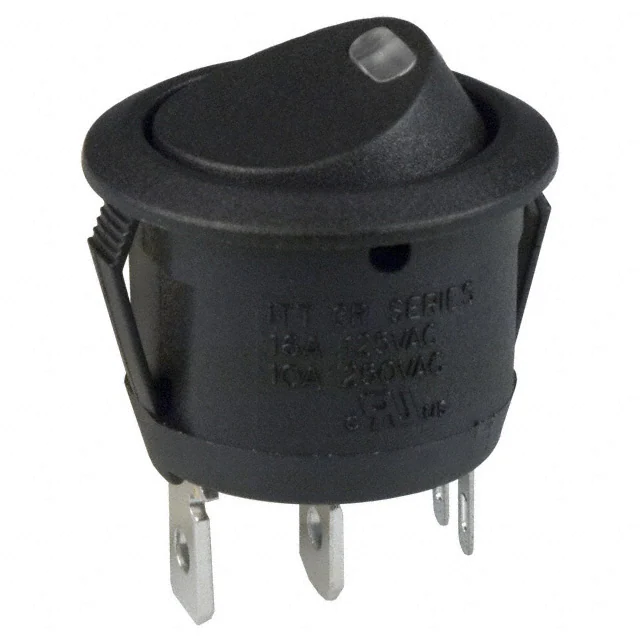

CR102J5RS215QF6SWITCH ROCKER SPST 16A 125V |
1,326 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Red | No Marking | LED, Red | 1.85 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|
GRB213B03BBSWITCH ROCKER DPDT 6A 125V |
349 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 6A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Circular - 12.20mm Dia | - | - |
|
62115929-0-0-VSWITCH ROCKER DPDT 8A 125V |
178 |
|
Datasheet |
621 | Box | Active | Panel Mount, Snap-In | DPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Two-Tone Rocker | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CSA, UL |
|

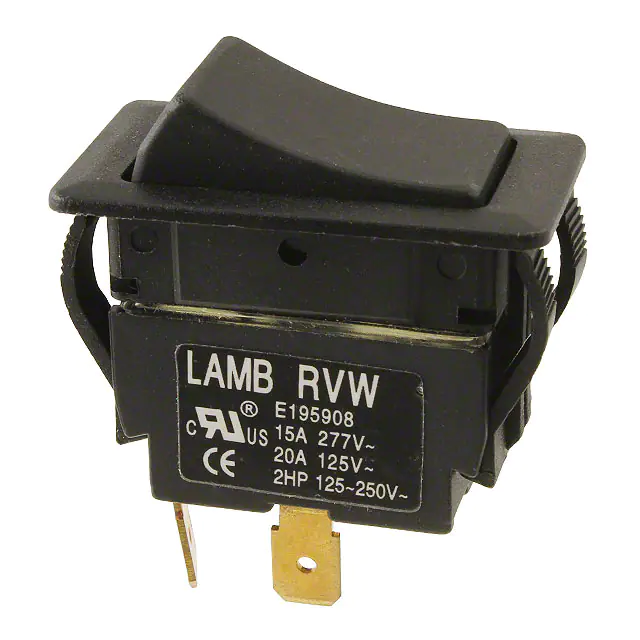

RVW41D1100SWITCH ROCKER SPST 20A 125V |
2,639 |
|
Datasheet |
RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
KGC2ANB1BBDSWITCH ROCKER SPST 20A 125V |
1,204 |
|
- |
KG | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | - |
|

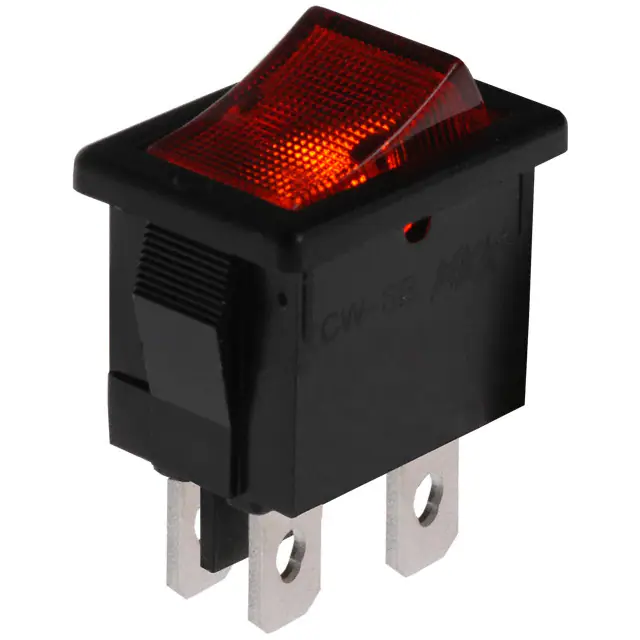

CWSB21CACFSWITCH ROCKER DPST 9A 125V |
117 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | cULus |
|
CWSB21FAFFSWITCH ROCKER DPST 9A 125V |
2,192 |
|
Datasheet |
CWSB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -20°C ~ 85°C | cULus |
|
WB246D112SSWITCH ROCKER DPDT 20A 125V |
1,948 |
|
Datasheet |
WB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP55 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | CE, cULus, TUV |
|
C1353AHNAASWITCH ROCKER DPST-NO 20A 250V |
949 |
|
Datasheet |
1350 | - | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 12 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | - | - | CSA, UL |
|
GRB260G101BBNNSWITCH ROCKER SPDT 20A 125V |
392 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 20A (AC), 21A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP56 - Dust Protected, Water Resistant | - | Rectangular - 36.60mm x 21.20mm | -20°C ~ 85°C | cULus, ENEC |
|
R712FA1-SXXXNBDNNXSWITCH ROCKER SPDT 16A 30V |
202 |
|
Datasheet |
R7 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (DC) | - | 30 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 37.00mm x 21.10mm | 0°C ~ 55°C | cULus |
|
AJ8202BTVFSWITCH ROCKER DPST 16A 250V |
552 |
|
Datasheet |
AJ8 | Bulk | Not For New Designs | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.20mm x 12.90mm | -25°C ~ 85°C | cULus, ENEC, VDE |
|

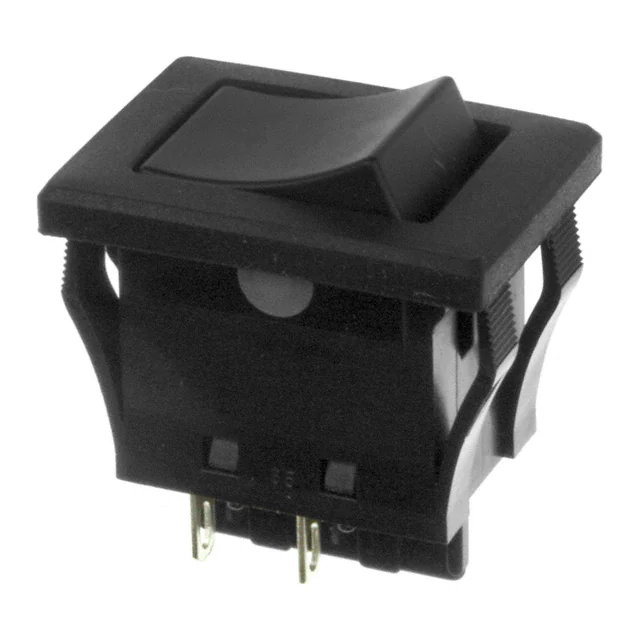

JWMW11RAASWITCH ROCKER SPST 10A 125V |
4,021 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 25.00mm x 15.40mm | -25°C ~ 85°C | CSA, UL, VDE |
|
|
300AWSP4J2BLKVS2RESWITCH ROCKER SPDT 0.4VA 20V |
109 |
|
Datasheet |
300A | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
C6053ALBG31197WSWITCH ROCKER DPST 20A 277V |
1,324 |
|
Datasheet |
6050 | - | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 277 V | - | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 22.20mm | - | CSA, UL |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
