Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

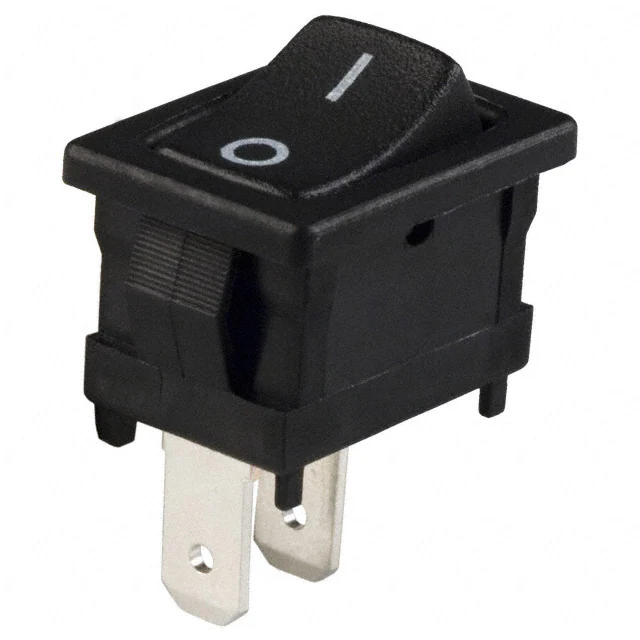

D102J12S215PQASWITCH ROCKER SPST 4A 125V |
12,307 |
|
Datasheet |
D | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 4A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -30°C ~ 65°C | cULus |
|

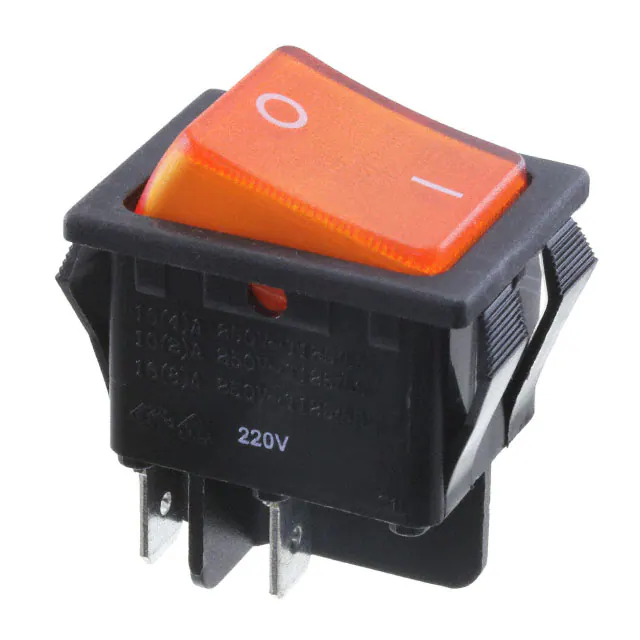

RB242D1021-127SWITCH ROCKER DPST 20A 125V |
2,501 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | O - | Neon, Amber | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
R1966ABLKBLKEFBLUSWITCH ROCKER SPST 15A 125V |
1,233 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Blue | 3.2 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

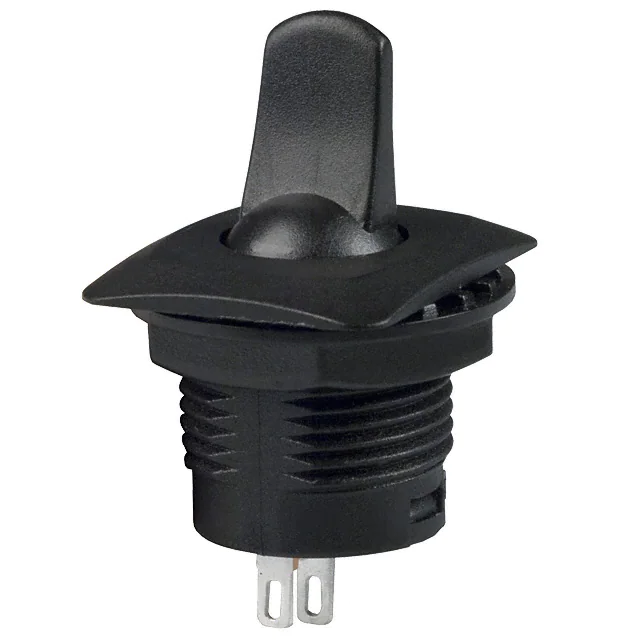

RR3402ASWITCH ROCKER SPST 6A 125V |
843 |
|
Datasheet |
RR3402 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 6A (AC) | 125 V | - | Paddle | Black | No Marking | - | - | Solder Lug | - | - | Circular - 15.00mm Dia | 0°C ~ 65°C | - |
|
WRG32F2FBRLNSWITCH ROCKER DPST 16A 125V |
3,443 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
C1353VQNAASWITCH ROCKER DPST-NO 20A 250V |
2,063 |
|
Datasheet |
1350 | - | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (DC) | 250 V | 24 V | Concave (Curved) | - | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | - | CSA, UL |
|
PRASC1-16F-BBR00SWITCH ROCKER SPST 16A 125V |
1,567 |
|
Datasheet |
PRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
|
400MSP1R6BLKM6QESWITCH ROCKER SPDT 3A 120V |
11,599 |
|
Datasheet |
400 | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | cULus |
|

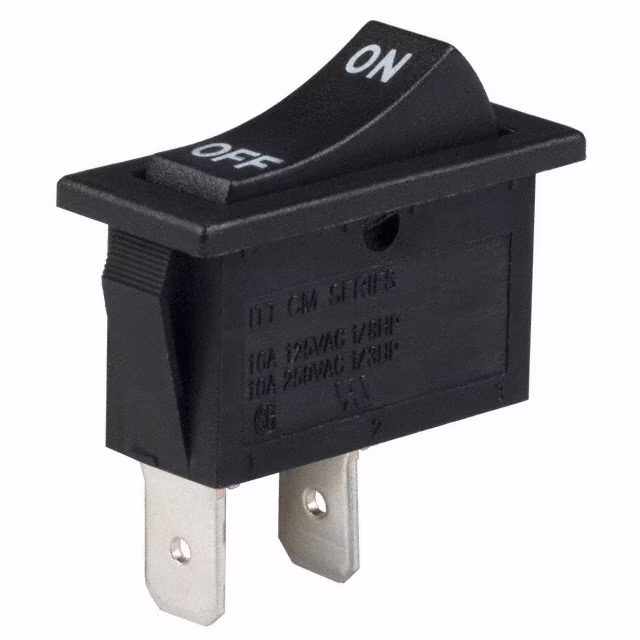

CM102J12S205DQASWITCH ROCKER SPST 16A 125V |
955 |
|
Datasheet |
CM | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 11.20mm | -20°C ~ 80°C | cULus |
|

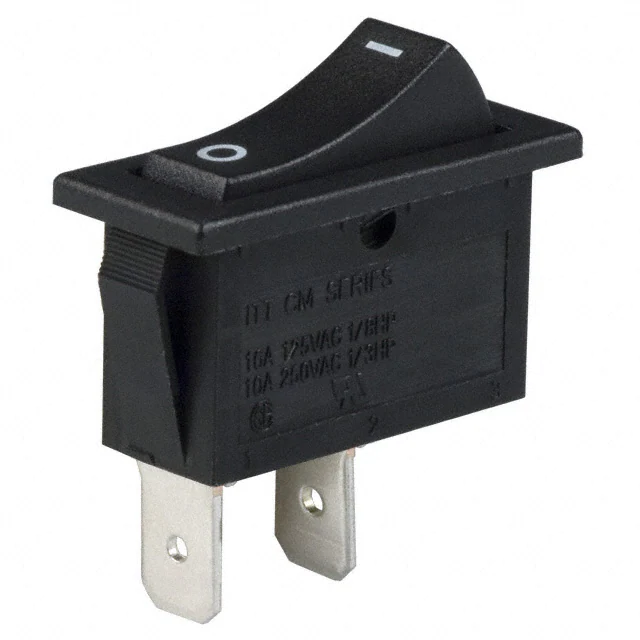

CM102J12S205HQASWITCH ROCKER SPST 16A 125V |
639 |
|
Datasheet |
CM | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.40mm x 11.20mm | -20°C ~ 80°C | cULus |
|
A8L-21-11N2SWITCH ROCKER DPST 10A 125V |
4,841 |
|
Datasheet |
A8L | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 55°C | cULus, EN, UL |
|

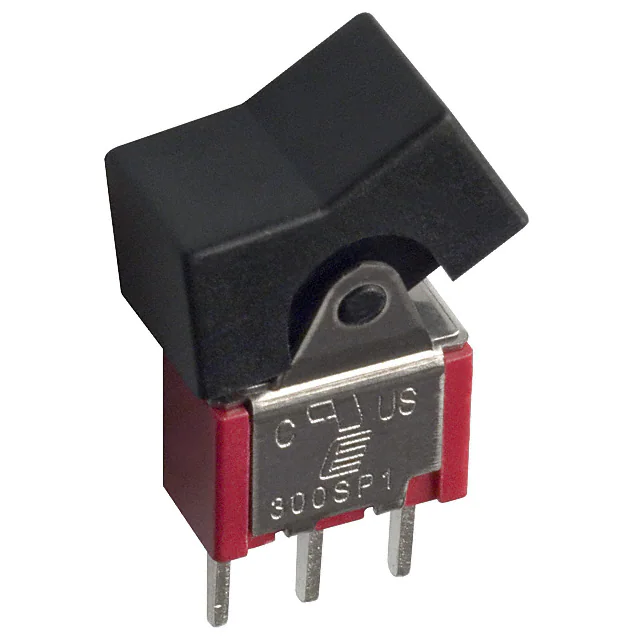

300SP1J1BLKM2QESWITCH ROCKER SPDT 5A 120V |
3,310 |
|
Datasheet |
300 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

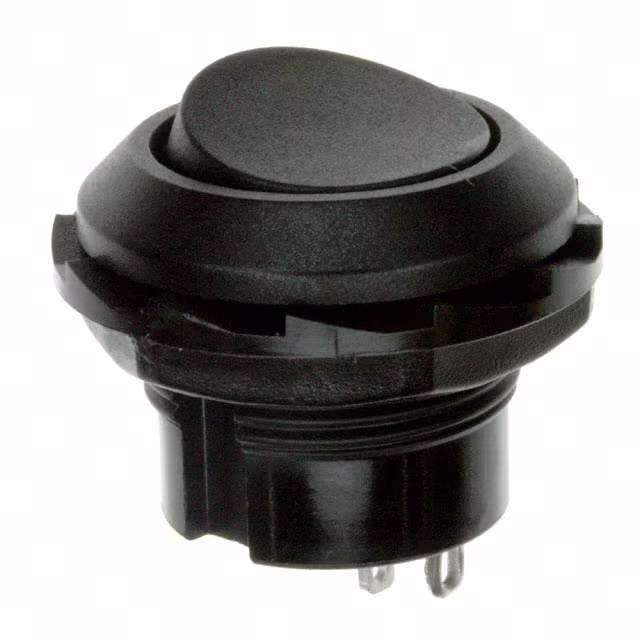

RR3130ABLKBLKESSWITCH ROCKER SPST 10A 125V |
1,242 |
|
Datasheet |
RR3130 | Bulk | Active | Panel Mount, Threaded Body with Nut | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Solder Lug | - | - | Circular - 18.20mm Dia | 0°C ~ 65°C | - |
|
CF-LD-1DC-AR2WSWITCH ROCKER SPDT 0.4VA 28V |
540 |
|
Datasheet |
CF-LD | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | - | - | -40°C ~ 85°C | - |
|
DA102J12S217HQFSWITCH ROCKER SPST 16A 125V |
1,039 |
|
Datasheet |
DA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -20°C ~ 85°C | cULus |
|
471001264142SWITCH ROCKER SPST 16A 250V |
220 |
|
Datasheet |
WS-RSTV | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CQC, ENEC, UL |
|

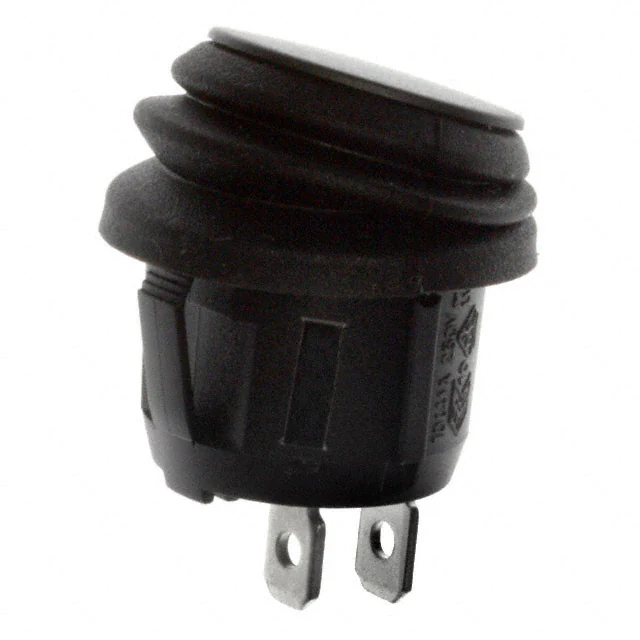

KCA2ANA1BBBSWITCH ROCKER SPST 16A 125V |
2,149 |
|
- |
KC | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 10A (DC) | 125 V | 28 V | Round | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
ASR11R112BQSWITCH ROCKER SPDT 5A 120V |
1,756 |
|
Datasheet |
ASR | Bulk | Active | Panel Mount, Flange | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Rectangular - 17.96mm x 10.62mm | -40°C ~ 85°C | cULus |
|

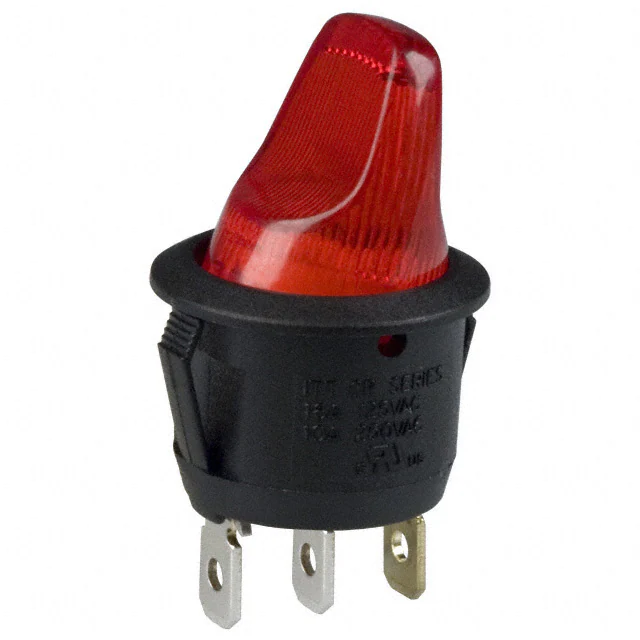

CR102JPRS215QF7SWITCH ROCKER SPST 10A 125V |
994 |
|
Datasheet |
CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Paddle - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
|

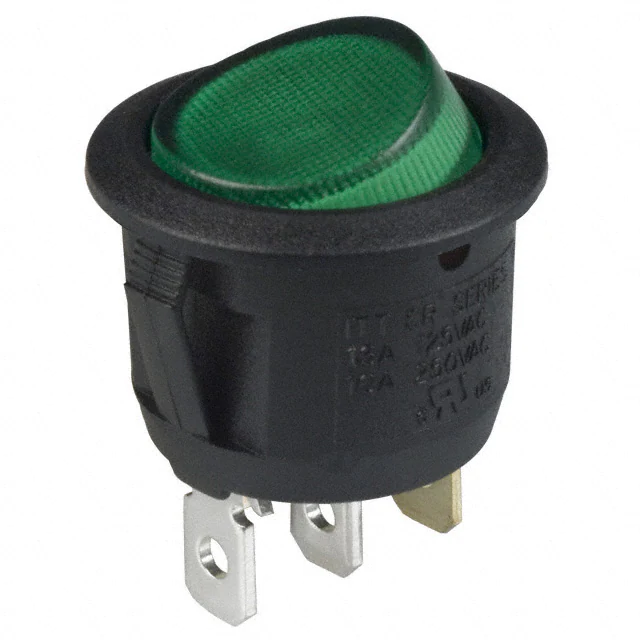

CR102J3GS215QF8SWITCH ROCKER SPST 16A 125V |
1,113 |
|
Datasheet |
CR | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Green | No Marking | Neon, Green | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 85°C | cULus |
Rocker Switches Electronic Components
Explore Rocker Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
