Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR812C1000-117SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RR8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Black | No Marking | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
|
RR812C1021-117SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RR8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | White | O - | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, UL |
|
|
RB141D1011-137SWITCH ROCKER SPST 20A 125V |
0 |
|
- |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear | O - | Neon, Green | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
|
R1966ABLKBLKAFSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
|
R1966ABLKORGFFSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Orange | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

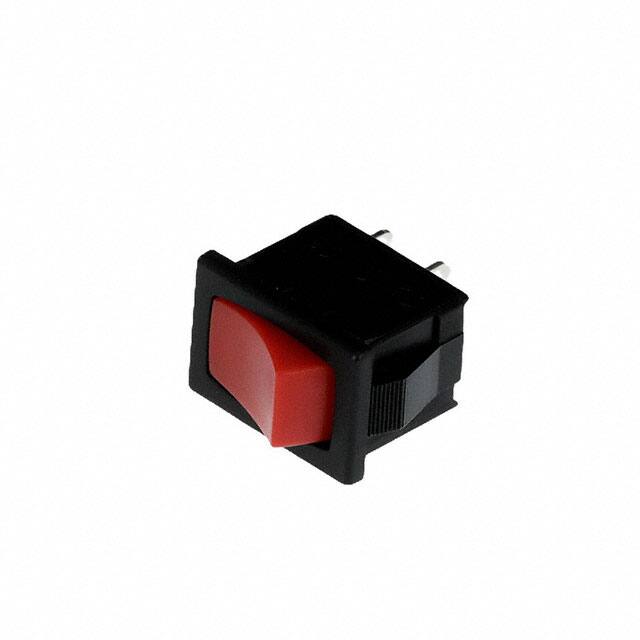

R1966ABLKREDEFSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R1966ABLKBLKIGSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

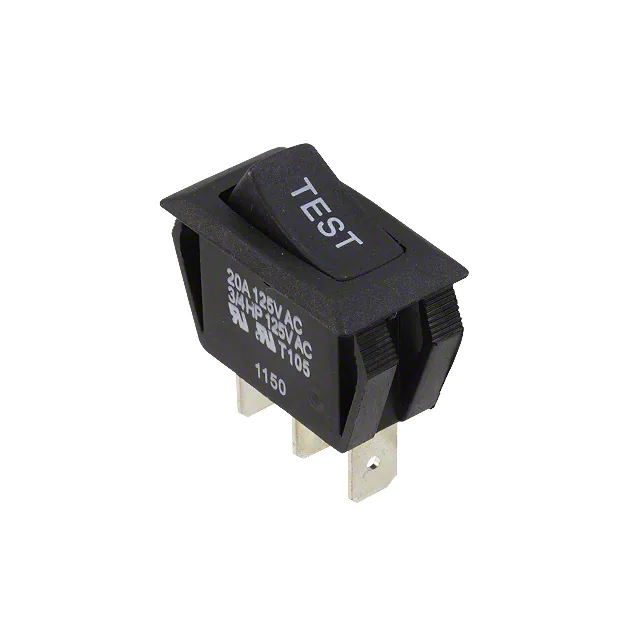

RSC24BD112TESTSWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | TEST | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.20mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
|
|
PRASA1-16F-BB0CWSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
PRA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | ENEC, UL, VDE |
|
|
RB1C5E1129SWITCH ROCKER SPDT 16A 125V |
0 |
|
- |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
|
R1973ABLKBLKFF0SWITCH ROCKER SPST 9A 125V |
0 |
|
Datasheet |
R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
R6ABLKREDEFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
R6 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 6.65mm | -20°C ~ 65°C | - |
|
|
R4FBLKREDEFOSWITCH ROCKER SPST-NO 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
GRS-4013C-0000SWITCH ROCKER SPDT 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|

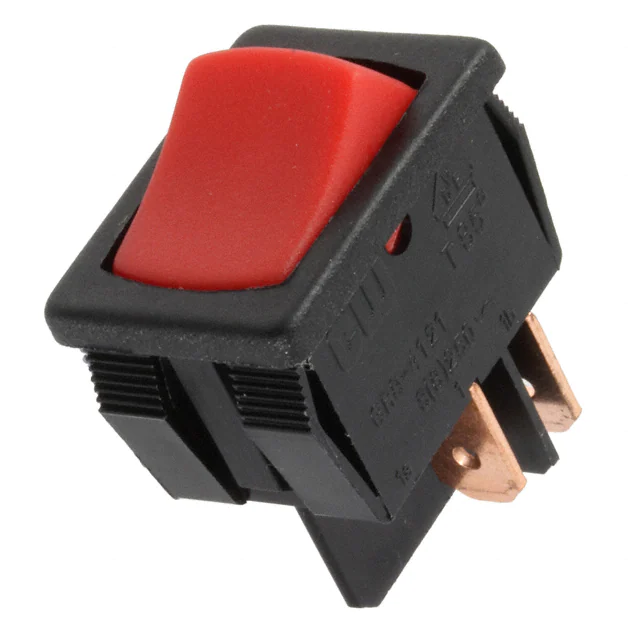

GRS-4121-0001SWITCH ROCKER DPST 8A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -65°C ~ 125°C | - |
|
|
RR31125TFWCN10SWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
RR3 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Round - Illuminated | Green | ON OFF, Vertical | Neon, Clear | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | -20°C ~ 70°C | - |
|
|
R6AGRYGRYFFSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
R6 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Gray | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 6.65mm | -20°C ~ 65°C | - |
|
RE113C1100SWITCH ROCKER SPDT 16A 125V |
0 |
|
Datasheet |
RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Oval | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 105°C | cUL, VDE, UL |
|
|
RL1223CWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1223BBCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Red | O | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
