Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL1223DWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Red | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1223NWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Red | Dot | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1223EWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Red | II, I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1223EBCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Red | II, I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1223DBCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Red | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1223BWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Red | O | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RA1422APSWITCH ROCKER SPDT 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|

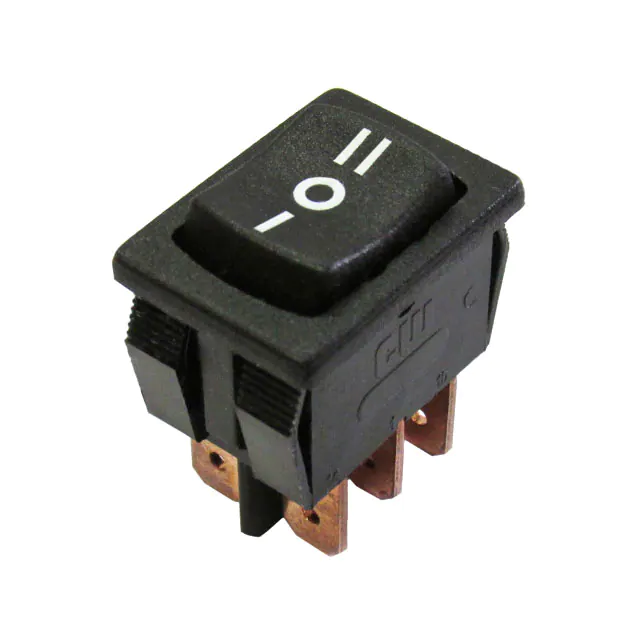

GRS-4023A-0020SWITCH ROCKER DPDT 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 13A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4023B-0000SWITCH ROCKER DPDT 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 13A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
R4GBLKBLUEF0SWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Blue | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
RB141D1100-2Z216SWITCH ROCKER |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MR210C4NBBROCKER SWITCH MR PANEL MOUNT |
0 |
|
- |
MR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 80°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|
LRA32H2BBBNNSWITCH ROCKER DPST 10A 125V |
0 |
|
Datasheet |
LR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | CE, cULus, VDE |
|

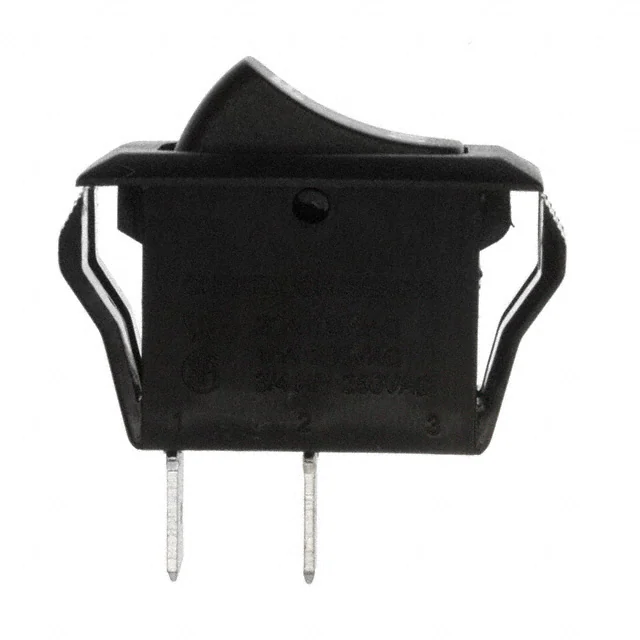

CRE22F2PBBNESWITCH ROCKER SPST 20A 125V |
0 |
|
- |
CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
CRE22F2FBRNESWITCH ROCKER SPST 20A 125V |
0 |
|
- |
CR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 12.10mm | -20°C ~ 85°C | - |
|
|
RB242C2000-115SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | White | No Marking | Incandescent, Red | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
GRS-4021-0011SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4021-0013SWITCH ROCKER DPST 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Terminal Barriers | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
GRS-4011-1602SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | Polarized | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
GRSP-4011-0008SWITCH ROCKER SPST 13A 125V |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
