Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSC441D1A2Z11SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | Light Bulb | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.60mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
|
RB1Z071C2200216Z09ACCF01SWITCH ROCKER |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | - | - | - | - | - | Concave (Curved) - Illuminated | White | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
RB141C1000-124SWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | No Marking | Incandescent, Amber | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
|
RB141C1000-144SWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Blue | No Marking | Incandescent, Blue | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
|
RL1123NBCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (AC) | 125 V | - | Concave (Curved) | Red | Dot | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus |
|
|
RL1123CBCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus |
|
|
RL1122NRCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus |
|
|
RL1122CRCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus |
|
|
RL1123ACSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus |
|
|
RL1122ACSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus |
|
|
R4ABLKBLKDF0SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | - = | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4ABLKBLKGF0SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4ABLKREDEF0SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
R4ABLKREDIF0SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
RR111C1100-234SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Black | No Marking | LED, Green | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
|
RRA12C1921SWITCH ROCKER DPST 15A 125V |
0 |
|
Datasheet |
RRA, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (AC) | 125 V | - | Round | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.00mm Dia | -20°C ~ 105°C | cUL, UL |
|

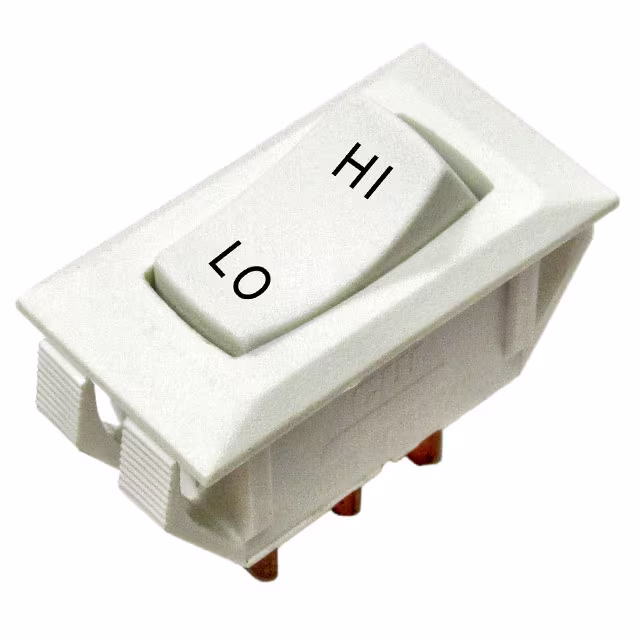

GRS-2012-2037SWITCH ROCKER SPDT 8A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 8A (AC) | 125 V | - | Concave (Curved) | White | HI LO | - | - | Quick Connect - 0.250" (6.3mm) | - | Polarized | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|

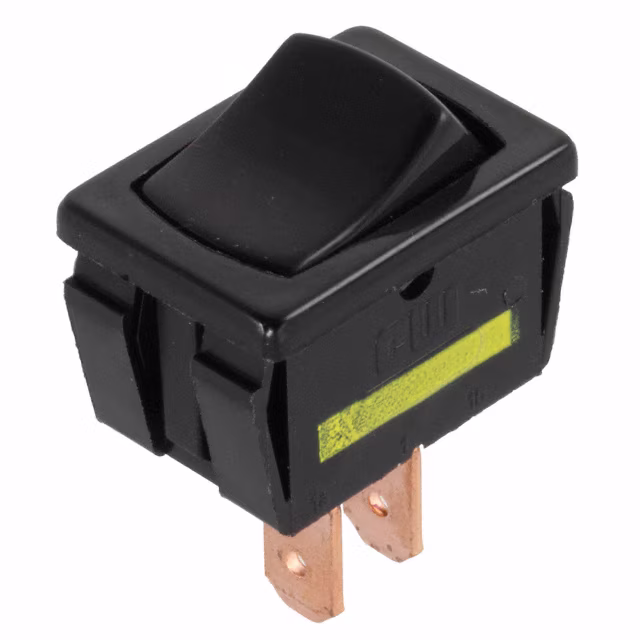

GRSV-4011B-0030SWITCH ROCKER SPST-NO 13A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 13A (AC), 5A (DC) | 125 V | 14 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
RL1222BWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | O | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1222ERCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | II, I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
