Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

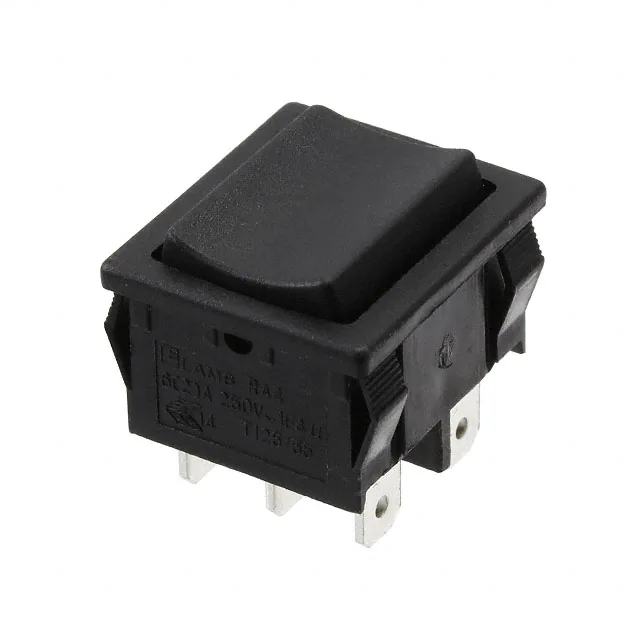

RA41631100SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|
RB141D1021-126SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | O - | Neon, Amber | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|
LRA22H2BBBNNSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
LR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.10mm x 12.90mm | -20°C ~ 65°C | CE, cULus, VDE |
|

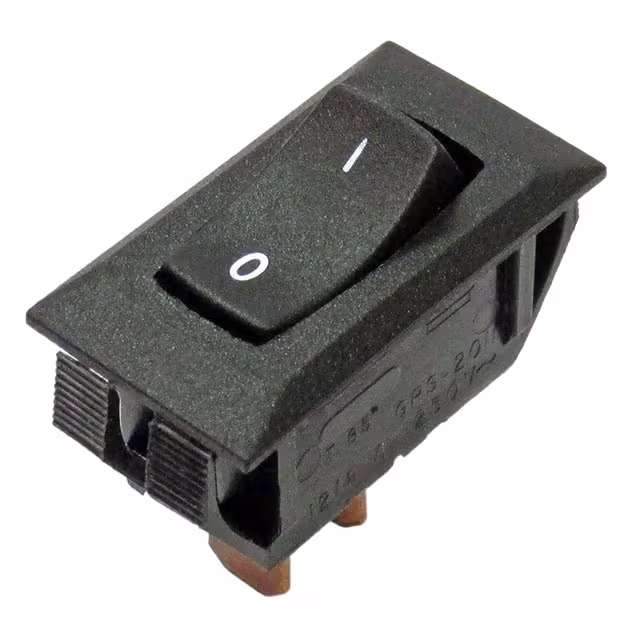

GRS-2011-2084SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
2000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.58mm x 13.97mm | -20°C ~ 105°C | - |
|
|
RB14BE1200Switches |
0 |
|
Datasheet |
RB1 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 16A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | - |
|
|
RA1122KWRSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Horizontal | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122GRLSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | Triangular Arrows | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122DWLSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122FWRSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122ALSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122CWRSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122FWLSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122KWLSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Horizontal | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122CWLSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
RA1122ARSWITCH ROCKER SPST 15A 240VAC |
0 |
|
Datasheet |
RA | Bag | Active | Panel Mount, Snap-In, Right Angle | SPST | Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP40 | - | Rectangular - 19.40mm x 13.00mm | -40°C ~ 85°C | cULus, UL |
|
|
SW-R2-1A-F-W2-5WSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | White | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
SW-R2-1A-F-W1-5WSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
R4CBLKBLKDF0SWITCH ROCKER SPDT 20A 125V |
0 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
|
RR511D1921SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RR5, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Red | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
|
|
RR534DZ07Z0700SWITCH ROCKER SPST-NO 20A 125V |
0 |
|
- |
RR5, LAMB | Bulk | Active | Through Hole | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Round | - | No Marking | - | - | PC Pin | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
