Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RL1222BRCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | O | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1222DRCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1222NWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1222CWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1222DWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RL1222EWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bag | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 12A (AC) | 125 V | - | Concave (Curved) | Black | II, I | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cURus, UL |
|
|
RR511D1123SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RR5, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
|
|
RA45EC1821SWITCH ROCKER DPST-NO 16A 125V |
0 |
|
Datasheet |
RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST-NO | Off-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Green | O - | - | - | Solder Lug | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|
|
RSC241C1021-147SWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | O - | Neon, Blue | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.20mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
|
|
RR551D1121SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RR5, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Black | O - | - | - | Solder Lug | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
|
|
RR3112ABLKBRINEFOSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | - | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|

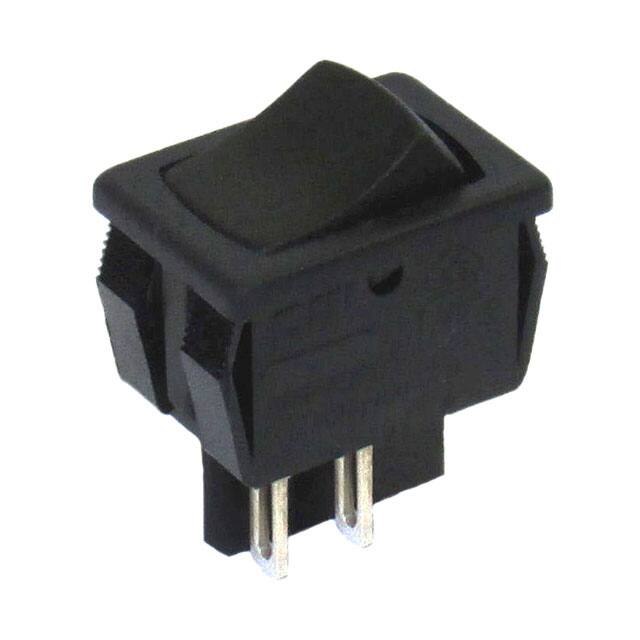

GRS-4011-0049SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 105°C | - |
|
|
SW-R2-1A-F-Y2-5WSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Amber | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
SW-R2-1A-F-B2-5WSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Blue | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
SW-R2-1A-F-R2-5WSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Red | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
SW-R2-1A-F-G2-5WSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Green | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|
|
SW-R2-1A-F-2-5WSWITCH ROCKER SPST 10A 125V |
0 |
|
Datasheet |
SW | Box | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Round | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -25°C ~ 85°C | - |
|

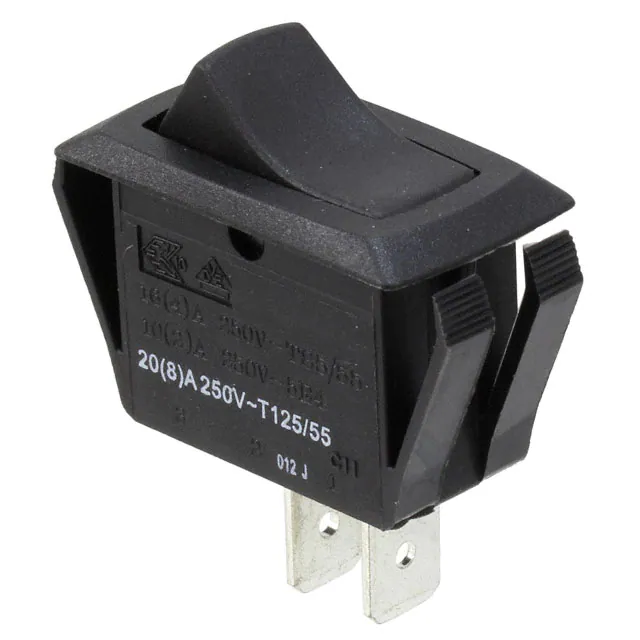

RSC441D1100SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.60mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
|
|
HB110C6NBBRSWITCH ROCKER SPST 20A 125V |
0 |
|
- |
HB | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | ON OFF, Horizontal | - | - | Quick Connect - 0.250" (6.3mm) | IP42 | Two-Tone Rocker | Rectangular - 28.60mm x 13.59mm | -20°C ~ 85°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|
|
RR551D1921SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RR5, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Round | Red | O - | - | - | Solder Lug | - | - | Circular - 20.00mm Dia | -20°C ~ 65°C | cUL, UL |
