Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLW3020-C-LC-1AMINIATURE ROCKER/ILLUMINATED/SNA |
26 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Red | No Marking | LED, Red | 1.85 VDC | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3020-F-LF-2AMINIATURE ROCKER/ILLUMINATED/SNA |
14 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SP3T | On-On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 1.85 VDC | Solder Lug | - | Jumper needed to achieve triple throw | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
MLW3012-E-SC-1AMINIATURE ROCKER/ILLUMINATED/SNA |
15 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Sculptured - Illuminated | Red | No Marking | LED, Yellow | 1.85 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3022-F-LF-2HSWITCH ROCKER DPDT 5A 125V |
14 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
MLW3022-F-SF-1ASWITCH ROCKER DPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Sculptured - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3023-E-SE-2ASWITCH ROCKER DPDT 5A 125V |
11 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Sculptured - Illuminated | Yellow | No Marking | LED, Yellow | 2 VDC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
0114660000SWITCH ROCKER SPDT 250V |
4 |
|
Datasheet |
EG | Bulk | Active | - | SPDT | On-Mom | - | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | - | - | - | -25°C ~ 85°C | - |
|
|
AML24FBA2CA05-ISWITCH ROCKER DPDT 3A 125V |
3 |
|
Datasheet |
AML24 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | Mom-On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
2TP7-8SWITCH ROCKER DPST-NC 10A 125V |
0 |
|
- |
TP | Bulk | Obsolete | Panel Mount, Flange | DPST-NC | On-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | - | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|
|
TIIM5B-1S-BL-FWSWITCH ROCKER 4PDT 15A 125V |
16 |
|
- |
TII | Bulk | Active | Panel Mount, Snap-In | 4PDT | On-Off-Mom | 15A (AC/DC) | 125 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | cUL, UL, VDE |
|
|
AML24EBA2BA02SWITCH ROCKER SPDT 100MA 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | - |
|

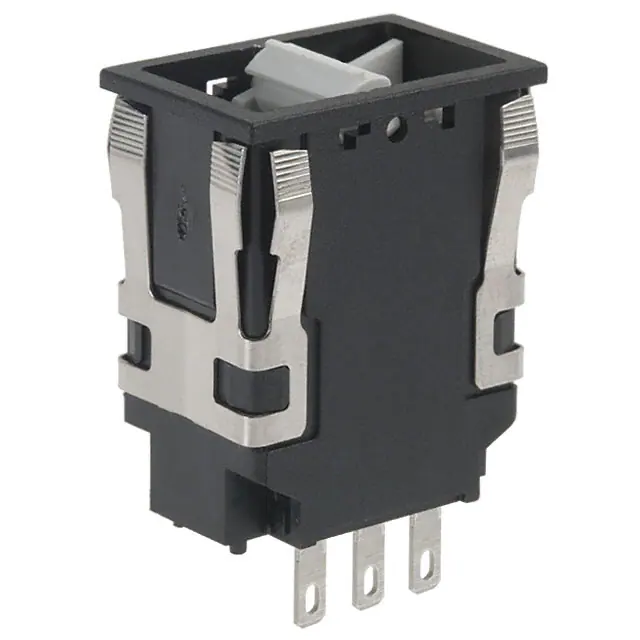

AML24EBA2BA01SWITCH ROCKER SPDT 100MA 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
AML24EBA2BA05SWITCH ROCKER SPDT 100MA 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
SW3832/USWITCH ROCKER 3PDT 30A 125V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3832/ASWITCH ROCKER 3PDT 30A 125V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3832/A/CULSWITCH ROCKER 3PDT 30A 125V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
AML24EBA2BC03SWITCH ROCKER DPDT 100MA 125V |
14 |
|
Datasheet |
AML24 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
AML26GBE2CA01GRSWITCH ROCKER DPDT 3A 125V |
0 |
|
Datasheet |
AML26 | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Red | 15 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, UL |
|
|
2TP8-6SWITCH ROCKER DPST-NO 10A 125V |
0 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Flange | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Screw Terminal | - | Sealed | Rectangular - 38.40mm x 23.90mm | -54°C ~ 71°C | CE, CSA, UKCA, UL |
|

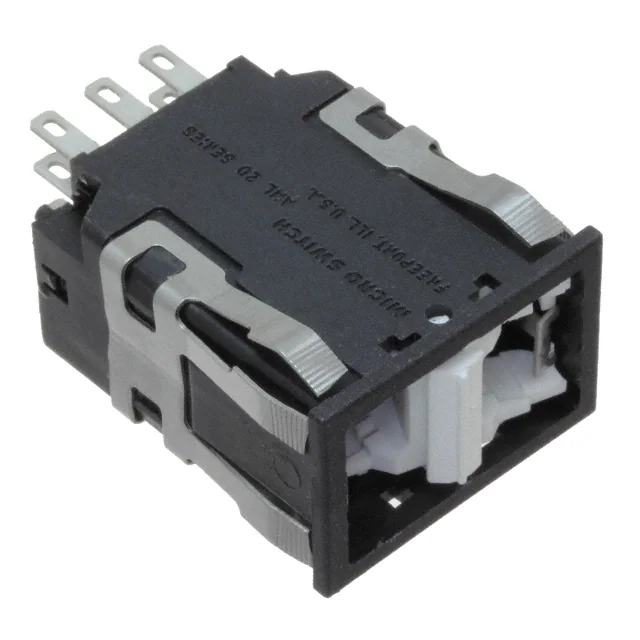

AML24GBA2AA01SWITCH ROCKER SPDT 3A 125V |
0 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
