Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

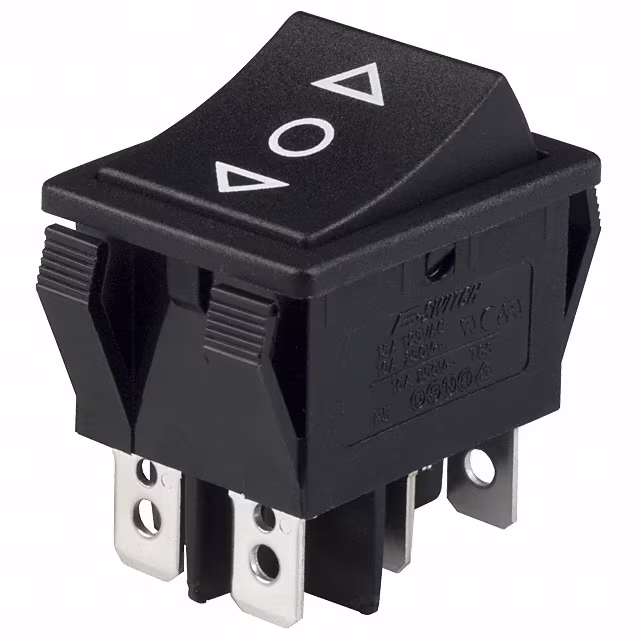

R5DBLKBLKHF0SWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | Triangular Arrows with O | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
R5IBLKBLKEF0SWITCH ROCKER DPDT 15A 125V |
0 |
|
Datasheet |
R5 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
DA102J12B215DQFSWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
DA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.187" (4.7mm) | - | Guard | Rectangular - 27.13mm x 19.20mm | -20°C ~ 85°C | cULus |
|

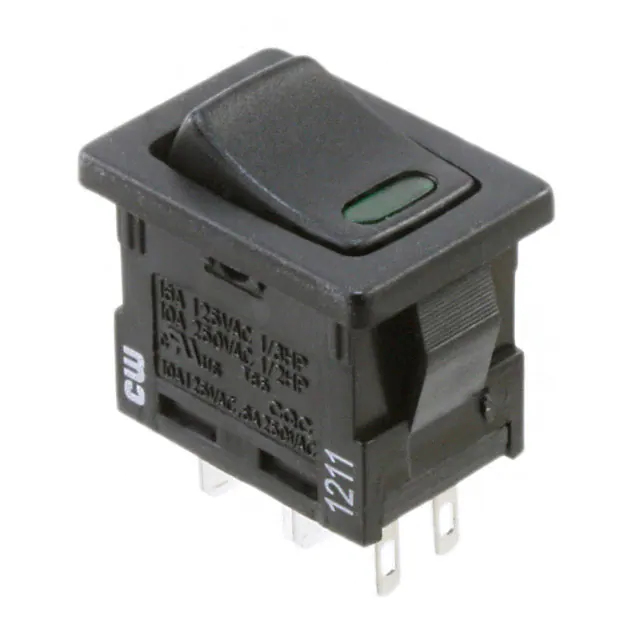

GRB066L02BBGGL1SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
GRB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC), 20A (DC) | 125 V | 12 V | Concave (Curved) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 13.00mm | -20°C ~ 85°C | - |
|

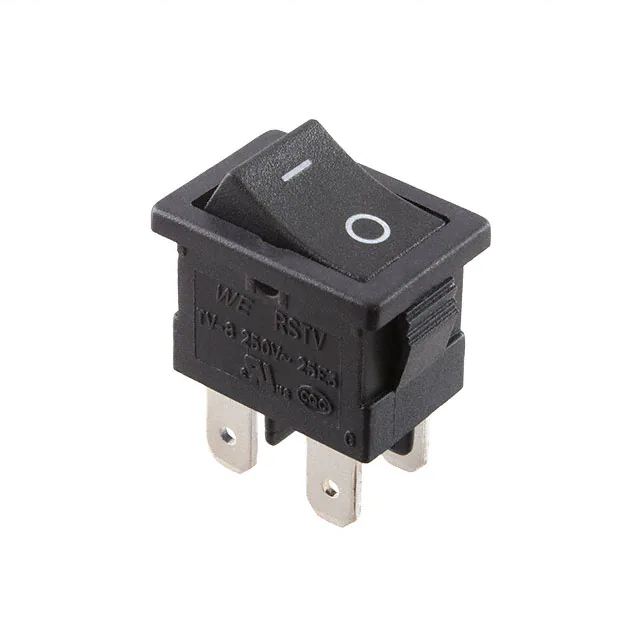

471016264143SWITCH ROCKER DPST 16A 250V |
0 |
|
Datasheet |
WS-RSTV | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | 0°C ~ 85°C | CQC, ENEC, UL |
|
C1350ARBR-602AWSWITCH ROCKER DPST-NO 20A 250V |
0 |
|
Datasheet |
1350 | Bulk | Active | Panel Mount, Snap-In | DPST-NO | On-Off | 20A (AC/DC) | 250 V | 24 V | Concave (Curved) | Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 28.50mm x 25.40mm | - | CSA, UL |
|

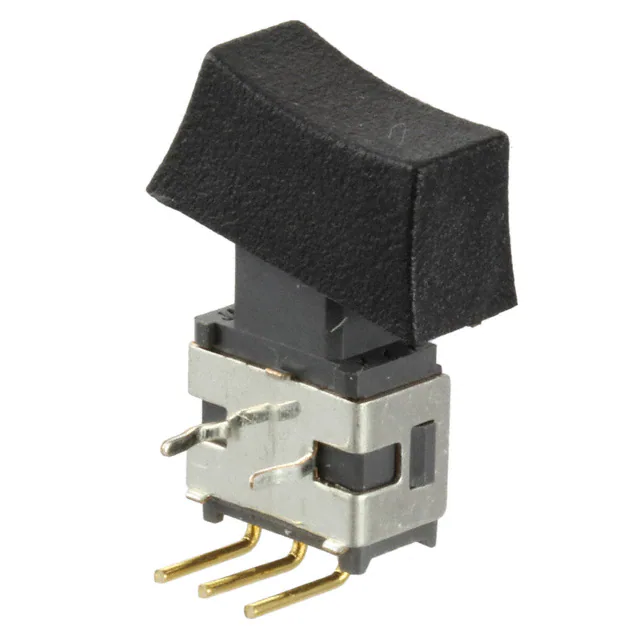

A12K1H-DASWITCH ROCKER SPDT 0.4VA 28V |
0 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|
|
CRSL1A125V1M9SWITCH ROCKER SPST 20A 125V |
21 |
|
Datasheet |
CRSL | Bulk | Active | Panel Mount, Snap-In | SPST | Off-On | 20A (AC), 14A (DC) | 125 V | 14 V | Concave (Curved) - Illuminated | Red | - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.43mm x 12.19mm | - | CSA, UL, VDE |
|
ET01J1V3BE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
ET | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
ET02J1CBE2SWITCH ROCKER SPST 0.4VA 20V |
0 |
|
Datasheet |
ET | Tray | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
E101J2V21BE2SWITCH ROCKER SPDT 0.4VA 20V |
0 |
|
Datasheet |
E | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
AML24EBA2AC01SWITCH ROCKER DPDT 3A 125V |
1 |
|
Datasheet |
AML24 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - | CSA, CE, UL, VDE |
|
|
R5 SEAL ASSEMBLYSWITCH ROCKER CUSTOM |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SW-R2-4B-S-1-1SWITCH ROCKER DPDT 10A 125V |
0 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC) | 125 V | - | Concave (Curved) | Black | OFF ON, Vertical | - | - | Quick Connect - 0.110" (2.8mm) | - | - | - | -25°C ~ 85°C | - |
|
GRS-4011-0012SWITCH ROCKER SPST 16A 125V |
0 |
|
Datasheet |
4000 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | - | - |
|
|
R1966ABLKBLKIPSWITCH ROCKER SPST 15A 125V |
0 |
|
Datasheet |
R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | PC Pin | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
|
RL1122CWCSWITCH ROCKER SPST 12A 125V |
0 |
|
Datasheet |
RL | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 12A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.25mm x 6.75mm | -40°C ~ 105°C | cULus |
|
SW-R1-3C-E-1-2SWITCH ROCKER DPST 20A 125V |
24 |
|
Datasheet |
SW | Bag | Active | Panel Mount, Snap-In | DPST | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -25°C ~ 85°C | - |
|

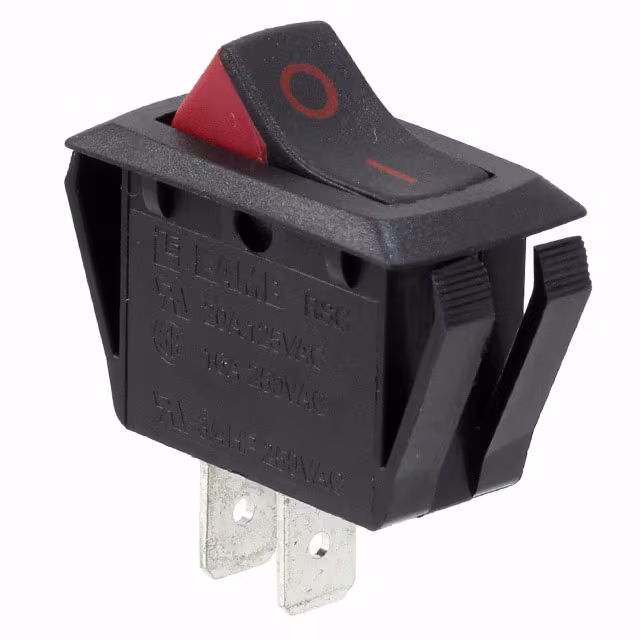

RSC341D1A81SWITCH ROCKER SPST 20A 125V |
0 |
|
Datasheet |
RSC, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 27.20mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|
R4HBLKBLKAF0SWITCH ROCKER SPST-NC 20A 125V |
14 |
|
Datasheet |
R4 | Bulk | Active | Panel Mount, Snap-In | SPST-NC | On-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
