Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7411J3V4BE2SWITCH ROCKER DP3T 0.4VA 20V |
0 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | DP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
M2044TNW01SWITCH ROCKER DP3T 6A 125V |
11 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
WR13BLSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Ivory | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
WR13AL/CULSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
M2044TNW03SWITCH ROCKER DP3T 6A 125V |
8 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
M2044TNW01-DASWITCH ROCKER DP3T 6A 125V |
11 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2044TNW01-DBSWITCH ROCKER DP3T 6A 125V |
11 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2044TNW01-DHSWITCH ROCKER DP3T 6A 125V |
11 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Gray | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
M2044TNW01-FASWITCH ROCKER DP3T 6A 125V |
11 |
|
Datasheet |
M | Box | Obsolete | Panel Mount, Flange | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Jumper needed to achieve triple throw | Rectangular - 12.70mm x 12.40mm | -30°C ~ 85°C | CSA, UL |
|
|
M2044TNW03-DASWITCH ROCKER DP3T 6A 125V |
0 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount, Flange | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|
|
V4D2GXXB-FA9CUG-100-XFWP1SWITCH ROCKER |
29 |
|
Datasheet |
Contura® V | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
M2026TXA25SWITCH ROCKER SP3T 6A 125V |
13 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|

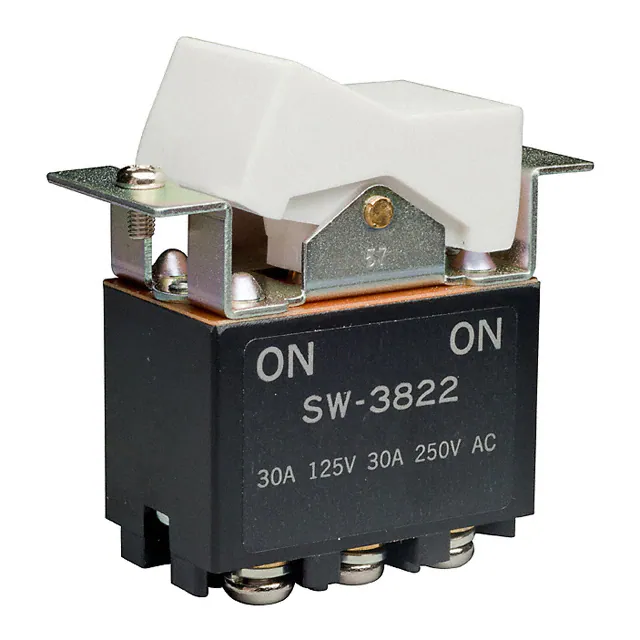

SW3822/USWITCH ROCKER DPDT 30A 125V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3822/CULSWITCH ROCKER DPDT 30A 125V |
0 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
WR15AL/CULSWITCH ROCKER SPDT 15A 125V |
0 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
|
M2026TXA25-DASWITCH ROCKER SP3T 6A 125V |
13 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | SP3T | Mom-On-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | CSA, UL |
|
|
MLW3012-F-LB-1ASWITCH ROCKER SPDT 5A 125V |
14 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3012-F-LF-1ASWITCH ROCKER SPDT 5A 125V |
0 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | LED, Green | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3013-C-LC-1AMINIATURE ROCKER/ILLUMINATED/SNA |
26 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Red | No Marking | LED, Red | 1.85 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3012-C-SC-1AMINIATURE ROCKER/ILLUMINATED/SNA |
17 |
|
Datasheet |
MLW | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Sculptured - Illuminated | Red | No Marking | LED, Red | 1.85 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
